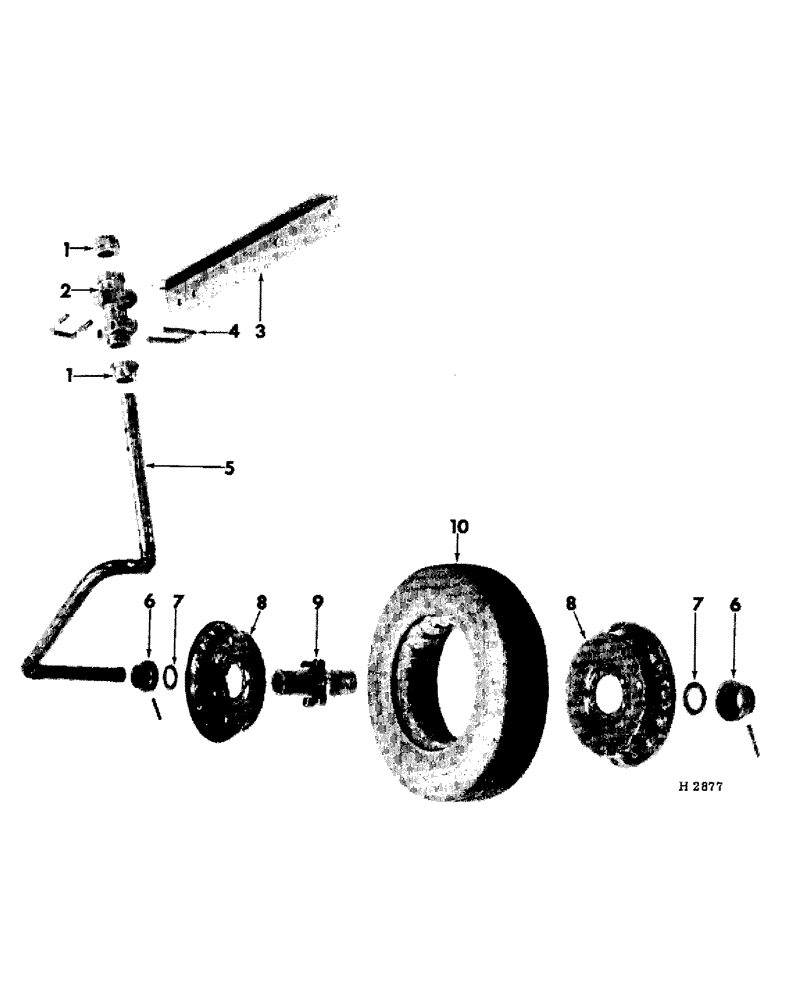

Запчасти Case IH 7 (05-13) - SEMI-PNEUMATIC CASTER WHEELS - SPECIAL

1

45M

COLLAR

caster wheel axle

4шт.

1/2 X 3/4" CUP-PT. SQ-HD. SET SCREW

4шт.

2

602455R1

BRACKET

caster wheel

2шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

602526R1

ANGLE, transport extension lt.

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

602527R1

ANGLE, transport extension rt.

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

4

602467R1

BOLT

"U" BOLT

4шт.

1/2" HEX. NUT

8шт.

1/2" LOCK WASHER

8шт.

5

602524R1

AXLE, caster wheel

2шт.

6

602525R1

COLLAR

axle washer

4шт.

1/4 X 2" ROLL PIN

4шт.

7

Q3484

WASHER

1-9/32 x 1-7/8 x 16 ga.

4шт.

8

602542R1

DISK, wheel (Optional w/602543R1, in pairs only)

4шт.

3/8 X 5/8" CAD-PLTD. MACH. BOLT W/NUT

8шт.

3/8" CAD-PLTD. LOCK WASHER

8шт.

8

602543R1

DISK, wheel (Optional w/602542R1, in pairs only)

4шт.

1/4 X 5/8" CAD-PLTD. MACH. BOLT W/NUT

8шт.

1/4" CAD-PLTD. LOCK WASHER

8шт.

9

602551R1

HUB, caster wheel

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8" - 30 DEGREE LUBRICATION FITTING

2шт.

1/4 X 1-1/2" CAD-PLTD. MACH. BOLT W/NUT

12шт.

1/4" CAD-PLTD. LOCK WASHER

12шт.

10

16 X 4.00 ZERO PRESSURE TIRE (Dealer to order from Hamilton Works)

1шт.
