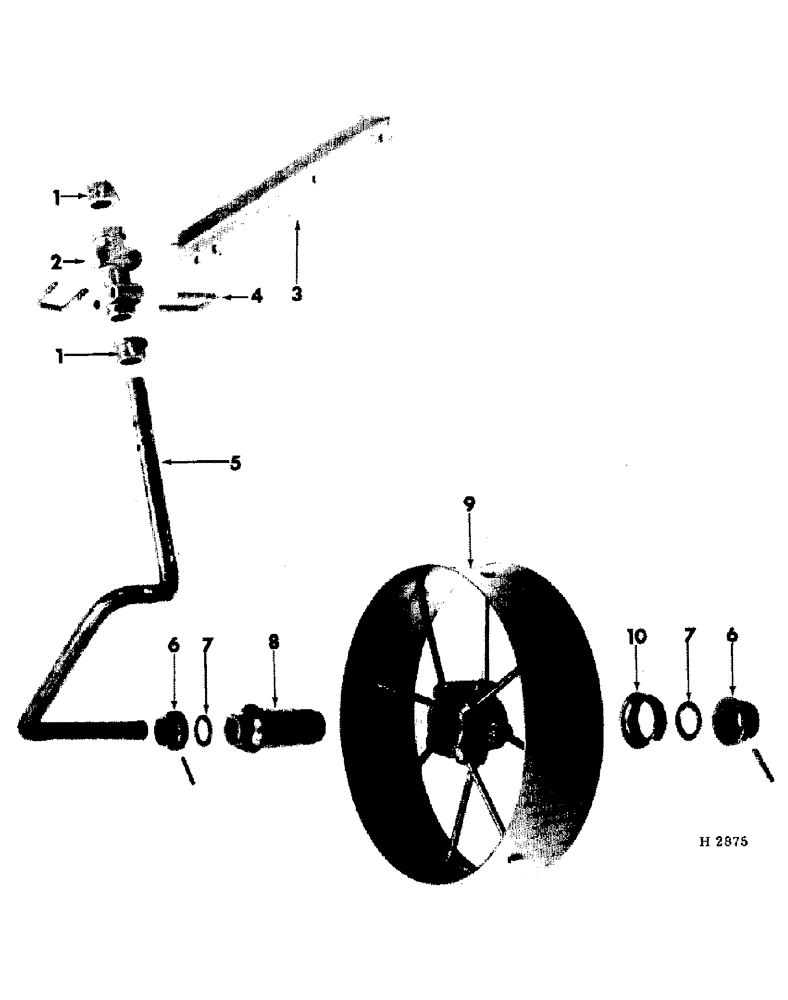

Запчасти Case IH 7 (05-12) - STEEL REAR CASTER WHEELS

1

45M

COLLAR

axle (4-"A") (2-"B")

1шт.

1/2 X 3/4" CUP-PT. SQ-HD. SET SCREW (4-"A") (2-"B")

1шт.

2

602455R1

BRACKET

caster wheel

2шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

602526R1

ANGLE, transport extension lt. ("A")

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

602527R1

ANGLE, transport extension rt. ("A")

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

4

602467R1

BOLT

"U" BOLT

4шт.

1/2" HEX. NUT

8шт.

1/2" LOCK WASHER

8шт.

5

602524R1

AXLE, caster wheel

2шт.

6

602525R1

COLLAR

axle washer

4шт.

1/4 X 2" ROLL PIN

4шт.

7

Q3484

WASHER

1-9/32 x 1-7/8 x 16 ga.

4шт.

8

602523R1

BOX

caster wheel

2шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

600347R92

WHEEL ASSEMBLY, caster ("A")

2шт.

9

602532R91

WHEEL ASSEMBLY, caster ("B")

4шт.

602531R1

PIN

3/8 X 1-3/4" SPECIAL PIN

2шт.

10

8642

NUT, lock

2шт.
