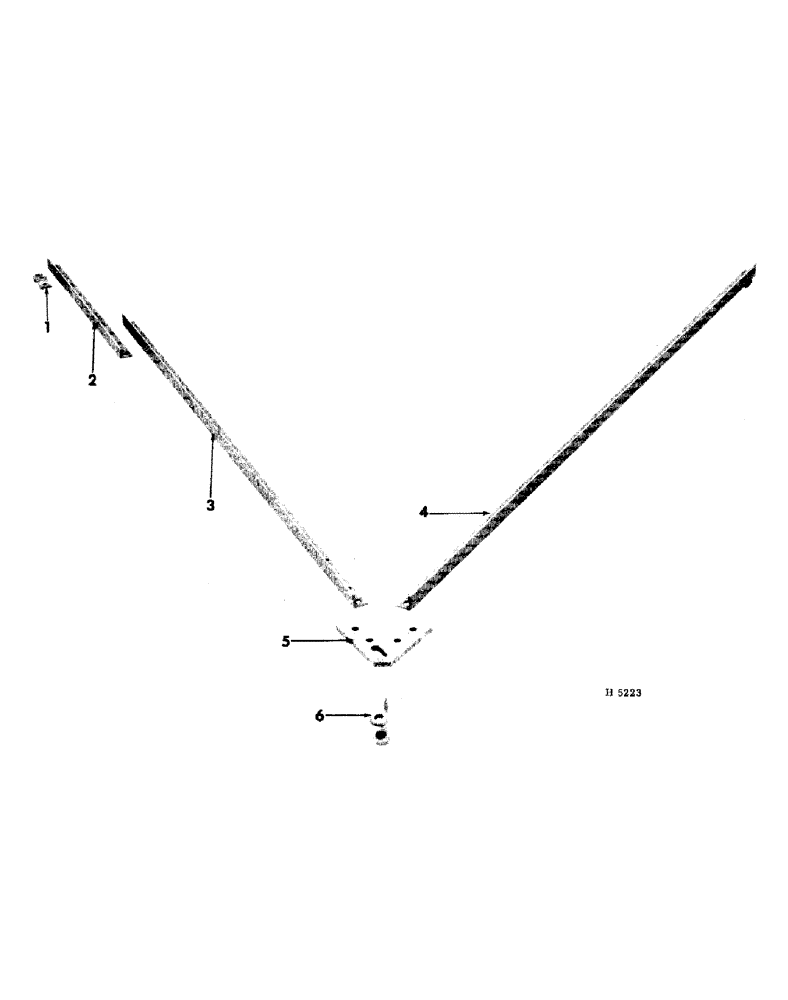

Запчасти Case IH 7 (05-11) - SINGLE MACHINE HITCH

1

L13565

HAMMERSTRAP

2шт.

3/8 X 1" OVAL-HD. RIVET

4шт.

2

L13633

ANGLE ASSEMBLY, hitch short right

1шт.

7/16 X 1-1/8" MACH. BOLT W/NUT

2шт.

7/16" LOCK WASHER

2шт.

1/2 X 2-1/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

3

605616R1

ANGLE, hitch right, 10 ft.

1шт.

3

602534R1

ANGLE, hitch right, 12 ft.

1шт.

3

602536R1

ANGLE, hitch right, 14 ft.

1шт.

4

605615R11

ANGLE ASSEMBLY, hitch left, 10 ft.

1шт.

1/2 X 2-1/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

4

602533R11

ANGLE ASSEMBLY, hitch left, 12 ft.

1шт.

1/2 X 2-1/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

4

602535R11

ANGLE ASSEMBLY, hitch left, 14 ft.

1шт.

1/2 X 2-1/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

5

605614R1

PLATE, clevis

1шт.

5/8 X 1-3/4" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

6

SA3203

CLEVIS, main draw

1шт.

N42375

PIN

3/4 X 3-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/4" COTTER PIN

1шт.
