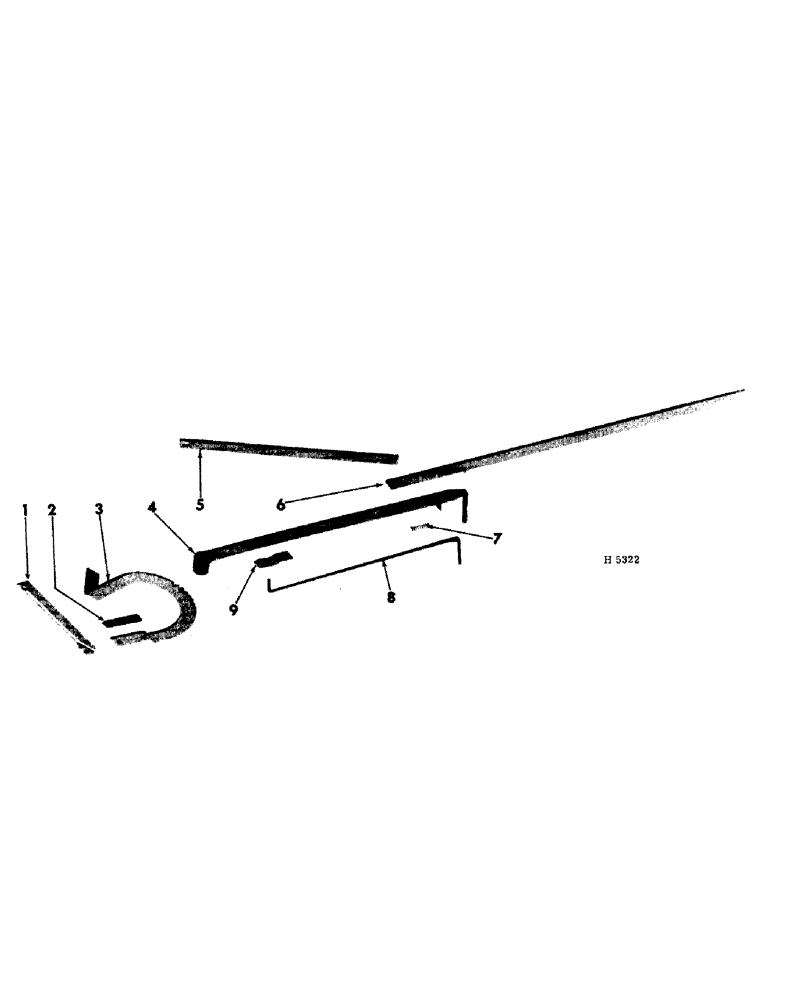

Запчасти Case IH 7 (05-10) - HAND LIFT LEVER ATTACHMENT

1

605619R11

SUPPORT ASSEMBLY, quadrant (10 ft.)

1шт.

5/8 X 1-3/8" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

1/2 X 2" MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

2

556973R1

STRAP, flat (12 & 14 ft.)

1шт.

1/2 X 2-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

605622R1

QUADRANT

1шт.

1/2 X 2-1/4" MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

4

605620R11

LEVER ASSEMBLY

1шт.

5

605623R1

BRACE, lever

1шт.

5/8 X 2" MACH. BOLT W/NUT

1шт.

5/8" LOCK WASHER

1шт.

6

603035R1

EXTENSION, lever

1шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

1шт.

7/16 X 1-5/8" MACH. BOLT W/NUT

1шт.

7/16" LOCK WASHER

2шт.

7

RP5232

SPRING, lever plunger

1шт.

591028R1

PLUNGER, lever

1шт.

W6652

WASHER

15/32 X 1 X 16 GA. WASHER

3шт.

3/16 X 7/8" COTTER PIN

2шт.

9

590564R1

HAMMER, strap lever

1шт.

3/8 X 1" TRUSS-HD. RIVET

2шт.
