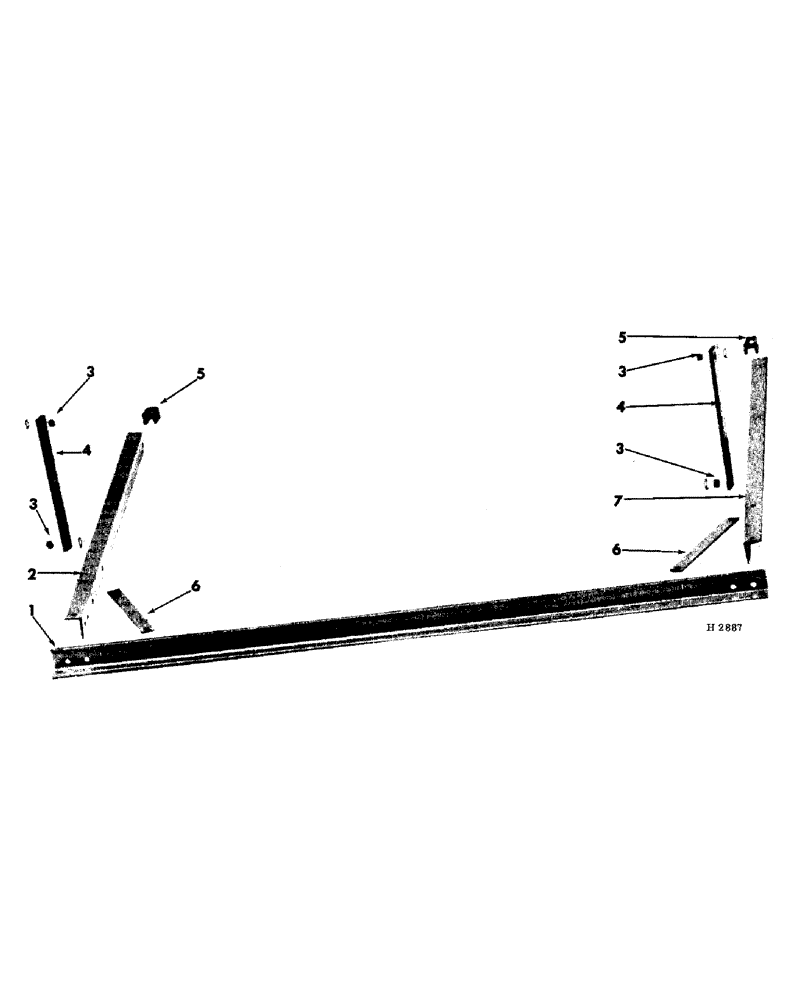

Запчасти Case IH 7 (05-09) - TRANSPORT ANGLES

1

602493R1

ANGLE, rear transport (12, 14 ft.)

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

1

605570R1

ANGLE, rear transport (10 ft.)

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

2

605617R1

ANGLE, transport left (1960-62)

1шт.

2

602491R1

ANGLE, transport left (1962-)

1шт.

3

602506R1

BUSHING, connecting link

4шт.

4

602477R2

LINK, connecting

2шт.

5/8 X 1-3/4" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

21/32 X 1-1/4 X 16 GA. WASHER

4шт.

5

F14367

EAR, draw

2шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

Q1176

HEADED PIN,5/8" x 2 3/16"

5/8 X 2-3/16" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/8" COTTER PIN

2шт.

6

602472R1

BRACE, transport frame

2шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

7

605618R1

ANGLE, transport right (1960-62)

1шт.

7

602492R1

ANGLE, transport right (1962-)

1шт.
