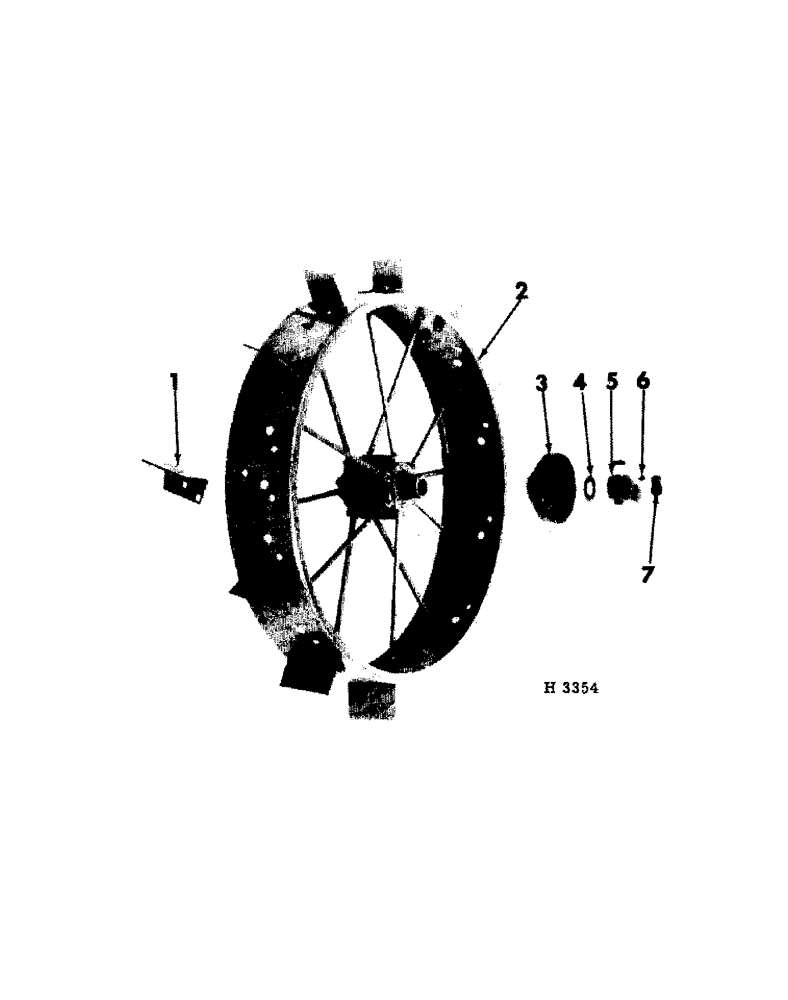

Запчасти Case IH 7 (05-07) - STEEL MAIN WHEELS

1

L13110

DRAG LINK

LUG, angle

24шт.

7/16 X 1" MACH. BOLT W/NUT

48шт.

7/16" LOCK WASHER

48шт.

2

603015R91

WHEEL ASSEMBLY, steel (32 x 6)

2шт.

NLS

NO LONGER SERVICED

1/8 - 30 DEGREE LUBRICATION FITTING

2шт.

3

603014R1

CLUTCH

wheel

2шт.

4

603044R1

THRUST WASHER

1-9/32 x 2-1/2 x 16 ga.

2шт.

5

603040R21

CARRIER

ratchet assembly

2шт.

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 SQ. X 1-1/2" PARALLEL KEY

2шт.

7/16 X 1" CUP-PT. SET SCREW

4шт.

272120

CONNECTING LINK

7/16" JAM NUT

4шт.

6

11-A

SPRING

ratchet carrier

2шт.

7

602683R1

PAWL

DOG, trip

2шт.
