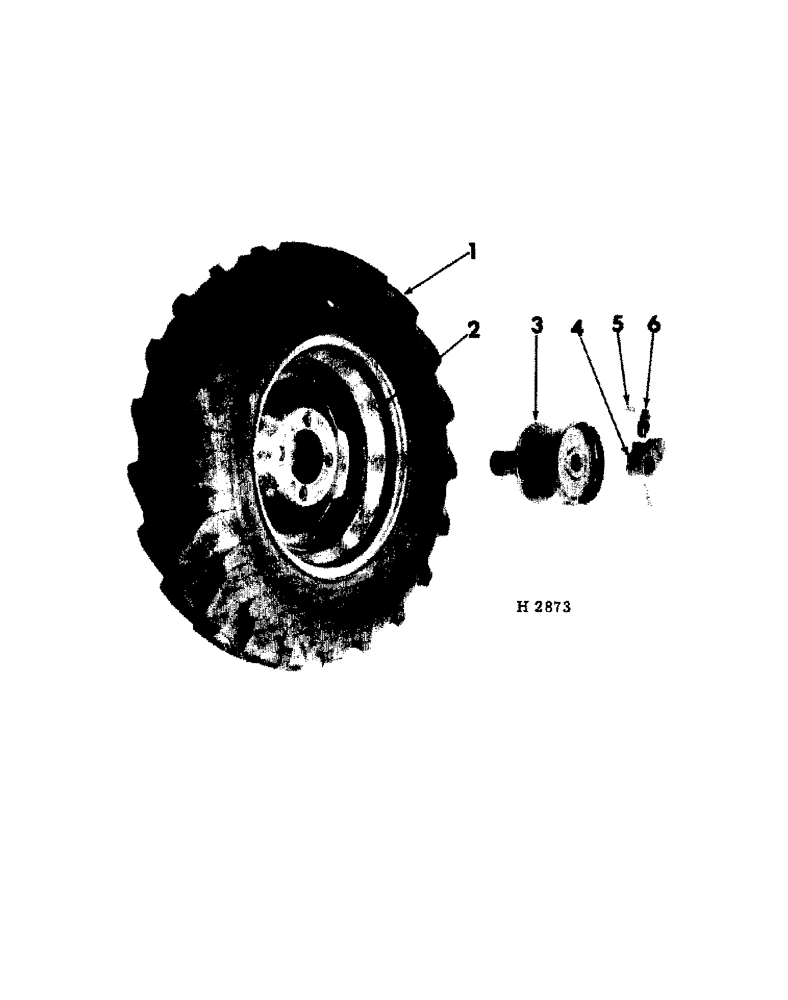

Запчасти Case IH 7 (05-07[A]) - PNEUMATIC MAIN WHEELS

1

TIRE, pneumatic 6.70 x 15, 4 ply I-2 tread

2шт.

1

TUBE, pneumatic 6.70 x 15 w/15 CW valve

2шт.

2

455169R92

WHEEL

DISK AND RIM ASSEMBLY

2шт.

3

602521R2

HUB, wheel

2шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

181430

BOLT,Hex, 1/2" - 20 x 1 3/8", Gr 5

1/2-20 NF X 1-3/8" HEX-HD. CAP SCREW

8шт.

U18588

NUT

1/2-20 NF HEX. NUT

8шт.

4

603040R21

CARRIER

ASSEMBLY, ratchet

2шт.

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8" SQ. X 1-1/2" PARALLEL KEY

2шт.

603044R1

THRUST WASHER

1-9/32 X 2-1/2 X 16 GA. WASHER

2шт.

7/16 X 1" CUP-POINT SET SCREW

4шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16" JAM NUT

4шт.

5

11-A

SPRING

ratchet carrier

2шт.

6

6C2683R1

DOG, trip

2шт.
