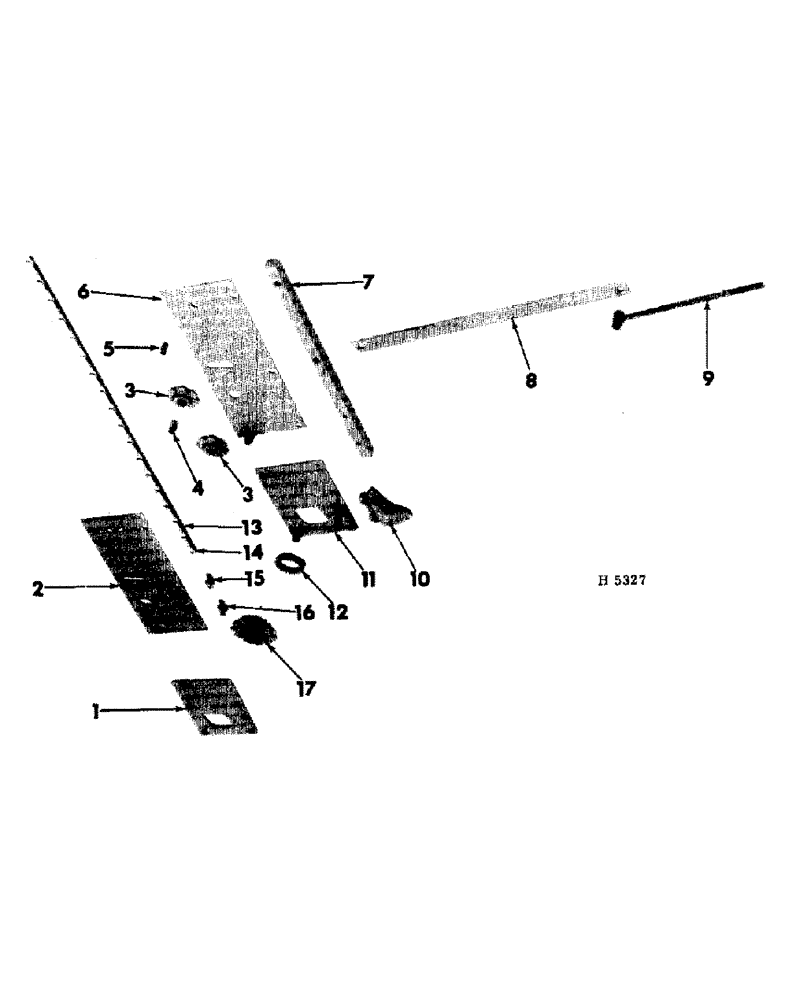

Запчасти Case IH 7 (05-06) - CENTER BOOT
№
Артикул
Название
Примечание
Количество
1
605239R11
PLATE, boot side lower right
1шт.
605264R1
SCREW
3/8 X 3/4" BUTTON HEAD CAP SCREW
2шт.
605263R1
SCREW
3/8 X 5/8" BUTTON HEAD CAP SCREW
1шт.
93-41039
LOCK WASHER,Ext Tooth, 3/8"
3/8" SPECIAL LOCK WASHER
3шт.
602700R1
SCREW
7/16 X 1-1/4" FLT-HD. SOCKET CAP SCREW
1шт.
605275R1
HEX SOC SCREW,Flat Hd, 7/16"-14 x 1 3/8"
7/16 X 1-3/4" FLT-HD. SOCKET CAP SCREW
2шт.
114619
7/16" SPECIAL LOCK WASHER
3шт.
2
605582R1
PLATE, boot side upper right
2шт.
3/8 X 2-3/4" MACH. BOLT W/NUT
1шт.
3/8" LOCK WASHER
1шт.
1/2 X 2-1/2" MACH. BOLT W/NUT
1шт.
1/2" LOCK WASHER
1шт.
3
602453R2
SPROCKET ASSY.
SPROCKET, chain tightener (7T)
2шт.
4
605252R1
BUSHING
SPACER, boot
1шт.
5
2437P
SPACER,3/8" Pipe x 1 156"
upper bolt
1шт.
6
605595R91
PLATE, upper boot side left
1шт.
605587R1
7/8 X 1-7/8" STD-HD. DLD. PIN (Case hardened)
1шт.
1/4 X 2" COTTER PIN
1шт.
1/2 X 2-3/4" MACH. BOLT W/NUT
1шт.
1/2" LOCK WASHER
1шт.
17/32 X 1-1/4 X 16 GA. WASHER
2шт.
7
605565R1
BAR, boot
1шт.
8
602696R1
BRACE, boot
2шт.
1/2 X 2" MAC. BOLT W/NUT
1шт.
1/2 X 3-1/8" MACH. BOLT W/NUT
1шт.
1/2" LOCK WASHER
2шт.
9
605550R11
ROD, boot tie
1шт.
1/2" HEX. JAM NUT
2шт.
10
605199R1
NOSE, boot
1шт.
11
605238R11
PLATE, boot side lower left
1шт.
605264R1
SCREW
3/8 X 3/4" BUTTON HEAD CAP SCREW
2шт.
605263R1
SCREW
3/8 X 5/8" BUTTON HEAD CAP SCREW
1шт.
93-41039
LOCK WASHER,Ext Tooth, 3/8"
3/8" SPECIAL LOCK WASHER
3шт.
12
602684R1
HUB
BUSHING, boot sprocket
2шт.
13
CHAIN ASSEMBLY, boot drive, 1-1/4" extended pitch rollerless type (Consists of 61 links) (For an assembled chain order 1 - 605972R91 10 ft. length of chain reduce to 57 links and add 3 - 602803R91 off-set link and 1 - 602804R91 connecting link)
1шт.
14
602802R91
LINK, regular rollerless chain
57шт.
15
602803R91
LINK, offset rollerless chain
3шт.
15
602804R91
LINK, connecting rollerless chain
1шт.
17
602459R2
SPROCKET ASSY.
SPROCKET, boot (11T)
1шт.
Выбрано товаров: 39
