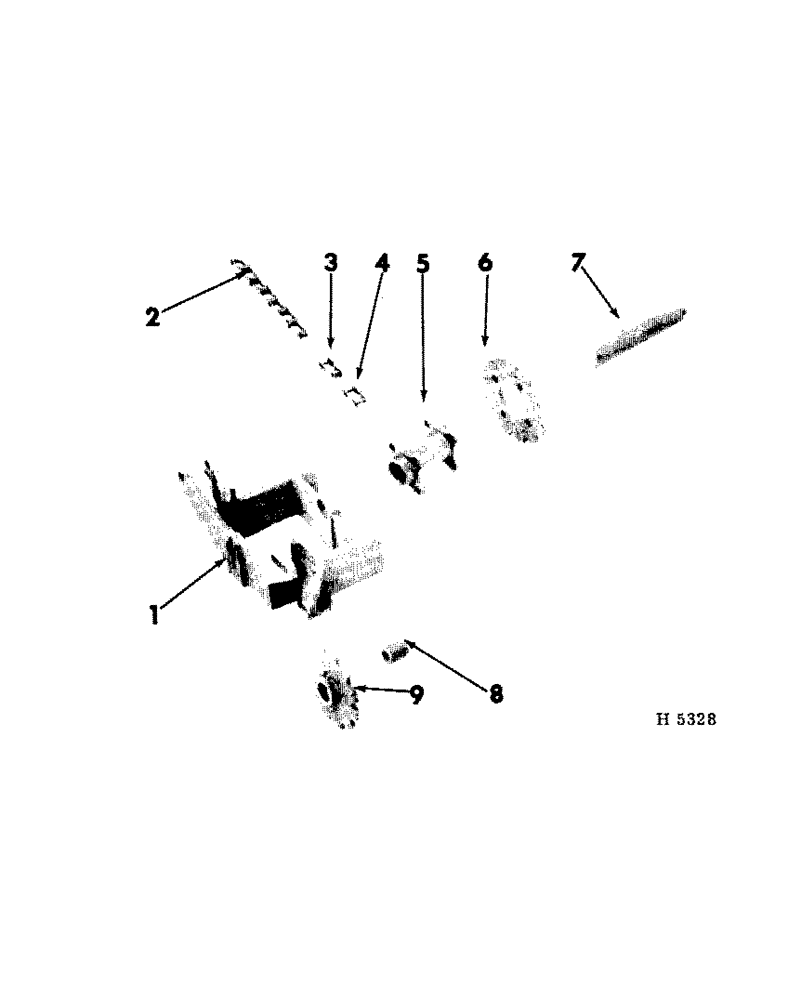

Запчасти Case IH 7 (05-05) - JACKSHAFT WITH PLAIN BEARINGS

1

605602R1

SUPPORT

jackshaft

1шт.

7/16 X 1-1/8" MACH. BOLT W/NUT

4шт.

7/16" LOCK WASHER

4шт.

2

CHAIN ASSEMBLY, main drive (Steel wheel) 1-1/4" extended pitch roller type (Consists of 92 links) (For an assembled chain order 1 - 569089R91 10 ft. length of chain reduce to 89 links and add 2 - 456929R91 off-set links and 1 - 456980R91 connecting link)

1шт.

CHAIN ASSEMBLY, main drive (Pneumatic wheel) 1-1/4" extended pitch roller type (Consists of 95 links) (For an assembled chain order 1 - 569089R91 10 ft. length of chain reduce to 91 links and add 3 - 456929R91 off-set links and 1 - 456980R91 connecting link)

1шт.

3

456929R91

CHAIN LINK

OFFSET LINK ASSEMBLY

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

PIN, cotter (1/4 lb. pkg.)

1шт.

4

456980R91

CHAIN LINK

CONNECTING LINK ASSEMBLY

1шт.

1751D

PACKAGE

PIN, cotter (1/4 lb. pkg.)

1шт.

5

HUB AND SPROCKET, 13 T (1960-61) (Furnish 1 - 606240R1 - hub and 1 - 605197R1 - sprocket)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

606240R1

HUB, 13T (1961-)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

605197R1

SPROCKET ASSY.

SPROCKET, boot drive

2шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

8шт.

7/16" LOCK WASHER

8шт.

7

605608R1

JACKSHAFT

1шт.

1/4 X 1-1/2" MACH. BOLT W/NUT

8шт.

1-5/32 X 1-3/4 X 16 GA. WASHER

2шт.

8

605607R1

BUSHING, idler sprocket

2шт.

9

605603R1

SPROCKET, drive frame idler

2шт.

273354

SHEAVE

3/16" STRAIGHT LUBRICATION FITTING

2шт.

1/2 X 2-7/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

17/32 X 1-1/4 X 16 GAUGE WASHER

2шт.
