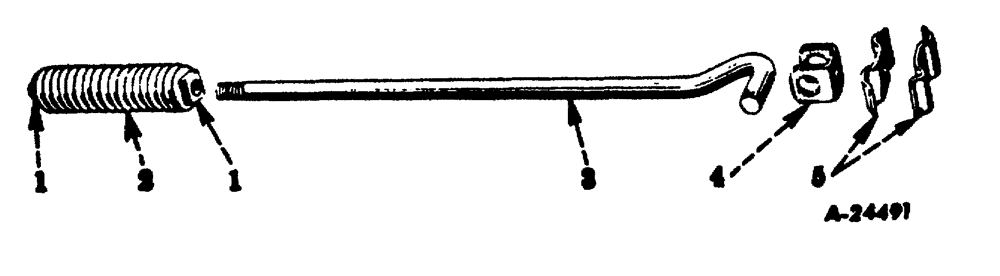

Запчасти Case IH 660 (AF-06) - HYDRAULIC HOSE SUPPORT, FLEXIBLE

956815R91

SUPPORT, flexible hose, complete

1шт.

1

520201R1

PLUG, spring

2шт.

2

515031R1

SPRING

hose support

1шт.

17907R1

BOLT, 5/8 x 6-1/2 mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

515028R1

ROD

hose support

1шт.

13094R1

3/16" x 1 1/4" 3/16" x 1 1/4"

1шт.

4

515029R1

BRACKET

hose clamp

1шт.

5

515030R1

CLAMP

hose

2шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

1шт.

K92

NUT

3/8 wing

1шт.
