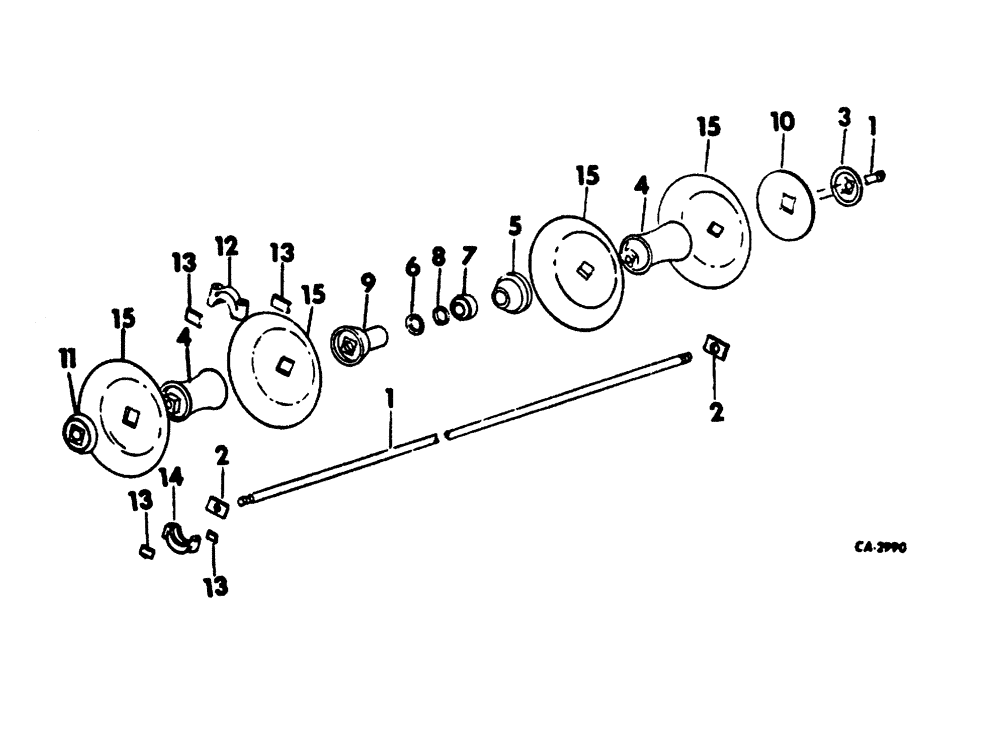

Запчасти Case IH 660 (AF-05) - DISK GANGS

1

960339R1

BOLT, 5-blade gang, 4 for unit C

1шт.

1

960901R1

BOLT, 6-blade gang, 4 for unit A, 2 for unit C

1шт.

1

960986R1

BOLT, 7-blade gang, 4 for unit B

1шт.

963933R1

NUT, 1-3/4 x 5 UNC 2B, 2 per gang bolt

1шт.

2

961604R1

PLATE, lock, 2 per gang bolt

1шт.

3

960981R1

WASHER, female gang bolt, 1 per gang bolt

1шт.

4

960985R1

SPOOL, spacer, 12 for unit A, 16 for unit B, 14 for unit C

1шт.

5

960983R1

FLANGE, brg, 8 for units A and B, 12 for unit C

1шт.

6

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

trash, 2 per brg

1шт.

7

958251R91

BEARING ASSY,69.85mm ID x 109.07mm OD x 39.69mm W

disk axle w/seals, 8 for units A and B, 12 for unit C

1шт.

8

961920R1

SPACER

2 per brg

1шт.

9

960984R1

SPOOL, brg, 1 per brg

1шт.

10

960584R1

SHIM, w/14 in. blades, 20 for unit A, 24 for unit B, 26 for unit C, w/5/16 in. blades, 12 for units A and B, 18 for unit C

1шт.

11

960982R1

WASHER, male gang bolt, 1 per gang bolt

1шт.

12

961902R1

CAP

CLAMP, upper brg mtg, 1 per brg

1шт.

13

961966R2

STRIP

PAD, brg mtg, 4 per brg

1шт.

14

961903R1

CLAMP

lower brg mtg, 1 per brg

1шт.

960930R1

SCREW, 1 x 8-1/2 cap, type 5, 2 per brg

1шт.

220083

NUT,1"-8, G5

1 per cap screw

1шт.

121321

WASHER, lock, 1 per cap screw

1шт.

15

961706R1

BLADE, 28 x 1/4 notched disk, 24 for unit A, 28 for unit B, 32 for unit C

1шт.

15

24979R1

BLADE, 30 x 1/4 notched disk, 24 for unit A, 28 for unit B, 32 for unit C

1шт.

15

24972R1

BLADE, 30 x 5/16 notched disk, 24 for unit A, 28 for unit B, 32 for unit C

1шт.

FOOTNOTE

1шт.

wrong picture - doesn't match part descriptions

1шт.
