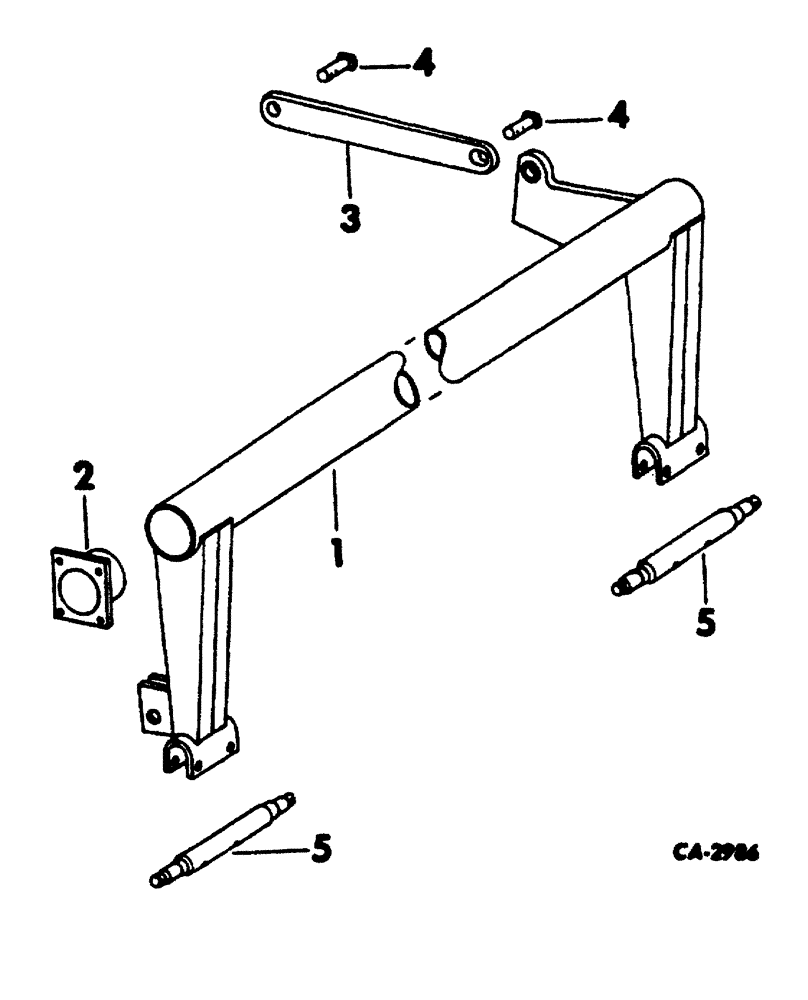

Запчасти Case IH 660 (AF-04) - ROCKSHAFT

1

953906R91

ROCKSHAFT

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

957092R1

PIVOT, rockshaft

2шт.

17476R1

BOLT, 3/4 x 1-1/2 mach

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

3

953909R1

LINK, transport

1шт.

4

959945R93

PIN

link attaching

2шт.

517843R1

COTTER PIN

PIN, qa

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

5

950788R1

SPINDLE, dual

2шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2 x 4 cap, type 5

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
