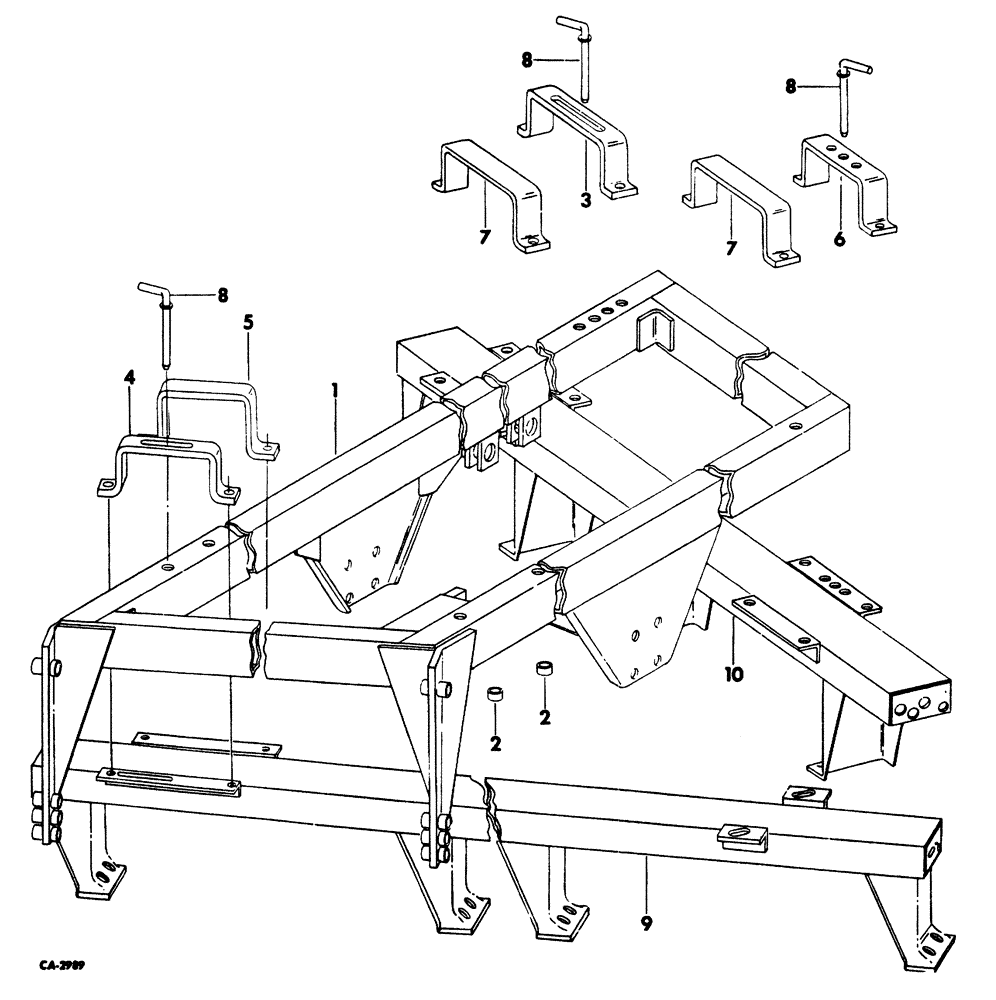

Запчасти Case IH 660 (AF-03) - CARRIER AND GANG FRAMES

1

953388R92

FRAME, carrier

1шт.

2

951673R1

SPACER

2шт.

17985R1

BOLT (SPREADER)

BOLT, 7/8 x 8-1/2 mach. pivot bolts

2шт.

103347

WASHER

15/16 x 1-3/4 x 10 ga

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

4шт.

3

951500R1

STRAP, rear gang, rt rear

1шт.

4

951501R1

STRAP, front gang, rt front

1шт.

5

957016R1

STRAP, front gang, rt rear

1шт.

6

951502R1

STRAP, rear gang, left rear

1шт.

7

951503R1

STRAP, rear gang, left & rt front

1шт.

17553R1

BOLT (SPREADER)

BOLT, 3/4 x 2-1/4 mach

12шт.

425-1012

NUT,3/4"-10, G5

3/4

12шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

8

950835R1

PIN, gang adj

3шт.

103347

WASHER

15/16 x 1-3/4 x 10 ga

4шт.

9

953401R1

FRAME, front gang, unit A

1шт.

9

953461R1

FRAME, front gang, unit B

1шт.

9

951578R1

FRAME, front gang, unit C

1шт.

10

953402R1

FRAME, rear gang, unit A

1шт.

10

953462R1

FRAME, rear gang, unit B

1шт.

10

951579R1

FRAME, rear gang, unit C

1шт.
