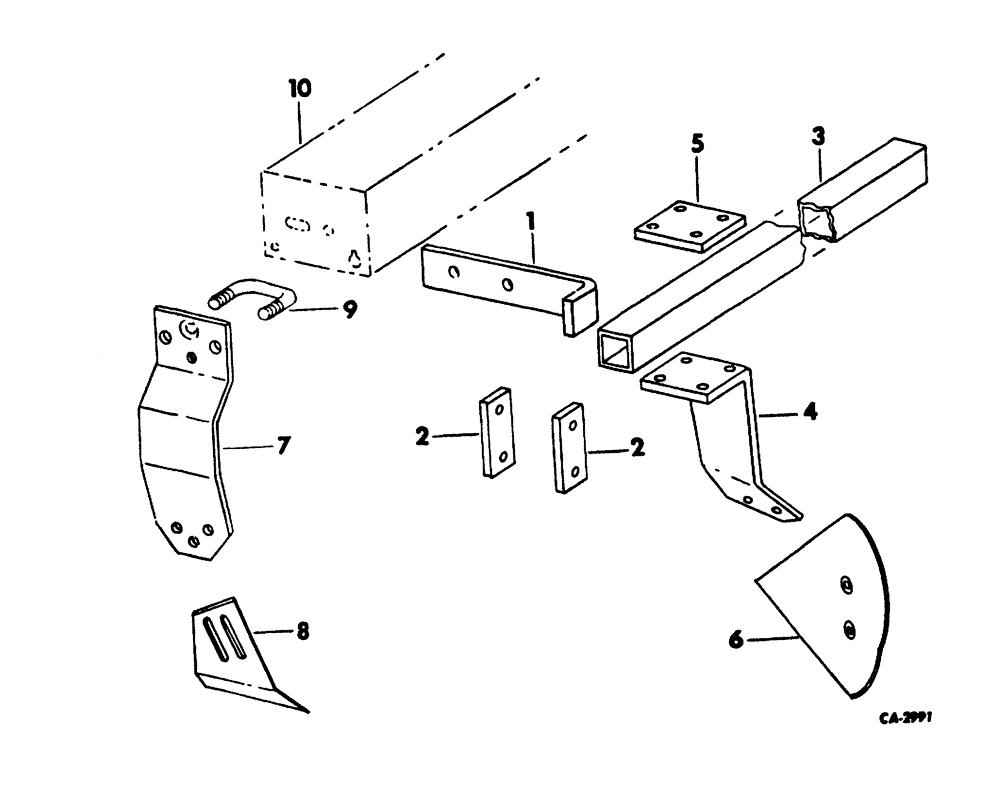

Запчасти Case IH 660 (AF-09) - SCRAPER ATTACHMENT

1

953394R1

SUPPORT, clamp, 8 for units A and B, 12 for unit C

1шт.

175583R1

BOLT, 3/4 x 2-1/4 mach, 2 per support

1шт.

220081

NUT

3/4, 1 per bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 1 per bolt 3/4"

1шт.

2

953393R1

STRAP, flat, 2 per support

1шт.

17721R1

BOLT, 1/2 x 4 mach, 1 per strap

1шт.

102637

NUT,1/2"-13, G5

1 per bolt 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 1 per bolt 1/2"

1шт.

3

953398R1

TUBE

BAR, scraper, 2 for unit A

1шт.

3

953399R1

TUBE

BAR, scraper, 2 for unit B

1шт.

3

953400R1

TUBE

BAR, scraper, 2 for unit C

1шт.

4

953391R1

ARM

front gang scraper, 11 for units A and B, 15 for unit C

1шт.

4

953392R1

ARM

rear gang scraper, 11 for units A and B, 15 for unit C

1шт.

5

953428R1

PLATE, scraper arm clamp, 1 per arm

1шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

1/2 x 3-3/4 mach, 4 per plate

1шт.

102637

NUT,1/2"-13, G5

1 per bolt 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 1 per bolt 1/2"

1шт.

6

953389R1

BLADE

front gang scraper, 1 per arm

1шт.

6

953390R1

BLADE

rear gang scraper, 1 per arm

1шт.

15583R1

SCREW,#3 Hd, 1/2" - 13 x 1 1/2", G2, Full Thd

BOLT, 1/2 x 1-1/2 no. 3 plow, 2 per blade

1шт.

102637

NUT,1/2"-13, G5

1 per bolt 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 1 per bolt 1/2"

1шт.

7

952254R1

BRACKET, end scraper

2шт.

17525R1

BOLT

5/8 x 2 mach

2шт.

8

952255R1

HALF BLADE

BLADE, rear gang end scraper

1шт.

8

952256R1

HALF BLADE

BLADE, front gang end scraper

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 crg

4шт.

NLS

NO LONGER SERVICED

7/16

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

9

951657R1

BOLT,U, 5/8" - 11 x 2.20"

U-BOLT

2шт.

953556R1

NUT, 5/8 lock

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 13 ga

2шт.

10

FRAME, refer to carrier and gang frame unit

1шт.
