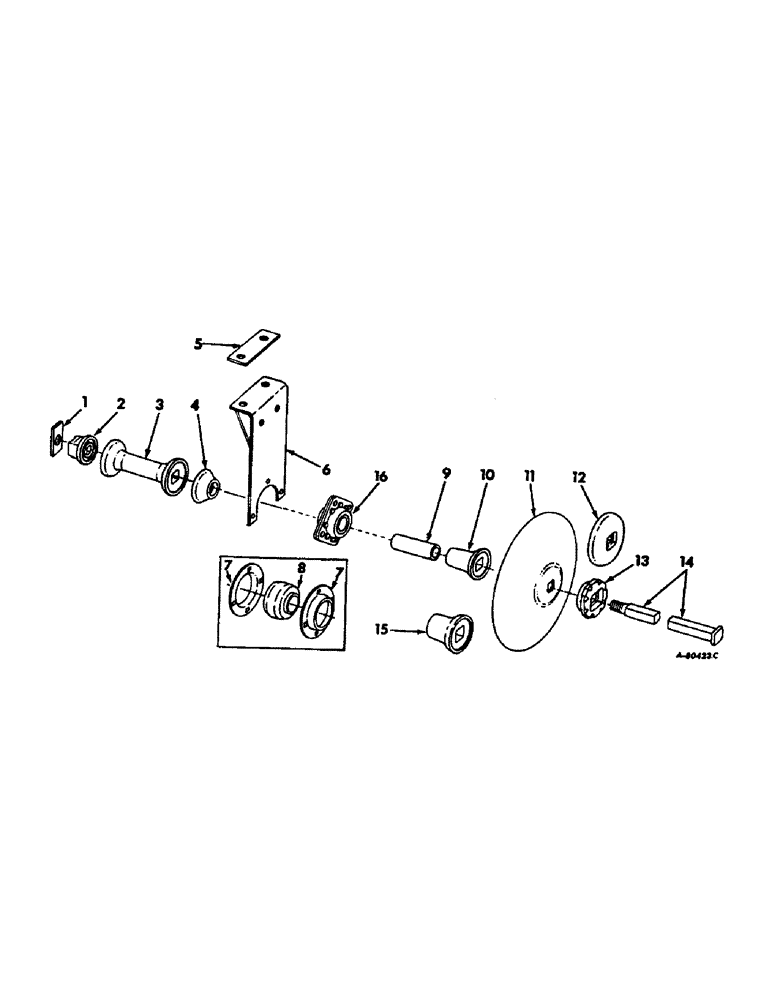

Запчасти Case IH 61 (L-5) - DISK GANGS, WITH ANTI-FRICTION BEARINGS

1

P34101

LOCK

NUT, arbor bolt

4шт.

NUT, 1-1/8

4шт.

2

PA4167

WASHER

arbor bolt nut

4шт.

3

481416R1

SPOOL

spacing, will work for 468586R1, 6 for unit C, 8 for unit F, 12 for unit A, and 16 for unit D

1шт.

3

481417R1

SPOOL

spacing, will work for PC3058, 4 for unit C, 6 for unit F, 8 for unit B, and 12 for unit E

1шт.

4

472592R2

SPOOL

bearing, 4 for units C and F, 8 for units A and D

1шт.

5

479021R1

BAR

bearing standard, used w/standard assy 479018R91

8шт.

20511R1

WASHER, 5/8 lock

6шт.

20510R1

NUT, 5/8

16шт.

20509R1

SCREW

5/8 x 3-3/4 C-Z cap

16шт.

6

479018R91

SUPPORT ASSY.

STANDARD ASSY, bearing, 1963 to 1966, order standard assy, 485752R1

8шт.

6

485752R1

SUPPORT ASSY.

STANDARD ASSY, bearing, 1966 and since, will work for 479018R91

8шт.

7

652386R1

FLANGE

MOUNTING, bearing

16шт.

BOLT, 3/8 x 3/4 crg

8шт.

BOLT, 3/8 x 1-1/4 crg

24шт.

WASHER, 3/8 lock

32шт.

NUT, 3/8

32шт.

8

ST607A

BALL BEARING,44.82mm ID x 85mm OD x 41.33mm W

BEARING, standard ball

8шт.

9

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, 4 used units C and F, 8 used unit A and D

1шт.

9

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, 4 used units C and F, 8 used units B and D

1шт.

10

472591R2

SPOOL

bearing

8шт.

11

143521/2

NOTCHED DISK

DISK, 18 in. 10 ga notched

1шт.

11

140561/2

DISC

DISK, 18 in. 10 ga solid

1шт.

11

474253R1

DISC

DISK, 18 in. 11 ga notched

1шт.

11

143531/2

NOTCHED DISK

DISK, 20 in. 9 ga notched

1шт.

11

143811/2

DISC

DISK, 20 in. 9 ga solid

1шт.

11

474254R1

BLADE

DISK, 20 in. 10 ga notched

1шт.

11

472219R1

DISC

DISK, 22 in. 8 ga notched

1шт.

11

474255R1

DISC

DISK, 22 in. 9 ga notched

1шт.

11

PA13373

DISC

DISK, 22 in. 9 ga solid, 20 used unit B, 22 used unit C, 24 used unit A and E, 26 used unit F, 28 used unit D

1шт.

12

474352R3

SQ HOLE WASHER

bumper

2шт.

13

466950R2

WASHER

arbor

2шт.

14

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 2 used unit C, 4 used unit A

1шт.

14

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 4 used unit D, E and F

1шт.

14

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 2 used unit C, 4 used unit B

1шт.

15

472593R2

SPOOL

bearing, 4 used units C and F, 8 used units B and E

1шт.

16

ST490

BEARING

ASSY, will work for ST607A

8шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach, 3 used with each ball bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 used with each ball bearing 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 3 used with each ball bearing 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z, 3 used with each ball bearing

1шт.
