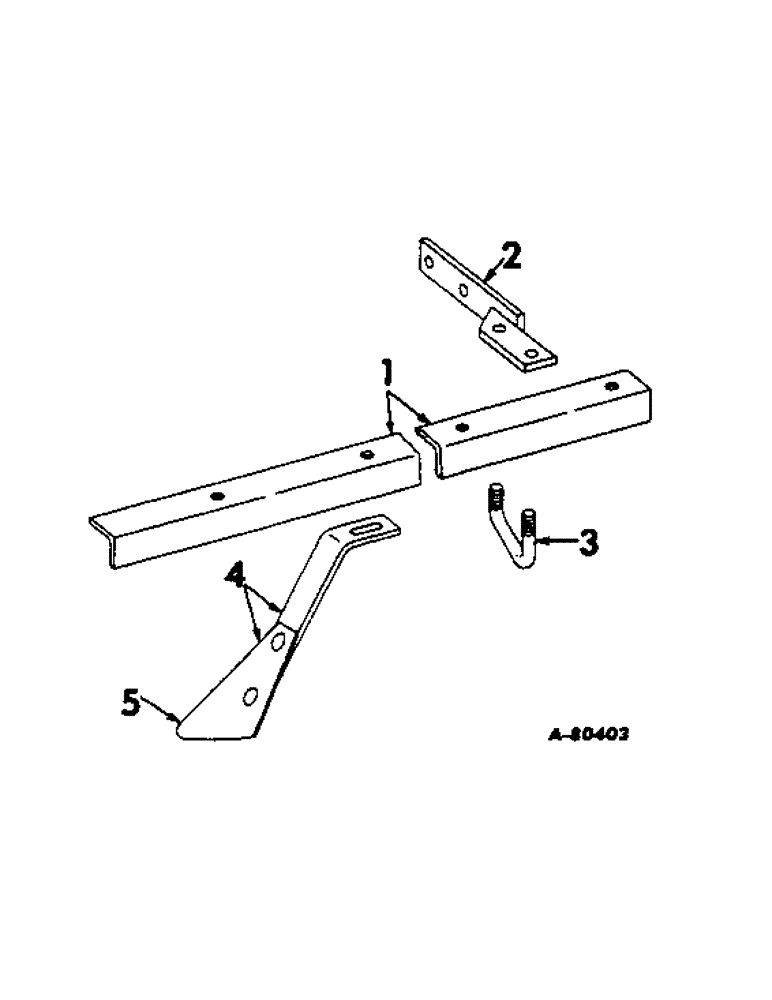

Запчасти Case IH 61 (L-4) - SCRAPERS AND SCRAPER ANGLES

1

474426R2

ANGLE

scraper bar LH front, 1 used units B and C

1шт.

1

474427R2

ANGLE

scraper bar RH front, 1 used units B and C

1шт.

1

471009R2

ANGLE

scraper bar LH front, will work for 474423R1, 1 used unit A

1шт.

1

479287R2

ANGLE

scraper bar LH front, will work for 474430R1, 1 used unit D

1шт.

1

479288R2

ANGLE

scraper bar RH front, will work for 474431R1, 1 used unit D

1шт.

1

479295R2

ANGLE, scraper bar LH front, will work for 474433R1, 1 used units E and F

1шт.

1

479296R2

ANGLE, scraper bar RH front, will work for 474434R1, 1 used units E and F

1шт.

1

468560R2

BAR

ANGLE, scraper bar rear, will work for 474425R1, 2 used units A and C

1шт.

1

474428R2

ANGLE

scraper bar LH rear, 1 used unit B

1шт.

1

474429R2

ANGLE

scraper bar RH rear, 1 used unit B

1шт.

1

479297R2

BAR

ANGLE, scraper bar rear, will work for 474432R1, 2 used units D and F

1шт.

1

479299R2

BAR

ANGLE, scraper bar LH scraper, will work for 474435R1, 1 used unit E

1шт.

1

479300R2

BAR

ANGLE, scraper bar, will work for 474436R1, 1 used unit E

1шт.

2

482073R1

BRACKET

scraper bar, will work for 477265R91

8шт.

BOLT, 1/2 x 1-1/2 mach

16шт.

WASHER, 1/2 lock

16шт.

NUT, 1/2

16шт.

3

474399R1

U-BOLT, scraper

8шт.

WASHER, 1/2 lock

16шт.

NUT, 1/2

16шт.

4

465060R92

SCRAPER

ASSY, LH, 8 used units A and E, 11 used units F, 12 used unit D

1шт.

4

465061R92

SCRAPER

ASSY RH, 8 used unit B, 9 used unit C, 10 used units A and E, 11 used unit F, 12 used unit D

1шт.

618502R1

BOLT, scraper bracket, 16 used unit B, 18 used unit C, 20 used units A and E, 22 used unit F, 24 used unit D

1шт.

WASHER, 1/2 lock, 16 used unit B, 18 used unit C, 20 used units A and E, 22 used unit F, 24 used unit D

1шт.

NUT, 1/2, 16 used unit B, 18 used unit C, 20 used units A and E, 22 used unit F, 24 used unit D

1шт.

5

465062R1

BLADE

scraper, 8 used unit B, 9 used unit C, 10 used units A and E, 11 used unit F and 12 used unit D

1шт.

RIVET, 3/8 x 7/8 truss-hd, 16 used unit B, 18 used unit C, 20 used units A and E, 22 used unit F, 24 used unit D

1шт.
