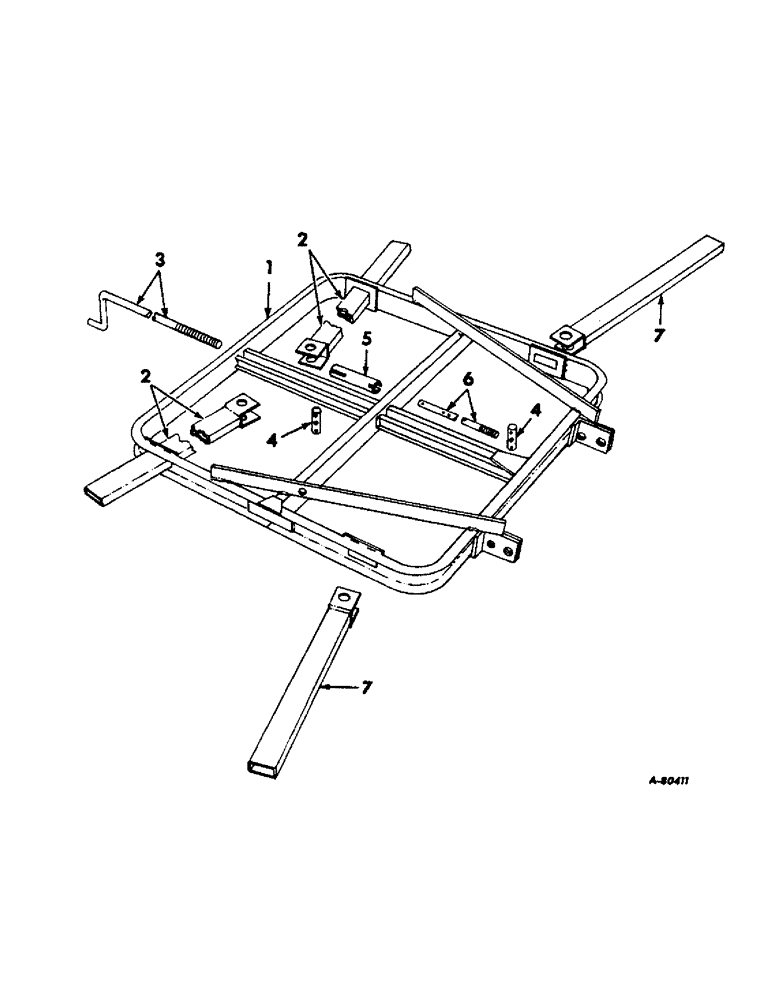

Запчасти Case IH 61 (L-2) - FRAME AND GANG BAR TUBES

1

474306R92

FRAME ASSY

1шт.

2

474328R91

TUBE ASSY, rear gang bar

2шт.

3

474314R1

CRANK, Adjusting

1шт.

PIN, 1/4 x 1-1/4 ESNA roll

6шт.

4

474304R1

SWIVEL, gang bar LH

1шт.

4

474305R1

BAR

SWIVEL, gang bar RH

1шт.

PIN, 1/4 x 2-1/4 self-opening cot.

4шт.

5

474316R1

COUPLING, screw

1шт.

6

474315R1

SCREW, adjusting

1шт.

7

474326R91

TUBE

ASSY, front gang bar

2шт.
