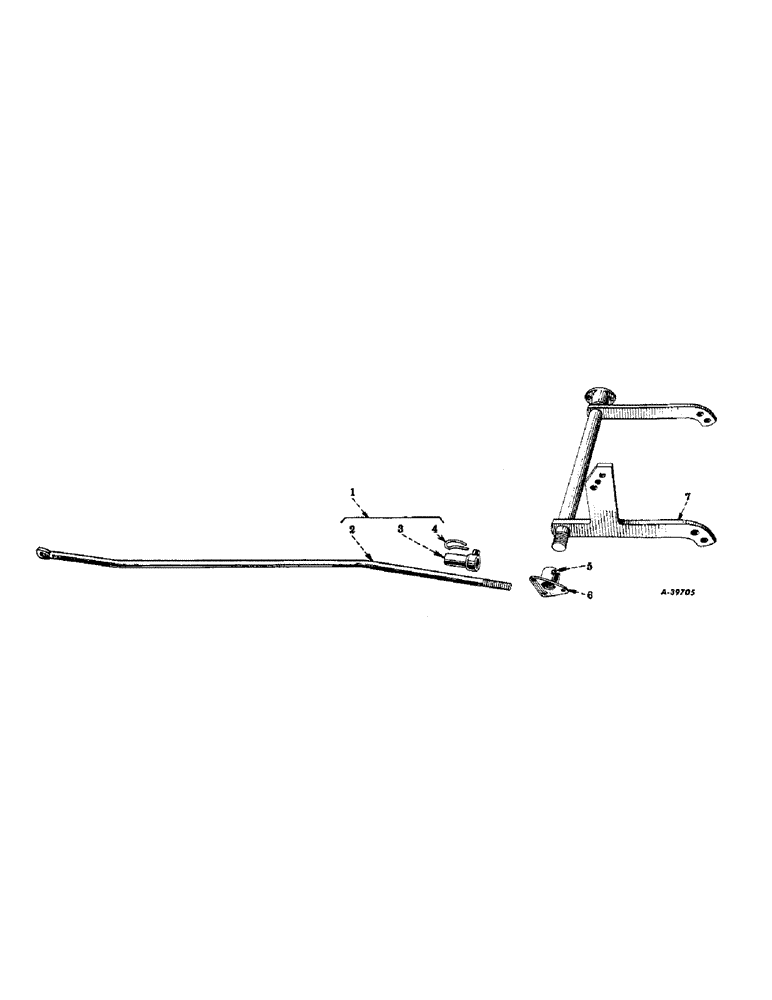

Запчасти Case IH 60F (K-03) - REAR RIGID ROCKSHAFT, POWER LIFT, NOTE

1

515526R91

LING ASSY, rocket raising, composed of (1) link 515059R1, (1) swivel 515060R91

1шт.

2

515059R1

ROD

LINK

1шт.

218443

NUT

3/4 jam

2шт.

3

515060R91

END

SWIVEL ASSY, rockshaft link

1шт.

WASHER, 21/32 x 1-1/4 x ga

1шт.

4

PO18499

COTTER PIN

quick-attachable cot., 1/4 x 1-1/4

1шт.

5

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type straight lub

1шт.

6

512447R21

BEARING ASSY

W/FITTING, rockshaft

2шт.

BOLT, 3/8 x 1 crg

6шт.

NUT, 3/8

6шт.

WASHER, 3/8 lock

6шт.

WASHER, 13/32 x 1 x 16 ga

6шт.

7

512453R93

ROCKSHAFT

ASSY, raising

1шт.

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, lift link

1шт.

110148

SCREW, 1/2 x 3/4 cup-pt-sq-hd set

1шт.
