Главная
/
Справочники
/
Case IH
/
Машины для растениеводства
/
Обработка почвы
/
LEGACY
/
(60F) - MCCORMICK-INTERNATIONAL DISK HARROW (1/63-12/88)
/

(K-02) - FRONT AND REAR FRAMES AND GANG BAR TUBES

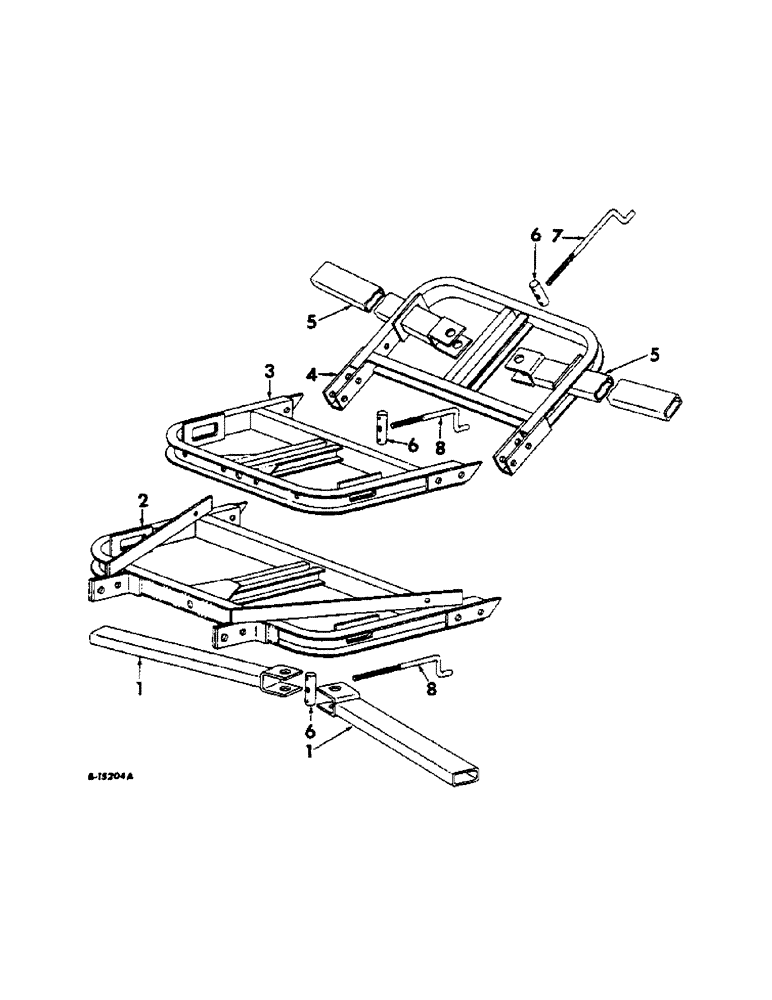

Запчасти Case IH 60F (K-02) - FRONT AND REAR FRAMES AND GANG BAR TUBES

№

Артикул

Название

Примечание

Количество

1

474317R92

TUBE

ASSY, front gang bar, 2 used units A and H

1шт.

1

474322R92

TUBE

ASSY, front gang bar, 2 used units B and J

1шт.

1

479869R91

TUBE ASSY, front gang bar, 2 used units C, D, E, F, G, L and M

1шт.

2

474292R92

FRAME ASSY, front, 1 used units B, E, F, G, J and L

1шт.

SCREW, 3/4 x 3 cap, 4 used units A thru G

1шт.

462248R1

LOCK NUT

3/4 lock, 4 used units A thru G

1шт.

3

474272R91

FRAME ASSY, front, 1 used units A, C, D, H and K

1шт.

SCREW, 3/4 x 3 cap, 4 used units A thru G

1шт.

462248R1

LOCK NUT

3/4 lock, 4 used units A thru G

1шт.

4

474279R91

FRAME ASSY, rear, 1 used units A, C and D

1шт.

4

474298R91

FRAME ASSY, rear, 1 used units B, E and G

1шт.

SCREW, 3/4 x 3 cap, 4 used units A thru G

1шт.

462248R1

LOCK NUT

3/4 lock, 4 used units A thru G

1шт.

5

474320R92

TUBE

ASSY, rear gang bar, 2 used unit A

1шт.

5

474326R92

TUBE ASSY, rear gang bar, 2 used units B, E, F, and G

1шт.

5

474322R92

TUBE

ASSY, rear gang bar, 2 used units C and D

1шт.

6

474305R1

BAR

SWIVEL, gang bar RH, 1 used units H thru M, 2 used units A thru G

1шт.

PIN, 5/32 x 1-1/4 cotter, 1 used units A, J thru M, 2 used units B thru G

1шт.

13169R1

PIN, 1/4 x 2-1/4 self-opening cot., 2 used units H thru M, 4 used units A thru G

1шт.

7

474303R2

SCREW, rear adjusting, 1 used units B, E, F and G

1шт.

7

474301R2

SCREW, rear gang adjusting, 1 used units A, C and D

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

ESNA, 2 used units H thru M, 4 used for units A thru G 1/4" x 1 1/4", Slotted

1шт.

WASHER, 29/32 x 1-1/4 x 11 ga, 2 used units H thru M, 4 used units A thru G

1шт.

8

474302R2

SCREW, front adjusting, 1 used units B, E, F, G, J and L

1шт.

8

474300R2

SCREW, front gang adjusting, 1 used units A, C, D, and H

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

ESNA, 2 used units H thru M, 4 used units A thru G 1/4" x 1 1/4", Slotted

1шт.

WASHER, 29/32 x 1-1/4 x 11 ga, 2 used units H thru M, 4 used units A thru G

1шт.

Выбрано товаров: 27
