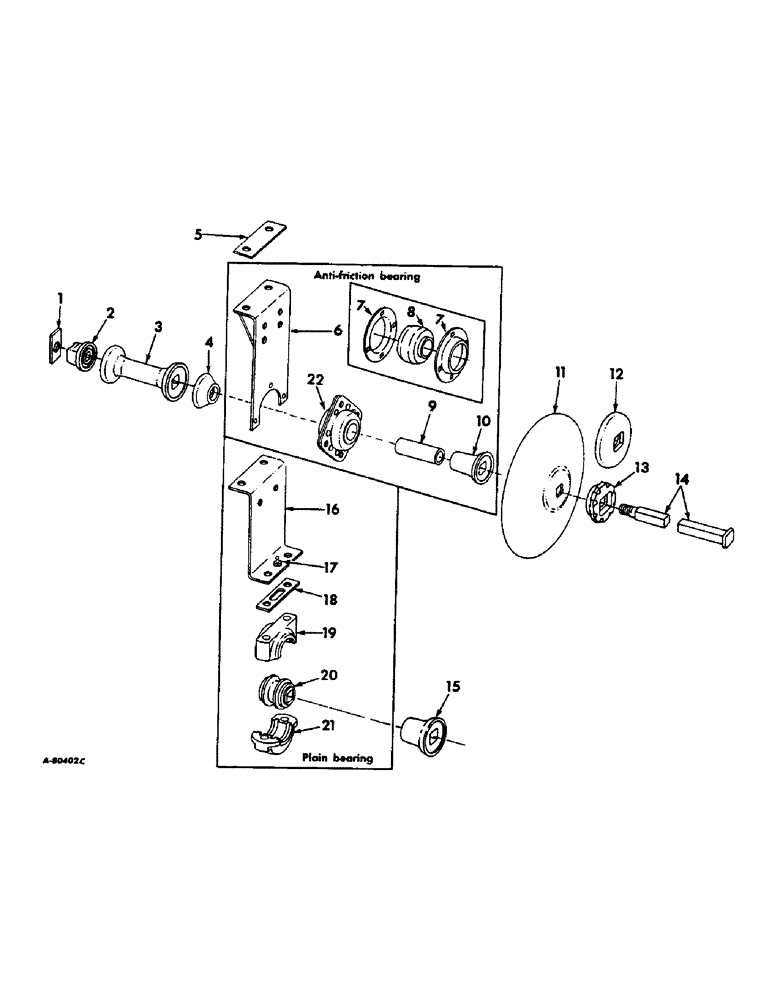

Запчасти Case IH 60F (K-09) - FRONT AND REAR DISK GANGS, WITH PLAIN BEARINGS AND

1

P34101

LOCK

OUT, arbor bolt, 2 used units H thru M, 4 used units A thru G

1шт.

2

PA4167

WASHER

arbor bolt nut, 2 used units H thru M, 4 used units A thru G

1шт.

3

481416R1

SPOOL

1шт.

SPOOL, spacing, for anti-friction bearing, will work for 468586R1, bearing, 2 used unit H, 4 used units A, D 7-1/2 in. rear only J, 6 used units G and L, 8 used unit B, 12 used unit E, for plain bearing, 2 used unit H, 4 used units A, D and J, 6 used units G and L, 8 used unit B, 12 used unit E

1шт.

3

481417R1

SPOOL

spacing, for anti-friction bearing, will work for PC3058 bearing, 2 for unit D 9 in. spacing only and K, 4 for units C, G, and M, 8 for unit F, for plain bearing, 2 used units D and K, 4 used unit C, G and M, 8 used unit F

1шт.

4

472592R2

SPOOL

bearing, 4 used units D, G, H, J and L, 8 used units A, B and E

1шт.

5

479021R1

BAR

bearing standard, 4 used units H thru M, 8 used units A thru G

1шт.

20511R1

WASHER, 5/8 lock, 8 used units H thru M, 16 used units A thru G

1шт.

20510R1

NUT, 5/8, 8 used units H thru M, 16 used units A thru G

1шт.

20509R1

SCREW

5/8 x 3-3/4 C-Z cap, 8 used units H thru M, 16 used units A thru g

1шт.

6

485740R1

SUPPORT ASSY.

STANDARD ASSY, for anti-friction bearing, will work for 479022R91, 4 used units H thru M, 8 used units A thru G

1шт.

7

652386R1

FLANGE

MOUNTING, bearing, for anti-friction bearing, 4 used unit H, 8 used units A, J thru M, 16 used units B thru G

1шт.

BOLT, 3/8 x 3/4 crg, 4 used units H thru M, 8 used units A thru G

1шт.

BOLT, 3/8 x 1-1/4 crg, 12 usesd units H thru M, 24 used units A thru G

1шт.

WASHER, 3/8 lock, 16 used units H thru M, 32 used units A thru G

1шт.

NUT, 3/8, 16 used units H thru M, 32 used units A thru G

1шт.

8

ST607A

BALL BEARING,44.82mm ID x 85mm OD x 41.33mm W

BEARING, standard, for anti-friction, 4 used units H thru M, 8 used units A thru G

1шт.

9

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, for anti-friction bearing, 4 used units D, G, H, J and L, 8 used units A, B and E

1шт.

9

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, for anti-friction bearing, 4 used units D, G, K and M, 8 used units C and F

1шт.

10

472591R2

SPOOL

bearing, for anti-friction bearing, 4 used units H thru M, 8 used units A thru G

1шт.

11

140551/2

BLADE, 16 in. x 11 ga solid disk, 8 used units H and K, 10 used units J and M, 12 used unit L, 16 used units A and C, 18 used D, 20 used units B and F, 22 used unit G, 24 unit E

1шт.

11

140561/2

DISC

BLADE, 18 in. x 10 ga solid disk, 8 used units H and K, 10 used units J and M, 12 used unit L, 16 used units A and C, 18 used unit D, 20 used units B and F, 22 used unit G, 24 used unit E

1шт.

11

474253R1

DISC

BLADE, 18 in. x 11 ga notched disk, 8 used units H and K, 10 used units J and M, 12 used unit L, 16 used units A and C, 18 used unit D, 20 used units B and F, 22 used unit G, 24 used unit E

1шт.

11

143811/2

DISC

BLADE, 20 in. x 9 ga solid disk, 8 used units H and K, 10 used units J and M, 12 used units L, 16 used units A and C, 18 used units D, 20 used units B and F, 22 used unit G, 24 used unit E

1шт.

11

474254R1

BLADE

20 in. x 10 ga notched disk, 8 used units H and K, 10 used units J and M, 12 used unit L, 16 units A and C, 18 used unit D, 20 used units B and F, 22 used unit G, 24 used unit E

1шт.

12

474352R3

SQ HOLE WASHER

bumper

2шт.

13

466950R2

WASHER

arbor, 2 used units A thru G

1шт.

14

471017R1

BOLT,1 1/8"-7 x 26.1"

arbor, 2 used unit H, 4 used unit A

1шт.

14

474354R1

BOLT,1 1/8"-7 x 33.8"

arbor, 2 used units D and J, 4 used unit B

1шт.

14

471016R1

BOLT,1 1/8"-7 x 30.6"

arbor, 2 used units D and K, 4 used unit C

1шт.

14

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 2 used units G and L, 4 used unit E

1шт.

14

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 2 used units G and M, 4 used unit F

1шт.

15

472593R2

SPOOL

bearing, for plain bearing, 4 used units H, J and L, 8 used units A, B, E, K and M, 12 used units D and G, 16 used units C and F, for anti-friction bearing, 4 used units D, G, K and M, 8 used units C and F

1шт.

16

479024R91

STANDARD ASSY, for plain bearing, 4 used units H thru M, 8 used units A thru G

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , For plain bearing, 4 used units H thru M, 8 used units A thru G 1/8"-27 x .66 lg

1шт.

18

650171R2

STRUT

GASKET, bearing, for plain bearing, 4 used units H thru M, 8 used units A thru G

1шт.

BOLT, 5/8 x 4-1/4 mach, 8 used units H thru M, 16 used units A thru G

1шт.

WASHER, 5/8 lock, 8 used units H thru M, 16 used units A thru G

1шт.

NUT, 5/8, 8 used units H thru M, 16 used units A thru G

1шт.

19

477269R1

CAP

BEARING, upper, for plain bearing, 4 used units H thru M, 8 used units A thru G

1шт.

20

477268R1

SPOOL

bearing, for plain bearing, 4 used units H thru M, 8 used units A thru G

1шт.

21

477270R1

CAP

BEARING, lower, for plain bearing, 4 used unit H thru M, 8 used units A thru G

1шт.

22

ST490

BEARING

standard, for anti-friction bearing, will work for ST607 A, 8 used units A thru G, 4 used units H thru M

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach, 3 used with each ball bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 used with each ball bearing 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 3 used with each ball bearing 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z, 3 used with each ball bearing

1шт.
