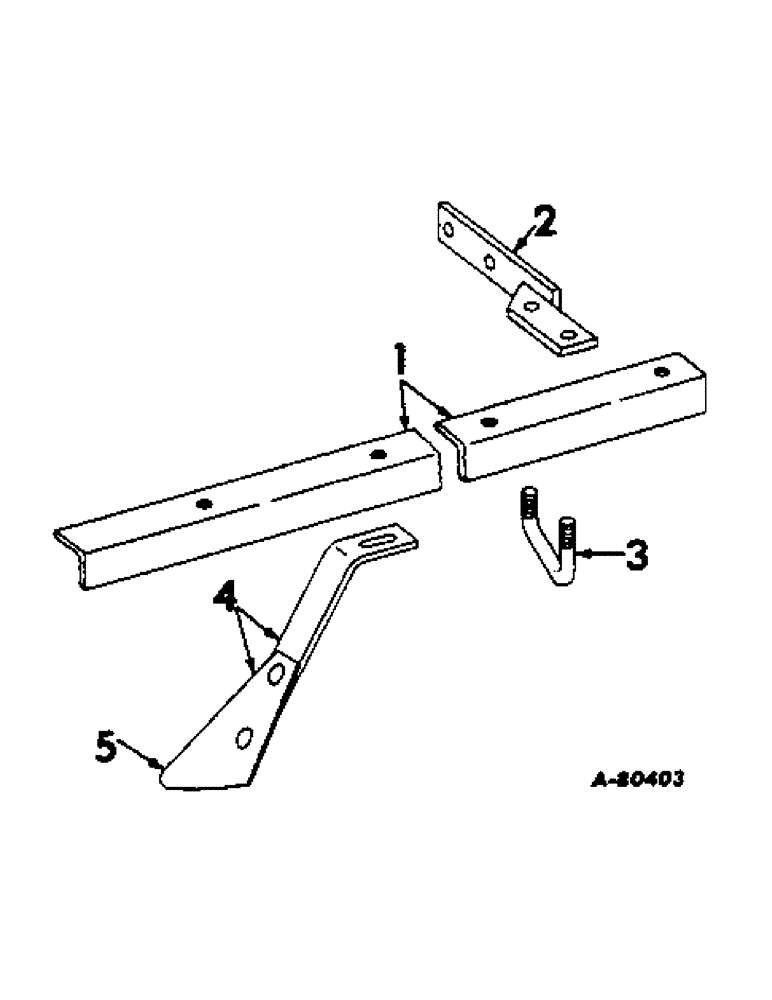

Запчасти Case IH 60F (K-08) - SCRAPERS AND SCRAPER ANGLES

1

474401R2

ANGLE

scraper bar LH front, 1 used units A and H

1шт.

1

474402R2

ANGLE

scraper bar RH front, 1 used units A and H

1шт.

1

474412R2

ANGLE, scraper bar LH front, 1 used units B and J

1шт.

1

474413R2

ANGLE, scraper bar RH front, 1 used units B and J

1шт.

1

474415R2

ANGLE

scraper bar LH front, 1 used units C, D and K

1шт.

1

474416R2

ANGLE, scraper bar RH front, 1 used units C, D and K

1шт.

1

474426R2

ANGLE

scraper bar LH front, 1 used units F, G and M

1шт.

1

474427R2

ANGLE

scraper bar RH front, 1 used units F, G and M

1шт.

1

471009R2

ANGLE

scraper bar LH front, will work for 474423R1, 1 used units E and L

1шт.

1

471010R2

ANGLE

scraper bar RH front, will work for 474424R1, 1 used units E and L

1шт.

1

470983R2

ANGLE

scraper bar rear, will work for 474403R1, 2 used units A

1шт.

1

474414R2

ANGLE

scraper bar rear, 2 used units B and D

1шт.

1

474417R2

ANGLE

scraper bar LH rear, 1 used unit C

1шт.

1

474418R2

ANGLE

scraper bar RH rear, 1 used unit C

1шт.

1

468560R2

BAR

ANGLE, scraper bar rear, will work for 474425R1, 2 used units E and G

1шт.

1

474428R2

ANGLE

scraper bar LH rear, 1 used unit F

1шт.

1

474429R2

ANGLE

scraper bar RH rear, 1 used unit F

1шт.

2

482073R1

BRACKET

scraper bar, will work for 477265R91, 4 used units H thru M, 8 used units, A thru G

1шт.

BOLT, 1/2 x 1-1/2 mach, 8 used units H thru M, 16 used units A thru G

1шт.

WASHER, 1/2 lock, 8 used units H thru M, 16 used units A thru G

1шт.

NUT, 1/2, 8 used units H thru M, 16 used units A thru G

1шт.

3

474399R1

U-BOLT, scraper, 1963 to 1965, 4 used units H thru M, 8 used units A thru G

1шт.

WASHER, 1/2 lock, 8 used units H thru M, 16 used units A thru G

1шт.

NUT, 1/2, 8 for units H thru M, 16 for units A thru G

1шт.

4

465060R92

SCRAPER

ASSY, LH, 3 used units H and K, 4 used units J and M, 5 used unit L, 6 used units A and C, 7 used unit D, 8 used units B and F, 9 used unit G, 10 used unit E

1шт.

4

465061R92

SCRAPER

ASSY, RH, 3 used units H and K, 4 used units J and M, 5 used unit L, 6 used units A and C, 7 used unit D, 8 used units B and F, 9 used unit G, 10 used unit E

1шт.

618502R1

BOLT, scraper bracket, 6 used units H an K, 8 used units J and M, 10 used unit L, 12 used units A and C, 14 used unit D, 16 used units B and F, 18 used unit G, 20 used unit E

1шт.

WASHER, 1/2 lock, 6 used unit H and K, 8 used units J and M, 10 used unit L, 12 used units A and C, 14 used unit D, 16 used units B and F, 18 used unit G and 20 used unit E

1шт.

NUT, 1/2, 6 used units H and K, 8 used units J and M, 10 used unit L, 12 used units A and C, 14 used unit D, 16 used units B and F, 18 used unit G, 20 used unit E

1шт.

5

465062R1

BLADE

scraper, 3 used units H and K, 4 used unit J and M, 5 used units L, 6 used units A and C, 7 used unit D, 8 used units B and F, 9 used unit G, 10 used unit E

1шт.

RIVET, 3/8 x 7/8 truss-hd, 6 used units H and K, 8 used units J and M, 10 used unit L, 12 used units A and C, 14 used unit D, 16 used units B and F, 18 used unit G and 20 used unit E

1шт.
