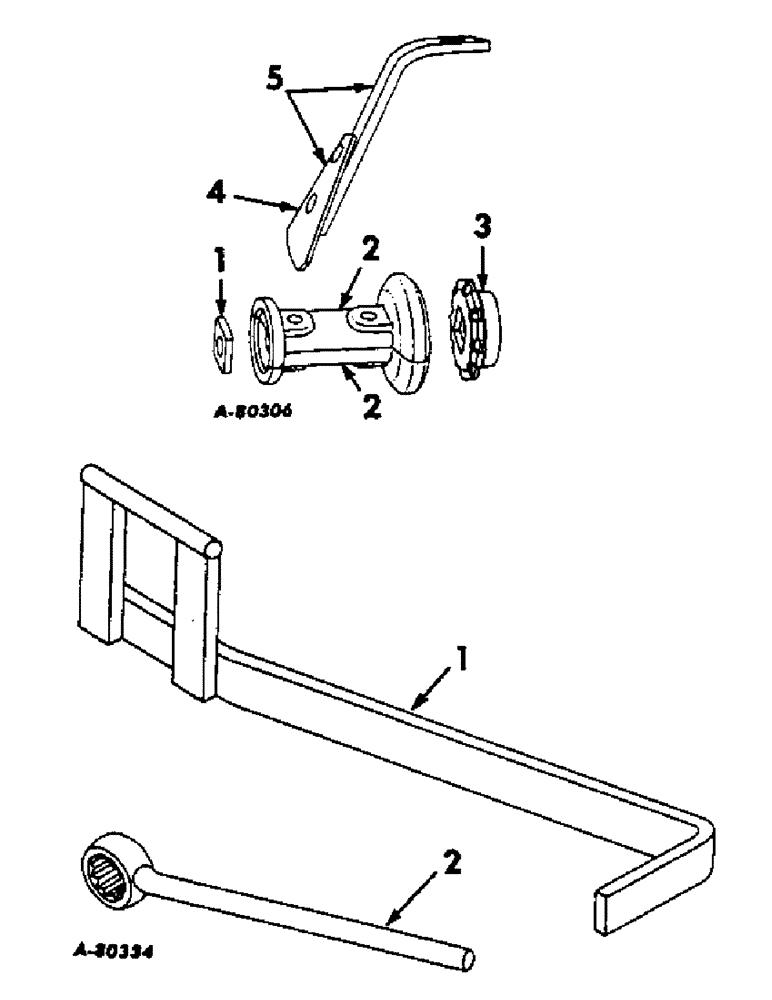

Запчасти Case IH 60 (K-11[B]) - PRODUCT GRAPHICS

1

466986R1

BLOCK

SPACER, arbor bolt head washer

2шт.

2

482970R2

SPOOL

furrow filler, will work for 466979R1

4шт.

BOLT, 1/2 x 3-1/4 mach

4шт.

WASHER, 1/2 lock

4шт.

NUT, 1/2

4шт.

BOLT, 3/4 x 2-1/2 crg

2шт.

NUT, 3/4 sq, type A

2шт.

WASHER, 3/4 lock

2шт.

218443

NUT

3/4 jam

2шт.

3

P4165

WASHER, arbor bolt-hd

2шт.

4

465062R1

BLADE

scraper

1шт.

RIVET, 3/8 x 1-1/8 truss-hd

2шт.

618502R1

BOLT, 1/2 x 1-1/4 crg, scraper to scraper bar

2шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

5

465060R92

SCRAPER

ASSY, filler disk LH

1шт.

5

465061R92

SCRAPER

ASSY, filler disk RH

1шт.

1

478686R92

SPECIAL WRENCH

TOOL ASSY, wrench

1шт.

2

478685R1

SOCKET WRENCH

TOOL, box wrench

1шт.

474359R91

PRODUCT GRAPHICS SET, consists of

1шт.

2751047R1

PRODUCT GRAPHIC

MC CORMICK INTERNATIONAL, on web of rear frame channel, backside 6 in. from left end

1шт.

1011412R2

IH, on web of rear frame channel, backside near center to left of adjusting crank

1шт.

2751255R1

PRODUCT GRAPHIC

International industrial

1шт.
