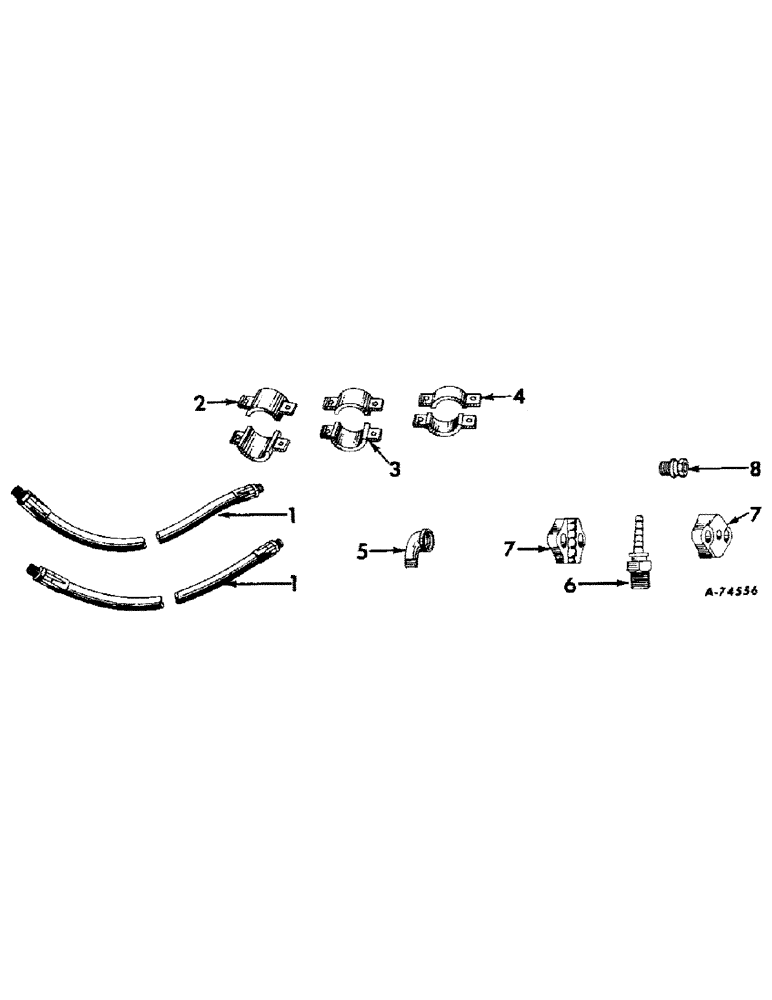

Запчасти Case IH 6 FARM (A-05) - HYDRAULIC CYLINDER HOSES AND CYLINDER STOPS

1

365908R91

HOSE, hydraulic, 3/4 x 96 in.

1шт.

2

962061R91

STOP, cylinder, 2 in.

4шт.

BOLT, 1/4 x 1-1/2 hex-hd mach

4шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

3

962044R91

STOP, cylinder, 1-1/2 in.

4шт.

BOLT, 1/4 x 1-1/2 hex-hd mach

4шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

4

962043R91

STOP, cylinder 1 in.

4шт.

BOLT, 1/4 x 1-1/2 hex-hd mach

4шт.

NUT, 1/4

4шт.

WASHER, 1/4 lock

4шт.

5

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 street

2шт.

6

295715R1

STEM

4шт.

7

295716R1

CALMP, half

8шт.

SCREW, 3/8 x 1-1/4 NF cap

8шт.

NUT, 3/8 NF

8шт.

8

102729R1

UNION

adapter

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 1.46 X 1.57

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 2.19 X 2.36

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 2.93 X 3.15

2шт.

77582C91

PACKAGE

IH trademark, medium size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 3.66 X 3.94

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 4.39 X 4.72

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 5.48 X 5.91

2шт.

77583C91

PACKAGE

IH trademark, large size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 6.58 X 7.09

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 7.68 X 8.27

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 10.24 X 11.02

2шт.

547495R92

DECAL KIT

PACKAGE, International name, For red machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 8.56 X .56

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 14.06 X .94

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 23.12 X 1.50

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 35.12 X 2.25

2шт.

547497R92

DECAL

PACKAGE, model designation, For red machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 8.78 X 2.45

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 14.08 X 4.50

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 20.04 X 7.57

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 15.20 X 7.56

2шт.

547496R92

DECAL

PACKAGE, International name, For yellow machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 8.50 X .50

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 17.00 X 1.00

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 23.00 X 1.38

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 35.00 X 2.12

1шт.

547498R92

DECAL

PACKAGE, model designation, For yellow machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 12.20 X 3.00

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 15.80 X 4.68

2шт.
