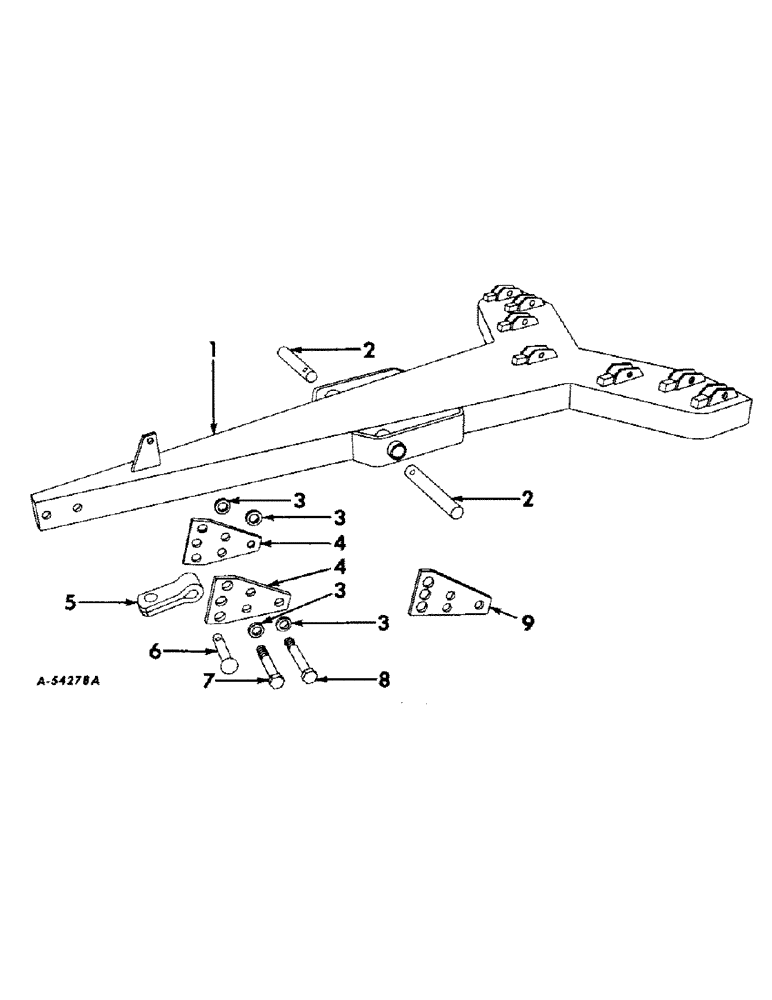

Запчасти Case IH 6 FARM (A-02) - MAIN FRAME

1

960010R91

FRAME, main

1шт.

2

960062R1

SHAFT, wheel arch

2шт.

PIN, 3/8 x 5 cotter

2шт.

3

960176R1

WASHER, hitch bolt

4шт.

4

960023R1

PLATE, hitch, Serial Range: 1959-1963

2шт.

5

957685R1

LINK, hitch

1шт.

6

956108R1

PIN, clevis

1шт.

PIN, 5/16 x 2-1/2 cotter

1шт.

WASHER, 1-13/16 x 3-3/4 x 7 ga

1шт.

7

960178R1

BOLT, 1-1/2 x 9 hex-hd mach

1шт.

NUT, 1-1/2

1шт.

WASHER, 1-1/2 lock

1шт.

8

960179R1

BOLT, 1-1/2 x 10-1/4 hex-hd mach

1шт.

NUT, 1-1/2

1шт.

WASHER, 1-1/2 lock

1шт.

9

962451R1

PLATE, LH hitch, 1963 and since

1шт.

9

962452R1

PLATE, RH hitch, 1963 and since

1шт.
