Запчасти Case IH 6 FARM (A-21) - GAUGE WHEEL

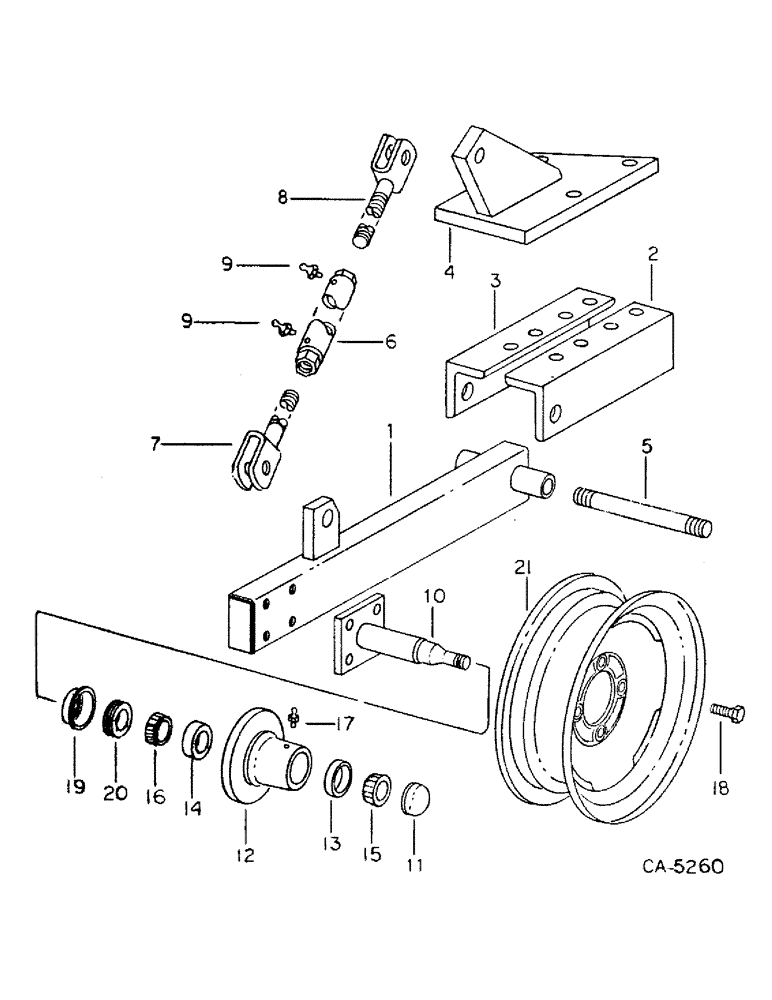

Схема запчастей Case IH 6 FARM - (A-21) - GAUGE WHEEL

Артикул

Название

Примечание

Количество

1

112443C1

STANDARD ASSY, gauge wheel

2шт.

2

112437C2

ANGLE

ANGEL, gauge wheel support RH

2шт.

3

112438C2

ANGLE

gauge wheel support LH

2шт.

4

112446C2

ANCHOR

ASSY, cyl RH

1шт.

4

112447C2

ANCHOR

ASSY, cyl LH

1шт.

22832R1

BOLT,Hex, 7/8" - 9 x 8 1/2", Gr 5

SCREW, 7/8-9 x 8-1/2 znd hex-hd cap

8шт.

326968C1

LOCK NUT

7/8-9 znd hex, two-way lock

8шт.

5

112892C11

STUD, gauge wheel pivot

2шт.

489528R1

LOCK NUT

1-8 hex. two-way lock

2шт.

6

480249R1

TRUSS ROD

TURNBUCKLE, landing

2шт.

7

480250R91

ROD

ASSY, LH thread

2шт.

8

480251R91

ROD

ASSY, PH thread

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2-3/16 std-hd

4шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

426899

NUT,Jam, 1"-8, G5

1-8 znd hex. jam

2шт.

9

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

10

112450C1

SPINDLE ASSY, gauge wheel

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

8шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. two-way lock

8шт.

11

651194R1

CAP

wheel

4шт.

12

472220R21

HUB

W/SET SCREW, wheel

4шт.

443804

SCREW, 1/4-28 x 1/4 znd slt-ov-pt set

4шт.

13

651814R1

BEARING CUP

BEARING, outer cup

4шт.

14

651817R1

BEARING CUP

BEARING, inner cup

4шт.

14

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

4шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone

4шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, in wheel hub

4шт.

18

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 conical hd hb

16шт.

19

472222R1

SLEEVE

oil seal wear

4шт.

20

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

4шт.

21

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in., recommended 7.50 x 14 imp tubeless tire

4шт.

387841R91

VALVE

STEM, valve

4шт.

Выбрано товаров: 34
