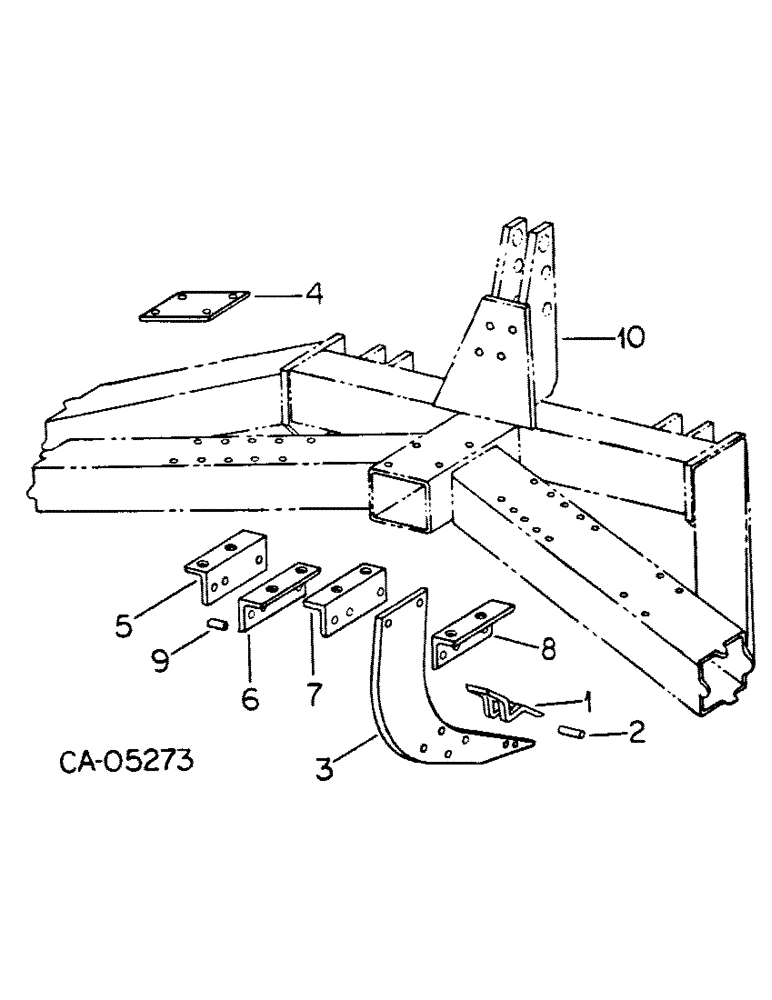

Запчасти Case IH 6 FARM (A-19) - RIGID SHANK UNIT

1

101188C1

TOOTH

scraper, point

1шт.

2

122551C1

PIN

7/16 x 2-1/4 groove

1шт.

3

112411C1

SHANK, rigid

1шт.

4

101139C1

BAR

rigid top, plate

1шт.

24561R1

BOLT,Hex, 7/8" - 9 x 8", Gr 5

SCREW, 7/8-9 x 8 znd hex-hd cap

4шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

326968C1

LOCK NUT

7/8-9 hex, two-way lock

4шт.

5

101142C1

ANGLE, inner shank LH and center

1шт.

6

101143C1

ANGLE, inner shank RH

1шт.

7

ANGLE, outer shank LH and center, discontinued for service

1шт.

8

101141C1

ANGLE, outer shank RH

1шт.

9

518598R1

SPACER

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

10

FRAME, main

1шт.

112458C1

SHIM

SHIN, 1 per shank, available for service to be welded on front of shanks to increase wear life

1шт.
