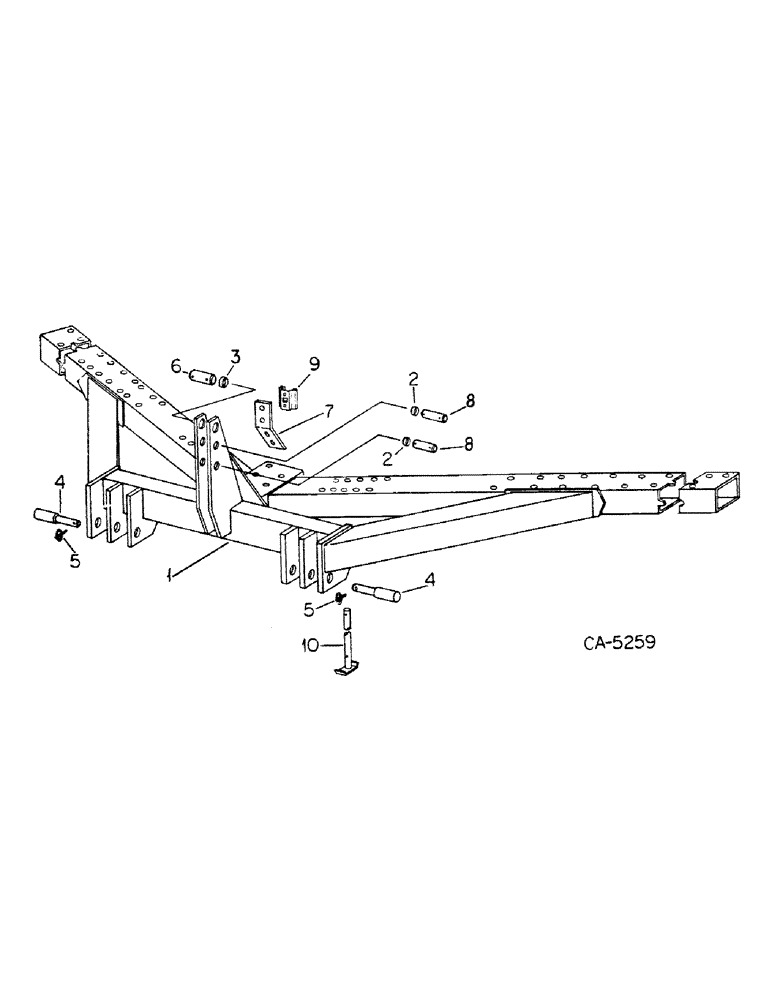

Запчасти Case IH 6 FARM (A-18) - 11 SUBSOIL CHISEL MAIN FRAME AND SAFETY LAMP BRACKET

1

131773C93

FRAME

W/PRODUCT GRAPHIC, main, Replaces 101123C91

1шт.

2

112718C1

BUSHING

mast wear

4шт.

3

122790C1

BUSHING

mast

2шт.

4

101137C1

HITCH PIN,50.8mm OD x 274.32mm L

BAR, hitch pin

2шт.

5

372907R91

LINCH PIN

PIN, drawbar

2шт.

6

122791C1

PIN

upper mast

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

2шт.

7

122557C1

SUPPORT

SMV socket

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

112680C1

PIN

upper coupler

1шт.

21822R1

PIN, 1/4 x 2 znd self-opening cot.

2шт.

9

398976R1

BRACKET

SOCKET, safety lamp bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

10

953958R2

STAND

ASSY

1шт.

Q3548

PIN,1/2" x 2 1/16"

1/2 x 2-1/16 std-hd

1шт.

517843R1

COTTER PIN

PIN, quick attacheable cot.

1шт.

122878C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

175311C1

REFLECTOR

red

2шт.

174732C1

REFLECTOR

amber

1шт.

77583C91

PACKAGE

IH trademark, large size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 6.58 X 7.09

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 7.68 X 8.27

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 10.24 X 11.02

2шт.

77582C91

PACKAGE

IH trademark, medium size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 3.66 X 3.94

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 4.39 X 4.72

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 5.48 X 5.91

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of

1шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 1.46 X 1.57

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 2.19 X 2.36

2шт.

NSS

NOT SOLD SEPARAT

IH TRADEMARK 2.93 X 3.15

2шт.

547495R92

DECAL KIT

PACKAGE, International, For red machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 8.56 X .56

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 14.06 X .94

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 23.12 X 1.50

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 35.12 X 2.25

2шт.

547497R92

DECAL

PACKAGE, model designation, For red machines, Consists of

1шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 8.78 X 2.45

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 14.08 X 4.50

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 20.04 X 7.57

2шт.

NSS

NOT SOLD SEPARAT

MODEL DESIGNATION 15.20 X 7.56

2шт.
