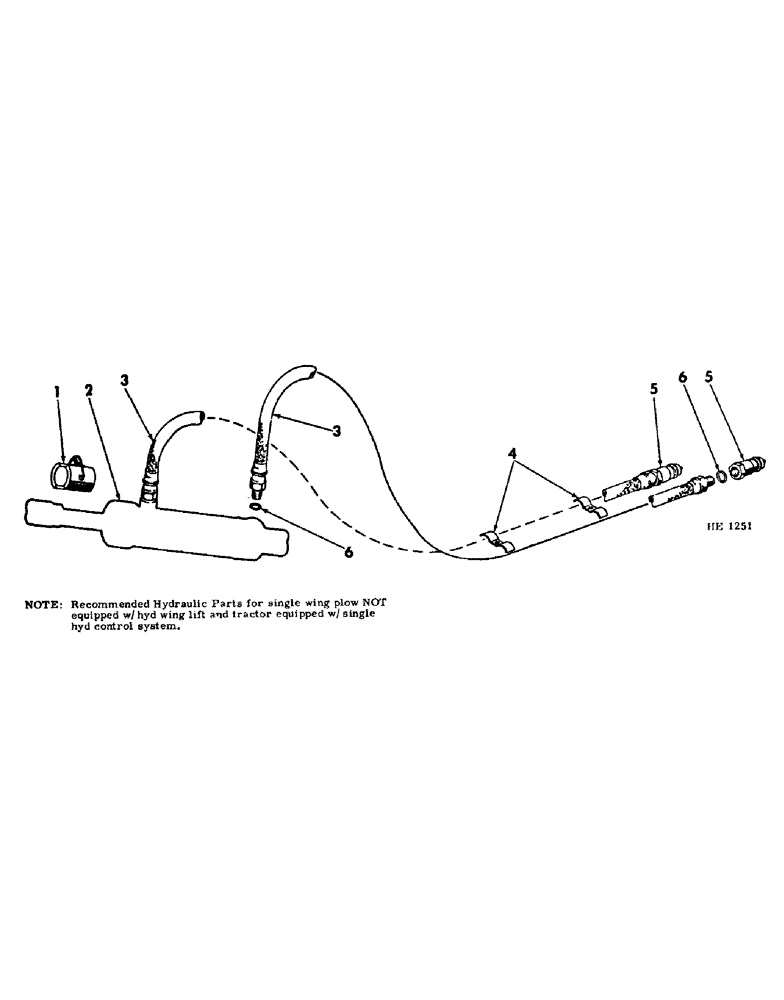

Запчасти Case IH 55 (13-13) - HYDRAULIC CONNECTIONS

1

479849R91

PACKAGE

STOP, remote control hyd cyl 1/2"

1шт.

1

643259R91

STOP

remote control hyd cyl 3/4"

1шт.

1

479850R91

PACKAGE

STOP, remote control hyd cyl 1"

1шт.

1

643260R91

PACKAGE

STOP, remote control hyd cyl 1-1/2"

1шт.

1

643261R91

STOP

remote control hyd cyl 3"

1шт.

1

643262R91

STOP

remote control hyd cyl 3-1/2"

1шт.

1

959999R91

STOP

remote control hyd cyl 5"

1шт.

2

388688R91

CYLINDER, remote control 4 x 8 stroke hyd (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 13 of this parts catalog)

1шт.

3

372570R91

HOSE ASSY.

HOSE, 1/2 x 152" coupler to hyc cyl

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HYD HOSE O-RING

4шт.

4

317054R1

CLAMP

hose

2шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1/4 X 1-1/4" BOLT

2шт.

21784R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

395149R1

QUICK MALE COUPLING

COUPLER, hose male tractor

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HOSE COUPLER O-RING

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

coupler & hyd cyl

4шт.

479853R91

PACKAGE

remote control hyd cyl stroke stop (1 used per hyd cyl to obtain desired depth), Composed of:

1шт.

479849R91

PACKAGE

STOP

1шт.

643259R91

STOP

1шт.

479850R91

PACKAGE

STOP

1шт.

643260R91

PACKAGE

STOP

1шт.
