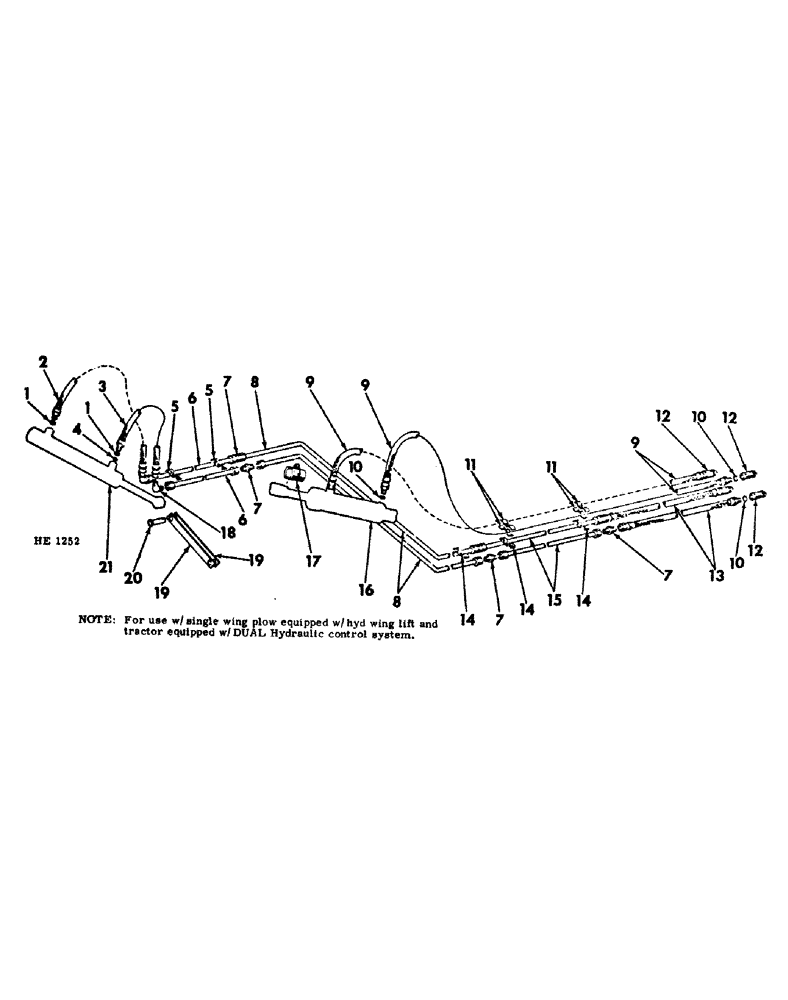

Запчасти Case IH 55 (13-12) - HYDRAULIC WING LIFT ATTACHMENT

1

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

wing lift hyd cyl hose

2шт.

2

811907C91

HOSE, wing lift hyd cyl return

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

HYD CYL HOSE O-RING

1шт.

3

811908C91

HOSE, wing lift hyd cyl pressure

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

HYD CYL HOSE O-RING

1шт.

4

811912C1

WASHER

pressure retarder disk

1шт.

5

588322R2

CLAMP, hyd tube

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4 X 2" BOLT

2шт.

21784R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

811875C11

TUBE,1" OD, 40" Length

wing lift rear hyd

2шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

tractor hoses to tubes

6шт.

8

811874C11

TUBE

wing lift front hyd

2шт.

9

372570R91

HOSE ASSY.

HOSE, 1/2 x 152" coupler hyd cyl (Recommended hyd parts)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HYD HOSE O-RING

4шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

coupler & hyd cyl (Recommended hyd parts)

6шт.

11

317054R1

CLAMP

hyd hose

4шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4 X 2" BOLT

2шт.

21784R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

395149R1

QUICK MALE COUPLING

COUPLER, hose male tractor (Recommended hyd parts)

4шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HOSE COUPLER O-RING

4шт.

13

599679R1

HOSE

1/2 x 60" tractor coupler to machine union hyd (Recommended hyd parts)

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HYD HOSE O-RING

2шт.

14

588322R2

CLAMP, front & rear hyd tube

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Front tube) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Rear tube) Hex, 1/4"-20 x 1", G5

2шт.

21784R1

WASHER

17/64 X 1/2 X 16 GA WASHER

1шт.

20600R1

WASHER

9/32 X 3/4 X 11 GA WASHER

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(Rear clamps) 1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

811873C1

TUBE, front hyd

2шт.

16

388688R91

CYLINDER, remote control 4 x 8 stroke hyd (Recommended hyd parts) (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 13 of this parts catalog)

1шт.

17

479853R91

PACKAGE

remote control hyd cyl stroke stop (1 used per hyd cyl to obtain desired depth) (Recommendation hyd parts), Composed of:

1шт.

479849R91

PACKAGE

STOP

1шт.

643259R91

STOP

1шт.

479850R91

PACKAGE

STOP

1шт.

643260R91

PACKAGE

STOP

1шт.

17

479849R91

PACKAGE

STOP, remote control hyd cyl 1/2"

1шт.

17

643259R91

STOP

remote control hyd cyl 3/4"

1шт.

17

479850R91

PACKAGE

STOP, remote control hyd cyl 1"

1шт.

17

643260R91

PACKAGE

STOP, remote control hyd cyl 1-1/2"

1шт.

17

643261R91

STOP

remote control hyd cyl 3"

1шт.

17

643262R91

STOP

remote control hyd cyl 3-1/2"

1шт.

17

959999R91

STOP

remote control hyd cyl 5"

1шт.

18

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2"-90 degree tube to cyl hose

2шт.

19

811852C1

BAR

hyd cyl connecting

2шт.

20

936587R91

PIN

connecting bar & hyd cyl mounting

3шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

3шт.

20885R1

WASHER

1-5/32 X 2 X 16 GA WASHER

2шт.

21

811888C91

CYLINDER

wing lift hyd (For component parts of this assembly refer to "wing lift hydraulic cylinder" in section 13 of this catalog)

1шт.
