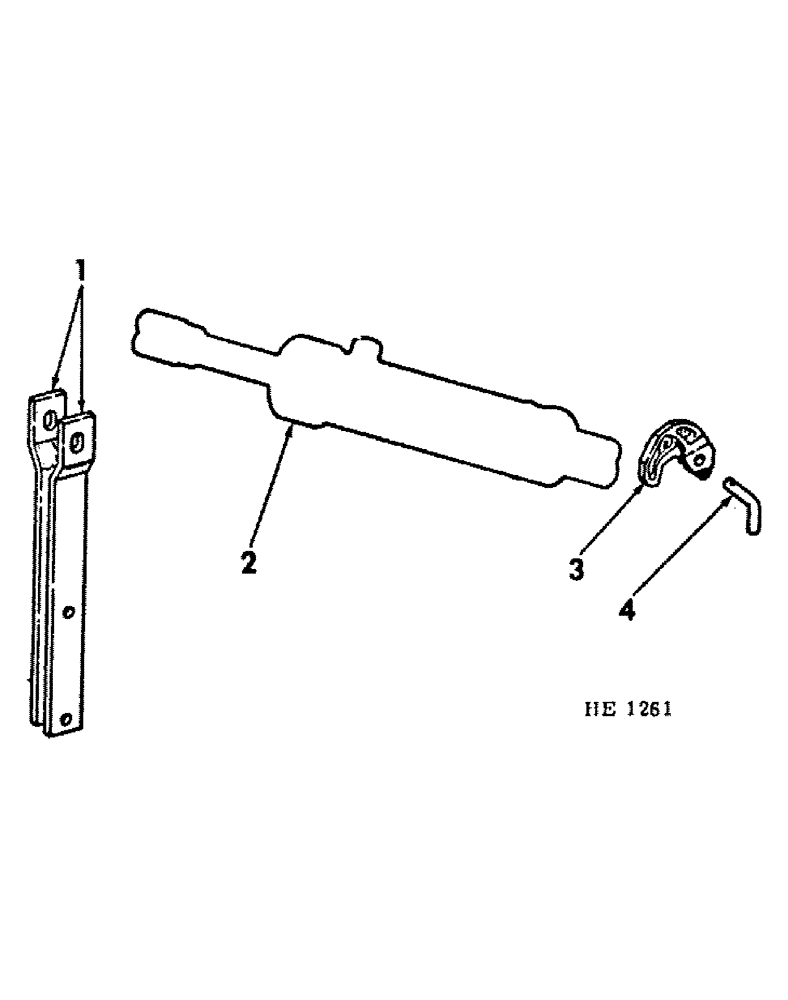

Запчасти Case IH 55 (13-11) - REMOTE CONTROL HYDRAULIC CYLINDER MOUNTING

1

811878C1

STRAP, rockshaft locking

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

2

388688R91

CYLINDER, remote control hyd (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 13 of this catalog)

1шт.

3

526263R1

RETAINER

hyd cyl

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.
