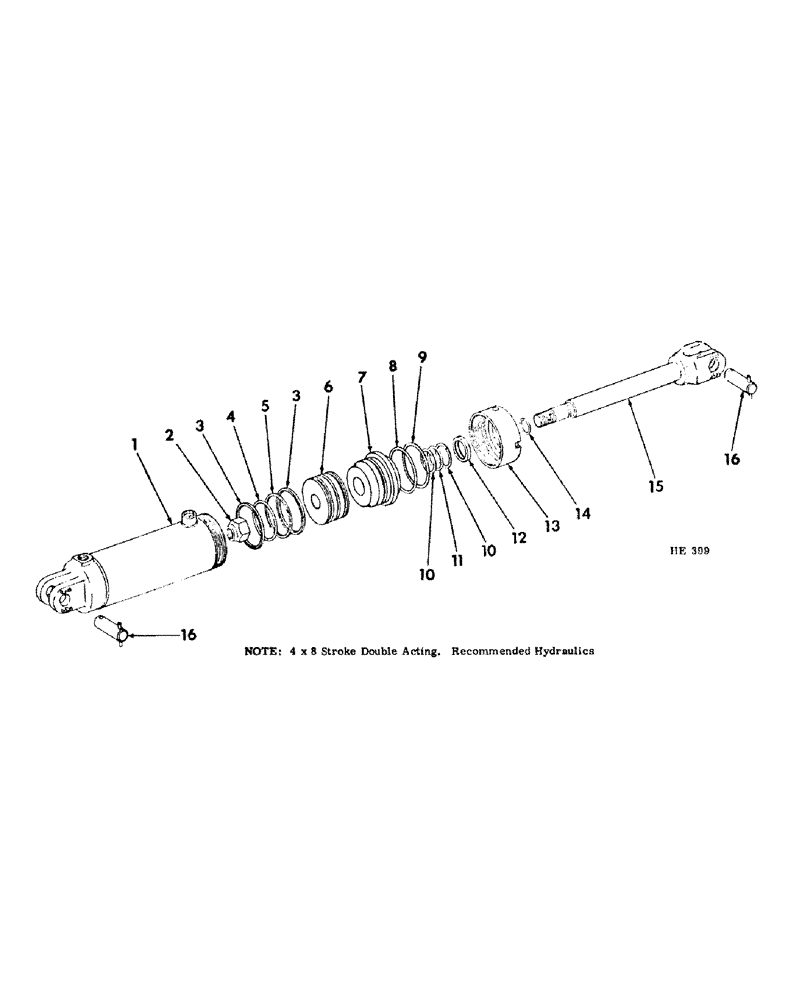

Запчасти Case IH 55 (13-09) - REMOTE CONTROL HYDRAULIC CYLINDER

388688R91

CYLINDER, remote control hyd (Composed of all parts listed below)

1шт.

1

388689R11

BODY, remote control hyd cyl

1шт.

2

20251R1

NUT

hyd cyl piston rod

1шт.

3

383006R1

RING

hyd cyl piston brg

2шт.

4

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11/16 x 3/32" piston rod

1шт.

5

381110R1

RING

SEAL, piston ring

1шт.

6

388694R1

PISTON ASSY.

PISTON, hyd cyl

1шт.

7

388693R1

END

HEAD, hyd cyl front

1шт.

8

374801R1

O-RING, 3-5/8 x 4 x 3/16" front hd

1шт.

9

381107R1

BACK-UP RING

WASHER, front hd back-up

1шт.

10

387362R1

BACK-UP RING

WASHER, piston rod back-up

2шт.

11

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16" piston rod

1шт.

12

403845R1

WIPER SEAL

WIPER, piston rod oil seal

1шт.

13

381111R1

RING

retaining

1шт.

14

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8" piston rod static

1шт.

15

388691R11

ROD

hyd cyl piston

1шт.

16

388695R31

PIN

hyd cyl pivot

2шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

2шт.

388983R91

KIT

PACKAGE, hyd cyl o-ring service, Composed of:

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1шт.

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

1шт.

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

383006R1

RING

2шт.

381110R1

RING

SEAL

1шт.

381107R1

BACK-UP RING

WASHER

1шт.

387362R1

BACK-UP RING

WASHER

2шт.

403845R1

WIPER SEAL

WIPER

1шт.
