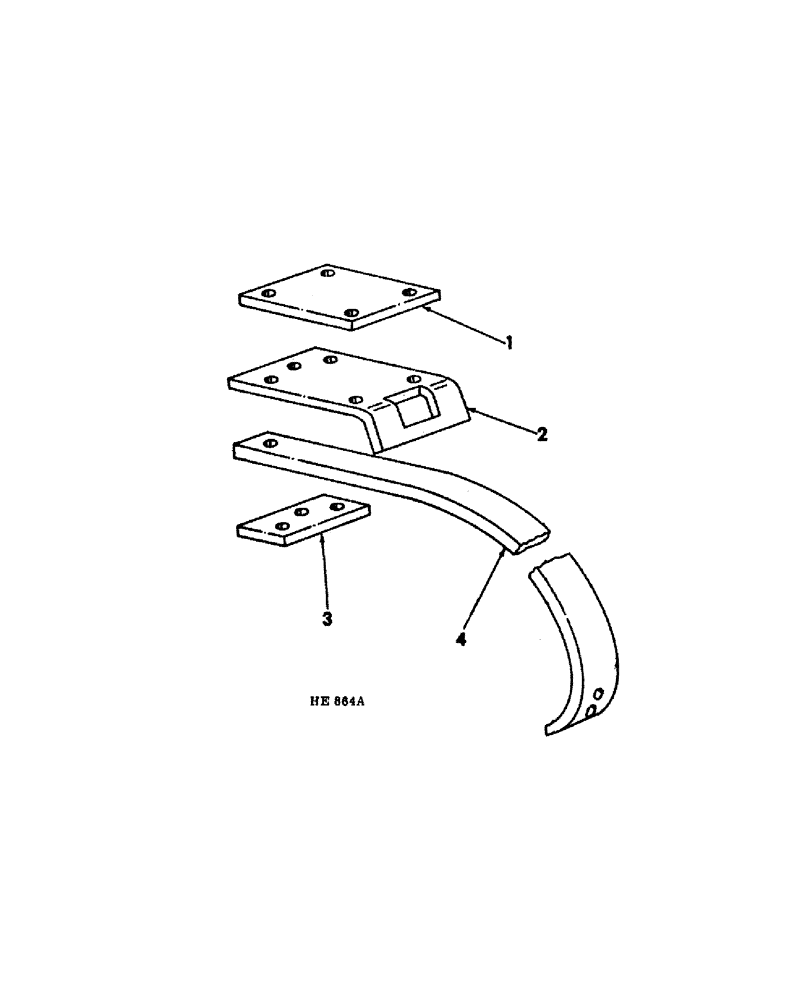

Запчасти Case IH 55 (13-07) - RIGID CLAMP AND SHANK

1

592239R1

BLOCK

clamping bracket

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 X 7-1/2" BOLT (25" trash clearance machines)

2шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 X 8" BOLT (32" trash clearance machines)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

598938R1

BRACKET

shank clamping (25" trash clearance machines)

1шт.

2

609131R1

BRACKET

shank clamping (32" trash clearance machines)

1шт.

3

598937R1

BAR

clamping bracket

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 X 3" BOLT (25" trash clearance)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

4

598939R1

FINGER

SHANK, ground working tool (25" trash clearance machines)

1шт.

4

609130R1

SHANK

ground working tool (32" trash clearance machines)

1шт.
