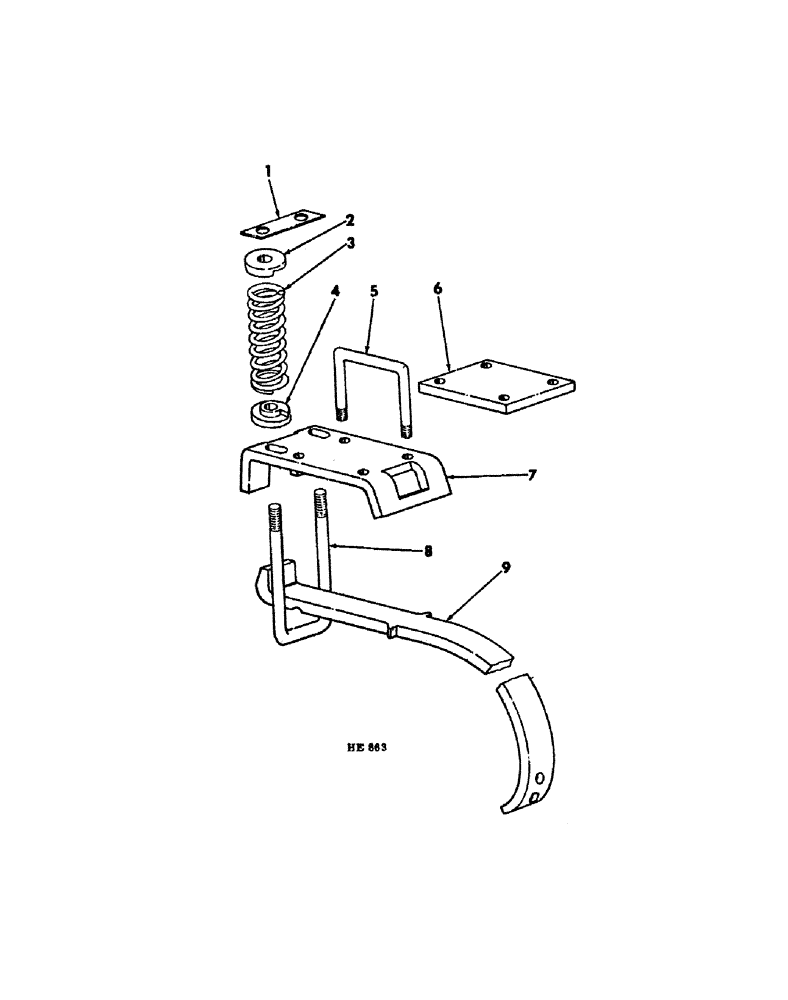

Запчасти Case IH 55 (13-06) - CUSHION CLAMP & SHANK

1

591755R1

STRIP

BAR, trip spg tie

1шт.

2

608348R1

RETAINER

trip spg upper

2шт.

3

608347R1

SPRING

shank trip (25" trash clearance machines)

2шт.

3

609133R1

VALVE SPRING

SPRING, shank trip (32" trash clearance machines)

2шт.

4

608349R21

RETAINER

PACKAGE, trip spg lower seat service

1шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

clamping bracket (25" trash clearance machines)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

592239R1

BLOCK

shank clamping (32" trash clearance machines)

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

7

608346R1

BRACKET

shank clamping (25" trash clearance machines)

1шт.

7

609131R1

BRACKET

shank clamping (32" trash clearance machines)

1шт.

8

602331R1

BOLT,U, 3/4" - 10 x 13.20"

U-BOLT, trip spg (25" trash clearance machines)

1шт.

280954

NUT,3/4"-10, G5

2шт.

8

609132R1

U-BOLT,U, 3/4" - 10 x 14.6"

trip spg (32" trash clearance machines)

1шт.

280954

NUT,3/4"-10, G5

2шт.

9

608341R1

SHANK

ground working tool (25" trash clearance machines)

1шт.

9

609130R1

SHANK

ground working tool (32" trash clearance machines)

1шт.
