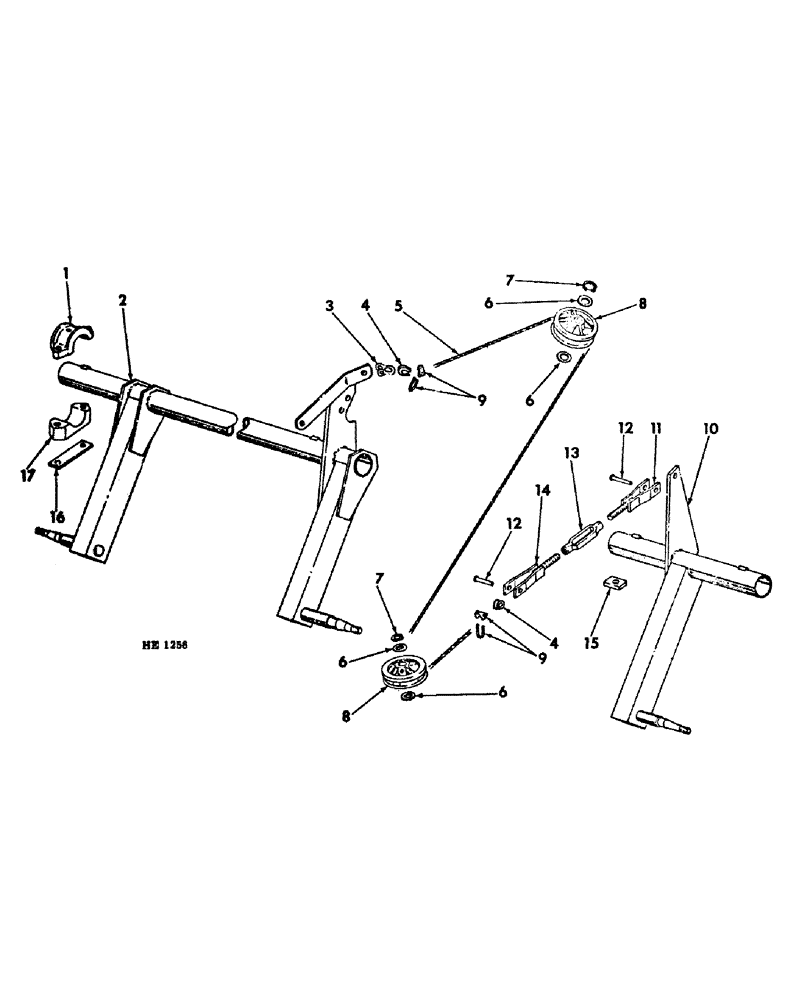

Запчасти Case IH 55 (13-04) - ROCKSHAFT

1

605664R1

CAP

main frame rockshaft brg upper

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 X 11" PLAIN BOLT

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4 X 14" PLAIN BOLT

2шт.

280954

NUT,3/4"-10, G5

4шт.

1

605664R1

CAP

wing frame rockshaft brg upper

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 X 11" PLAIN BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

811899C11

ROCKSHAFT, main frame (25" regular clearance), composed of:

1шт.

619373R1

WASHER

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

467750R1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

NSS

NOT SOLD SEPARAT

ROCKSHAFT

1шт.

2

811901C11

ROCKSHAFT, main frame (32" high clearance), Composed of:

1шт.

619373R1

WASHER

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

467750R1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

NSS

NOT SOLD SEPARAT

ROCKSHAFT

1шт.

3

605535R91

SHACKLE

lift cable

1шт.

4

605826R1

EYE

THIMBLE, lift cable

2шт.

5

811818C1

CABLE, rockshaft lift

1шт.

6

608085R1

WASHER

1-13/32 x 2 x 16 ga

4шт.

7

659380R1

SNAP RING,#137, Ext

Ring, Snap, , pulley #137, Ext

2шт.

8

605657R1

PULLEY

lift cable

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

605827R91

CLIP

CLAMP, lift cable

6шт.

10

811900C11

ROCKSHAFT, wing frame (25" regular clearance), Composed of:

1шт.

467750R1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

NSS

NOT SOLD SEPARAT

ROCKSHAFT

1шт.

10

811902C11

ROCKSHAFT, wing frame (32" high clearance), Composed of:

1шт.

467750R1

WASHER

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

NSS

NOT SOLD SEPARAT

ROCKSHAFT

1шт.

11

592365R91

ROD

YOKE, lift cable

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

12

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2" std-hd-dld cable yoke

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

13

2193

TURNBUCKLE

lift cable yoke

1шт.

14

592366R91

ROD

YOKE, lift cable

1шт.

H2808

HEADED PIN,5/8" x 2"

5/8 X 2" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

15

811897C1

BAR

wing frame short spacer

1шт.

16

811861C1

BAR

rockshaft spacer

4шт.

17

811856C1

CAP

main frame rockshaft lower

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 X 11" PLAIN BOLT

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4 X 14" PLAIN BOLT

2шт.

280954

NUT,3/4"-10, G5

4шт.

17

811856C1

CAP

wing frame rockshaft lower

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 X 11" PLAIN BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.
