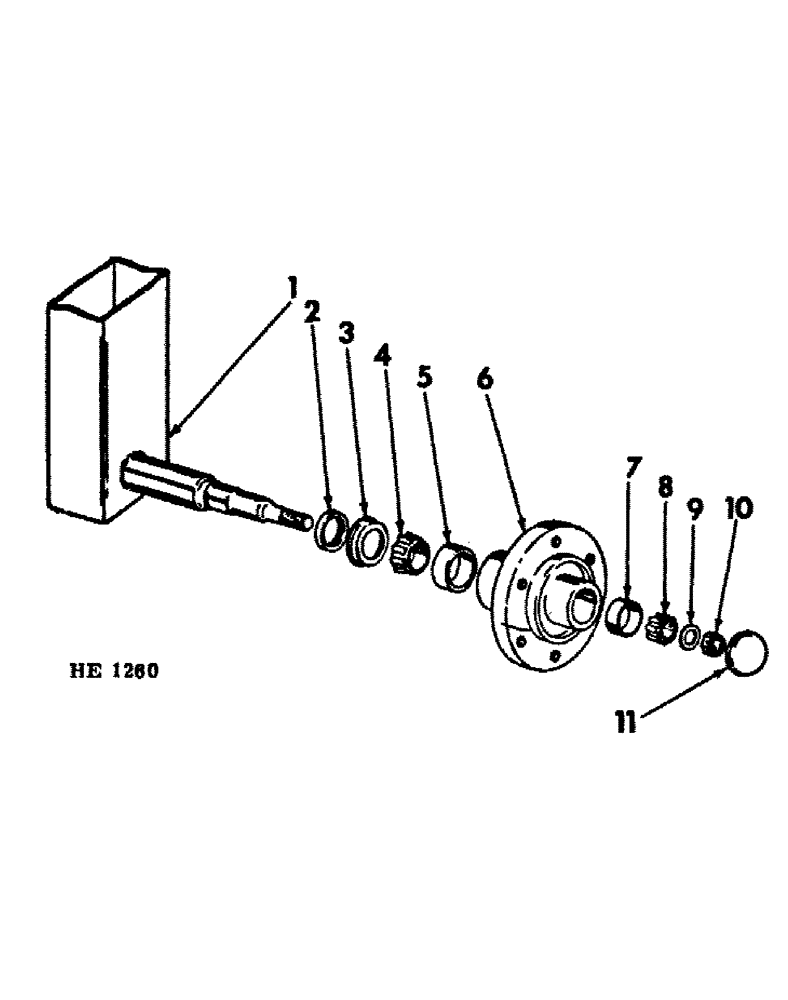

Запчасти Case IH 55 (13-03) - OUTER WHEEL AXLE & HUB

1

ROCKSHAFT, main frame or wing frame for 25" or 32" clearance (For outer wheels) (For component parts of these assemblies refer to "rockshaft" in section 13 of this catalog)

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner brg

2шт.

5

651817R1

BEARING CUP

CUP, wheel hub inner brg

2шт.

6

810087C1

HUB

outer wheel axle

2шт.

7

651814R1

BEARING CUP

CUP, wheel hub outer brg

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer brg

2шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

467750R1

WASHER

25/32 x 1-1/2 x 11 ga axle spindle

4шт.

10

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" hex-sltd

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

11

602959R1

PLUG

CAP, wheel hub outer

2шт.
