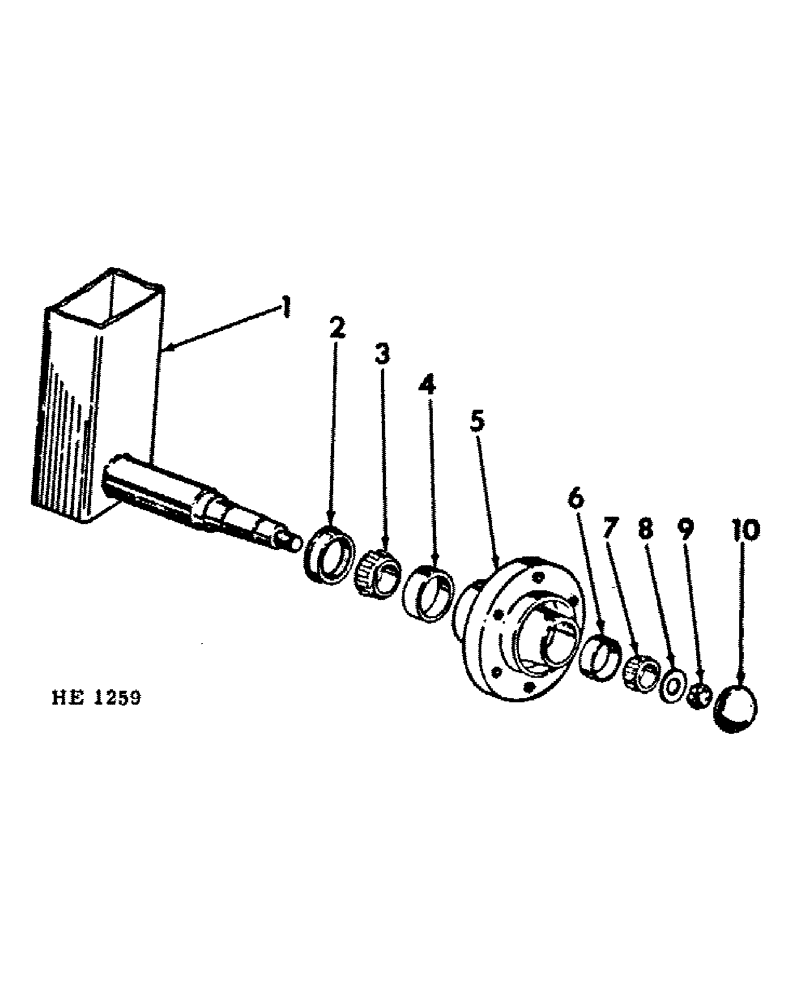

Запчасти Case IH 55 (13-03[A]) - CENTRE WHEEL AXLE & HUB

1

ROCKSHAFT, main frame for 25" or 32" clearance (For centre wheel) (For component parts of this assembly refer to "rockshaft" in section 13 of this catalog)

1шт.

2

606556R91

OIL SEAL

SEAL, wheel hub oil (Opt w/594704R91, seal)

1шт.

2

594704R91

OIL SEAL

SEAL, wheel hub oil (Opt w/606556R91, seal)

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner brg

1шт.

4

663558R1

BEARING CUP

CUP, wheel hub inner brg

1шт.

5

606468R11

HUB

centre wheel axle (Includes 1 - 663558R1, cup & 1 - 651817R1, cup)

1шт.

6

651817R1

BEARING CUP

CUP, wheel hub outer brg

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer brg

1шт.

8

619373R1

WASHER

29/32 x 2 x 7 ga axle spindle

1шт.

9

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8" slt-hex

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

10

663906R1

CAP

wheel hub

1шт.
