Запчасти Case IH 55 (13-02) - FRAME AND TRACTOR HITCH

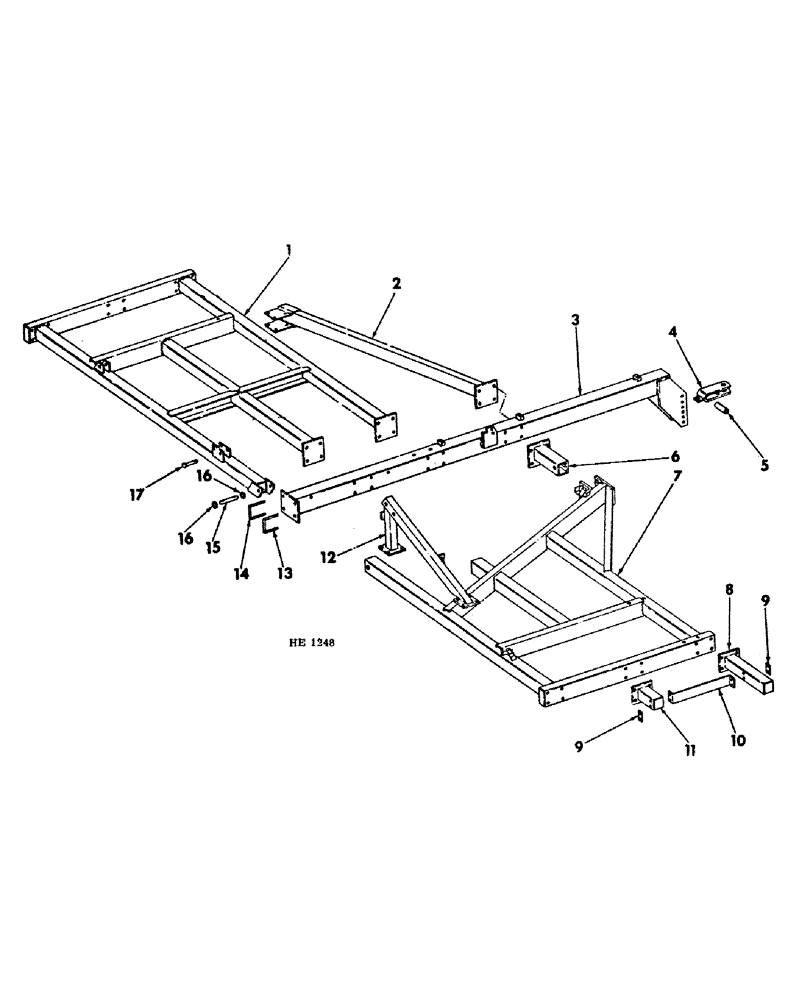

Схема запчастей Case IH 55 - (13-02) - FRAME AND TRACTOR HITCH

Артикул

Название

Примечание

Количество

1

811801C1

FRAME, main

1шт.

2

811870C1

BRACE

hitch diagonal

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

7шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

7шт.

3

811811C1

TRAILER HITCH

HITCH, single wing tractor

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 X 5-1/2" BOLT

7шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

4

811845C1

CLEVIS, tractor hitch

1шт.

25745R1

1 X 7" DLD BOLT

1шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

5

811891C1

SPACER

hitch clevis

1шт.

6

811895C1

TUBE

hitch connection

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

7

811807C1

FRAME, wing

1шт.

8

608332R91

EXTENSION

frame long

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" TYPE 5 CRG BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

9

608339R1

BLOCK

BAR, extension clamping

2шт.

18728R1

5/8 X 6" TYPE 1 CRG BOLT Short NK, 5/8"-11 x 6", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

608338R1

STRAP

extension connecting

1шт.

18728R1

5/8 X 6" TYPE 1 CRG BOLT Short NK, 5/8"-11 x 6", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

608331R91

EXTENSION

frame short

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 X 3-1/4" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

811825C1

FRAME

wing lift

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

8шт.

13

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hitch rear support

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

608528R1

BOLT,U, 5/8" - 11 x 5.75"

U-BOLT, hitch rear support

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

811824C1

PIN

wing frame hinge

2шт.

21226R1

WASHER

1-9/32 X 2 X 11 GA WASHER

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

16

21226R1

WASHER

1-9/32 x 2 x 11 ga hinge pin

4шт.

17

594608R1

PIN

1-1/8 x 4-3/4" std-hd-dld frame lift locking

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

Выбрано товаров: 46
