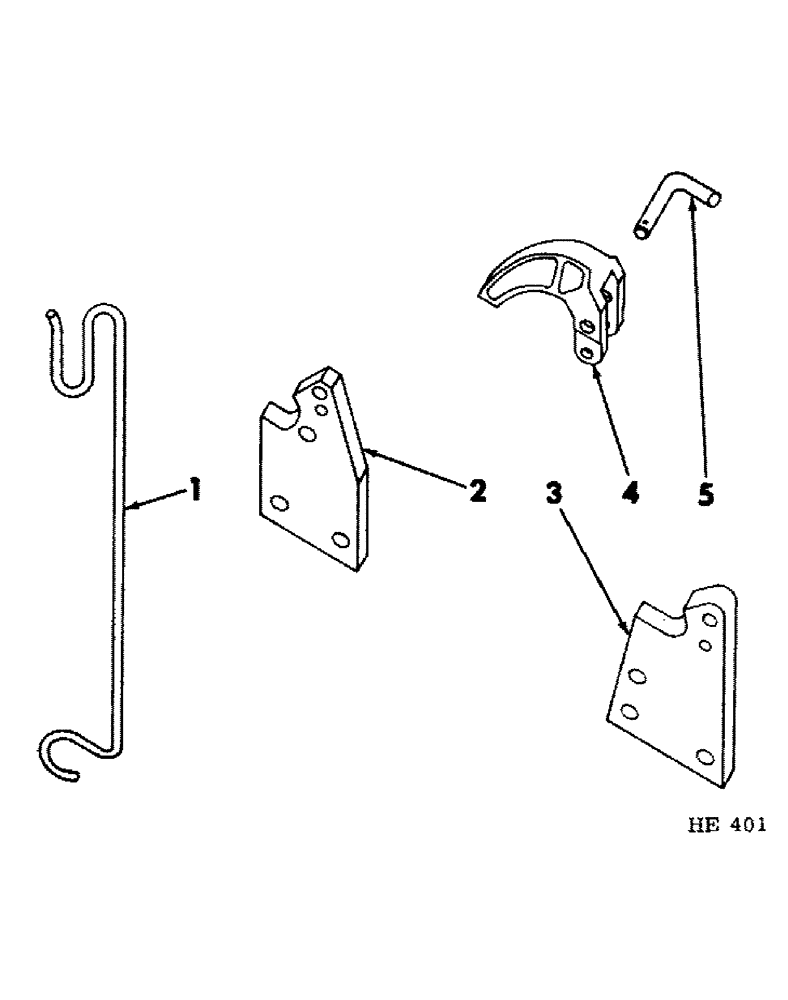

Запчасти Case IH 55 (12-38) - HYDRAULIC MOUNTING PARTS (REMOTE CONTROL HYDRAULIC CYLINDER), SERVICE PACKAGE

1

651793R1

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA C-Z WASHER

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

597336R1

BRACKET, hyd cyl mounting (22 ft machine)

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

3шт.

551658R1

WASHER

25/32 X 1-1/4 X 22 GA WASHER

4шт.

3

597337R1

BRACKET, hyd cyl mounting (25 ft machine)

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 X 2-3/4" TYPE 2 C-Z BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

4

526263R1

RETAINER

hyd cyl

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

598860R91

PACKAGE, diverter field conversion, Composed of:

1шт.

598252R1

BAR

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

1шт.

9402683

CONNECTOR, ELEC

CONNECTOR

1шт.

598253R1

TUBE 1" OD, 10.5" Length

1шт.

598157R91

VALVE

1шт.

NSS

NOT SOLD SEPARAT

PAMPHLET

1шт.
