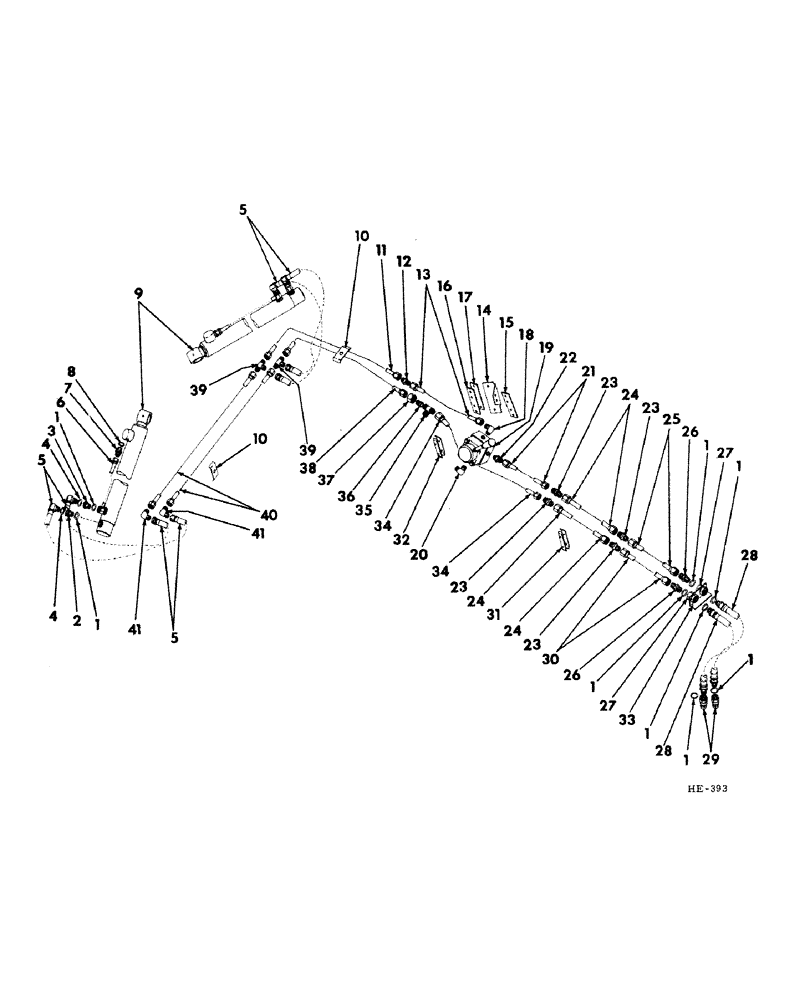

Запчасти Case IH 55 (12-36) - WING LIFT HYDRAULICS (1968 & SINCE), (WHEN TRACTOR EQUIPPED

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd fittings & tubes

10шт.

2

598493R1

UNION, high pressure reducer

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

2шт.

3

407044R1

UNION

hyd lift cyl return

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder return & pressure hoses

4шт.

5

390812R91

HOSE ASSY.

HOSE, hyd cyl return & pressure 25" length

4шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose hyd

4шт.

6

386886R11

TUBE, hyd cyl lift return

2шт.

7

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, short swivel

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SWIVEL CONNECTOR "O" RING

2шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING, hyd cyl connector

2шт.

9

384474R92

CYLINDER

wing lift hyd (For component parts refer to "wing lift hydraulic cylinder")

2шт.

10

614323R2

CLAMP

hyd tube

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

614323R2

CLAMP

hyd tube (3 used on 22 ft machine) (4 used on 25 & 31 ft machine)

1шт.

180021

SPRING

1/4 X 7/8" TYPE 2 C-Z BOLT (1 per clamp)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

11

597418R1

TUBE, hyd return intermediate rear

1шт.

12

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

rear return tube intermediate

1шт.

13

598256R1

TUBE, hyd return intermediate center 0.375" OD, 48, 1.75" Length

1шт.

14

598252R1

BAR, hyd diverter valve mounting

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 X 4" TYPE 2 C-Z BOLT (22 ft machine)

2шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 X 5" TYPE 2 C-Z BOLT (25 & 31 ft machine)

2шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

15

597416R1

BAR, hyd diverter valve clamping

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 X 4" TYPE 2 C-Z BOLT (22 ft machine)

2шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 X 5" TYPE 2 C-Z BOLT (25 & 31 ft machine)

2шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

16

597415R1

BAR, hyd tube clamping

1шт.

17

597416R1

BAR, hyd tube clamping (2 of each used on 22 ft machine) (3 of each used on 25 & 31 ft machine)

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 X 4" TYPE 2 C-Z BOLT (22 ft machine)

4шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 X 5" TYPE 2 C-Z BOLT (25 & 31 ft machine)

6шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

18

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

hyd tube at diverter valve

1шт.

19

598157R91

VALVE, hyd diverter, (For component parts refer to "hydraulic diverter valve") (1968 & since)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

20

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

90 degree high pressure tube (Refer to "rockshaft lift hydraulics") (1968 & since)

1шт.

21

598253R1

TUBE, hyd diverter valve input 1" OD, 10.5" Length

1шт.

22

9402683

CONNECTOR, ELEC

CONNECTOR, hyd tube

1шт.

23

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

hyd tube (2 used on 22 ft machine) (4 used on 25 & 31 ft machine)

1шт.

24

597406R1

TUBE, hyd return & high pressure front extension (25 & 31 ft machine) 1" OD, 38" Length

2шт.

25

597412R1

TUBE, hyd return front

1шт.

26

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, hyd hose reducer adapter

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

2шт.

27

584802R1

CONNECTOR, ELEC

UNION, hyd hose adaptor

2шт.

28

407092R91

HOSE

1/2 x 60" long hyd tractor

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TRACTOR HOSE "O" RING

4шт.

29

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.

30

597405R1

TUBE, hyd high pressure front

1шт.

31

597424R1

CLAMP, hyd tube (2 used on 22 ft machine) (4 used on 25 & 31 ft machine)

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1/4 X 1-1/4" TYPE 2 C-Z BOLT (2-22 ft 4-25 & 31 ft)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

32

598251R1

CLAMP, hyd tube

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1/4 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

597423R1

ANGLE, hyd hose bracket

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA C-Z WASHER

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

597408R1

TUBE, high pressure intermediate front 1" OD, 52, 4.5" Length

1шт.

35

9402982

TEE,3/4"-16, 37 Degree

three-way high pressure

1шт.

36

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

high pressure three-way tee

1шт.

37

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, tee reducer

1шт.

38

597409R1

TUBE, hyd high pressure intermediate rear

1шт.

39

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

three-way return & pressure tube

2шт.

40

597410R1

TUBE, hyd return & high pressure (22 ft machine) 0.375" OD, 59.5" Length

2шт.

40

597411R1

TUBE, hyd return & high pressure (25 & 31 ft machine) 0.375" OD, 95.5, 2" Length

2шт.

41

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

90 degree elbow return & pressure RH hoses

2шт.
