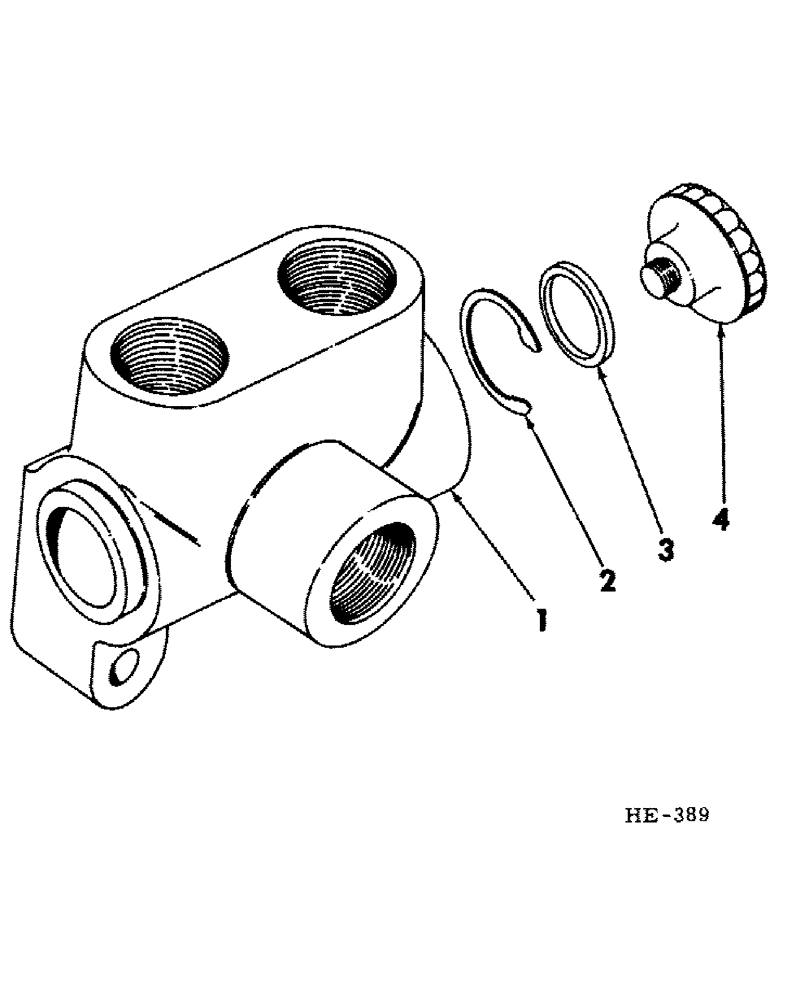

Запчасти Case IH 55 (12-35) - HYDRAULIC DIVERTER VALVE, (TRACTORS W/SINGLE VALVE CONTROL

VALVE, hyd diverter composed of all parts listed below, unless otherwise noted (For service order 1 - 598860R91 diverter field conversion "package")

1шт.

180085

SPRING

5/16 X 1-3/4" TYPE 2 C-Z BOLT

2шт.

Not part of valve

1шт.

120376

NUT,5/16"-18, G5

2шт.

Not part of valve

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, diverter valve (For service order 1 - 598860R91 diverter field conversion "package")

1шт.

2

661652R1

SNAP RING,#75, Ext

Valve #75, Ext

2шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING, diverter valve

2шт.

4

384283R1

KNOB

valve control

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
