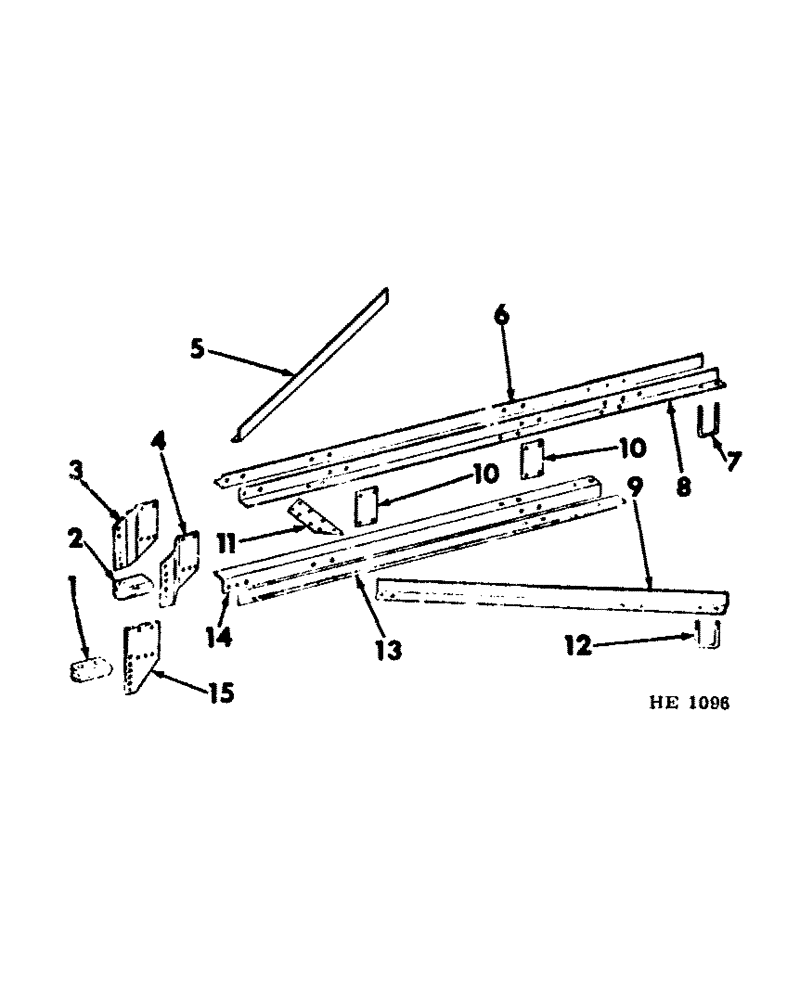

Запчасти Case IH 55 (07-07) - TRACTOR HITCH (TRAIL BEHIND MODEL)

1

601910R3

CLEVIS

hitch (7 ft. model)

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1 X 4-1/2" DLD BOLT

1шт.

23049R1

WASHER

1.031 X 2.500 X .105 WASHER

2шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

608499R21

CLEVIS

standard hitch (10 ft & 10 ft high clearance, 13 ft & 13 ft high clearance)

1шт.

2

605866R91

TOW BAR

CLEVIS ASSY, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1 X 5-1/2" DLD BOLT

1шт.

20704R1

WASHER

1.031 X 1.500 X .105 WASHER

1шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

3

608496R1

ASSEMBLY

PLATE, hitch RH (10 ft & 10 ft high clearance, 13 ft & 13 ft high clearance)

1шт.

4

608495R1

KNIFE SECTION

PLATE, hitch LH (10 ft & 10 ft high clearance, 13 ft & 13 ft high clearance)

1шт.

271931

SPARE PART

3/4 X 2-3/4" BOLT (5 used per plate)

1шт.

280954

NUT,3/4"-10, G5

1 used per bolt 3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 used per bolt

1шт.

5

608296R1

ANGLE

hitch support RH (7 ft model)

1шт.

5

608298R1

ANGLE

hitch support RH (10 ft model)

1шт.

5

812680C1

ANGLE

hitch support RH (10 ft high clearance)

1шт.

5

608300R1

ANGLE

hitch support RH (13 ft model)

1шт.

5

609126R1

ANGLE

hitch support RH (13 ft high clearance)

1шт.

6

608283R2

ANGLE

hitch center upper RH (7 ft model)

1шт.

6

608285R2

ANGLE

hitch center upper RH (10 ft model)

1шт.

6

812682C1

ANGLE

hitch center upper RH (10 ft high clearance model)

1шт.

6

608287R3

ANGLE

hitch center upper RH (13 ft model)

1шт.

6

609122R1

ANGLE

hitch center upper RH (13 ft high clearance model)

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 X 5-1/2" BOLT (4 used per angle)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (1 used per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1 used per bolt) 5/8"

1шт.

7

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hitch center angle clamping (10 ft & 10 ft high clearance)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

608282R2

HITCH ASSY, TRAILER

ANGLE, hitch center upper LH (7 ft model)

1шт.

8

608284R2

ANGLE

hitch center upper LH (10 ft model)

1шт.

8

812681C1

ANGLE

hitch center upper LH (10 ft high clearance model)

1шт.

8

608286R3

ANGLE

hitch center upper LH (13 ft model)

1шт.

8

609121R1

ANGLE

hitch center upper LH (13 ft high clearance model)

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 X 5-1/2" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

608295R1

ANGLE

hitch support LH (7 ft model)

1шт.

9

608297R1

ANGLE

hitch support LH (10 ft model)

1шт.

9

812689C1

ANGLE, hitch support LH (10 ft high clearance model)

1шт.

9

608299R1

ANGLE

hitch support LH (13 ft model)

1шт.

9

609125R1

ANGLE

hitch support LH (13 ft high clearance model)

1шт.

10

594853R1

BLOCK

BAR, hitch tie (13 ft model)

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4" BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

608280R1

BAR

hitch angle connecting (10 ft & 10 ft high clearance model)

1шт.

11

608281R2

BAR

hitch angle connecting (7 ft; 13 ft & 13 ft high clearance models)

1шт.

NLS

NO LONGER SERVICED

5/8 X 1-1/2" BOLT (3 used per bar)

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT (4 used per bar)

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 X 2-1/4" BOLT (1 used per bar)

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WAHSER (1 used per bolt)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (1 used per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1 used per bolt) 5/8"

1шт.

12

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

hitch support angle (2 used 7 ft model) (4 used 10 ft & 10 ft high clearance, 13 ft & 13 ft high clearance models)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (2 used per u-bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 used per u-bolt) 5/8"

1шт.

13

608288R2

ANGLE

hitch center lower LH (7 ft model)

1шт.

13

608290R2

ANGLE

hitch center lower LH (10 ft model)

1шт.

13

812683C1

ANGLE

hitch center lower LH (10 ft high clearance model)

1шт.

13

608292R3

ANGLE

hitch center lower LH (13 ft model)

1шт.

609123R1

ANGLE

hitch center lower LH (13 ft high clearance model)

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 X 5-1/2" BOLT (4 used per angle)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (1 used per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1 used per bolt) 5/8"

1шт.

14

608289R2

ANGLE

hitch center lower RH (7 ft model)

1шт.

14

608291R2

ANGLE

hitch center lower RH (10 ft model)

1шт.

14

812684C1

ANGLE

hitch center lower RH (10 ft high clearance model)

1шт.

14

608293R3

ANGLE

hitch center lower RH (13 ft model)

1шт.

14

609124R1

ANGLE

hitch center lower RH (13 ft high clearance model)

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 X 5-1/2" BOLT (4 used per angle)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (1 used per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1 used per bolt) 5/8"

1шт.

15

608279R1

PLATE

hitch (7 ft model)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

5шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.
