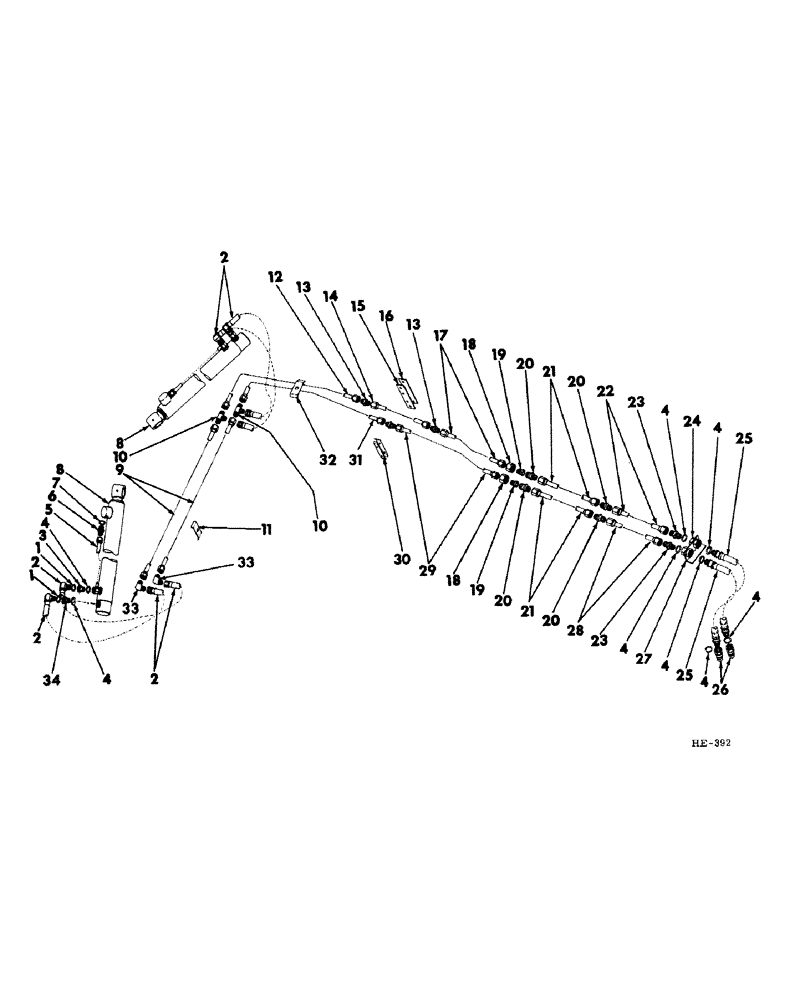

Запчасти Case IH 55 (12-32) - WING LIFT HYDRAULICS

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder return & pressure hoses

4шт.

2

390812R1

HOSE, hyd cyl return & pressure 25" in length

4шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, return & pressure

4шт.

3

407044R1

UNION

hyd lift cyl return reducer

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd fittings & tubes

10шт.

5

386886R11

TUBE, hyd cyl lift return

2шт.

6

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, short swivel

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SWIVEL CONNECTOR "O" RING

2шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING, hyd cyl connector

2шт.

8

384474R92

CYLINDER

wing lift hyd (For component parts refer to "wing lift hydraulic cylinder")

2шт.

9

597410R1

TUBE, hyd return & high pressure (22 ft machine) 0.375" OD, 59.5" Length

2шт.

9

597411R1

TUBE, hyd return & high pressure (25 & 31 ft machine) 0.375" OD, 95.5, 2" Length

2шт.

10

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

three-way return & pressure tube

2шт.

11

614323R1

CLAMP

hyd rear tubes

1шт.

180021

SPRING

1/4 X 7/8" TYPE 2 C-Z BOLT

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

597418R1

TUBE, hyd return intermediate rear

1шт.

13

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

rear return & high pressure intermediate & center

3шт.

14

597417R1

TUBE, hyd return intermediate center 0.375" OD, 46.25, 1.75" Length

1шт.

15

597415R1

BAR, hyd tube clamping

1шт.

16

597416R1

BAR, hyd tube clamping (2 of each used on 22 ft machine) (3 of each used on 25 & 31 ft machine)

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16 X 4" TYPE 2 C-Z BOLT (4-22 ft machine)

1шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16 X 5" TYPE 2 C-Z BOLT (6-25 ft & 31 ft machine)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

17

597413R1

TUBE, return intermediate front 0.375" OD, 11.75, 1.7" Length

1шт.

18

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, hyd tube reducer

2шт.

19

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

hyd tube

2шт.

20

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

extension tube (2 used on 22 ft machine) (4 used on 25 & 31 ft machine)

1шт.

21

597406R1

TUBE, hyd return & high pressure front extension (25 & 31 ft machine) 1" OD, 38" Length

2шт.

22

597412R1

TUBE, hyd return front

1шт.

23

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, hyd hose reducer adapter

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

2шт.

24

584802R1

CONNECTOR, ELEC

UNION, hyd hose adapter

2шт.

25

407092R91

HOSE

1/2 x 60" long hyd tractor

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TRACTOR HOSE "O" RING

4шт.

26

395149R1

QUICK MALE COUPLING

COUPLER, hose hyd male

2шт.

27

597423R1

ANGLE, hyd hose bracket

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE C-Z BOLT

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA C-Z WASHER

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

597405R1

TUBE, hyd high pressure front

1шт.

29

597407R1

TUBE, high pressure intermediate front 0.375" OD, 53.75, 4.5" Length

1шт.

30

597424R1

CLAMP, hyd tube (4 used on 22 ft machine) (6 used on 25 & 31 ft machine)

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1/4 X 1-1/4" TYPE 2 C-Z BOLT (1 per clamp)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

31

597409R1

TUBE, hyd high pressure intermediate rear

1шт.

32

614323R2

CLAMP

hyd tube (2 used on 22 ft machine) (3 used on 25 & 31 ft machine)

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 X 7/8" TYPE 2 C-Z BOLT (1 per clamp)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

33

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

90 elbow return & pressure RH hoses

2шт.

34

598493R1

UNION, high pressure hose reduce

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCE UNION "O" RING

2шт.
