Запчасти Case IH 55 (12-31) - WING LIFT HYDRAULIC CYLINDER

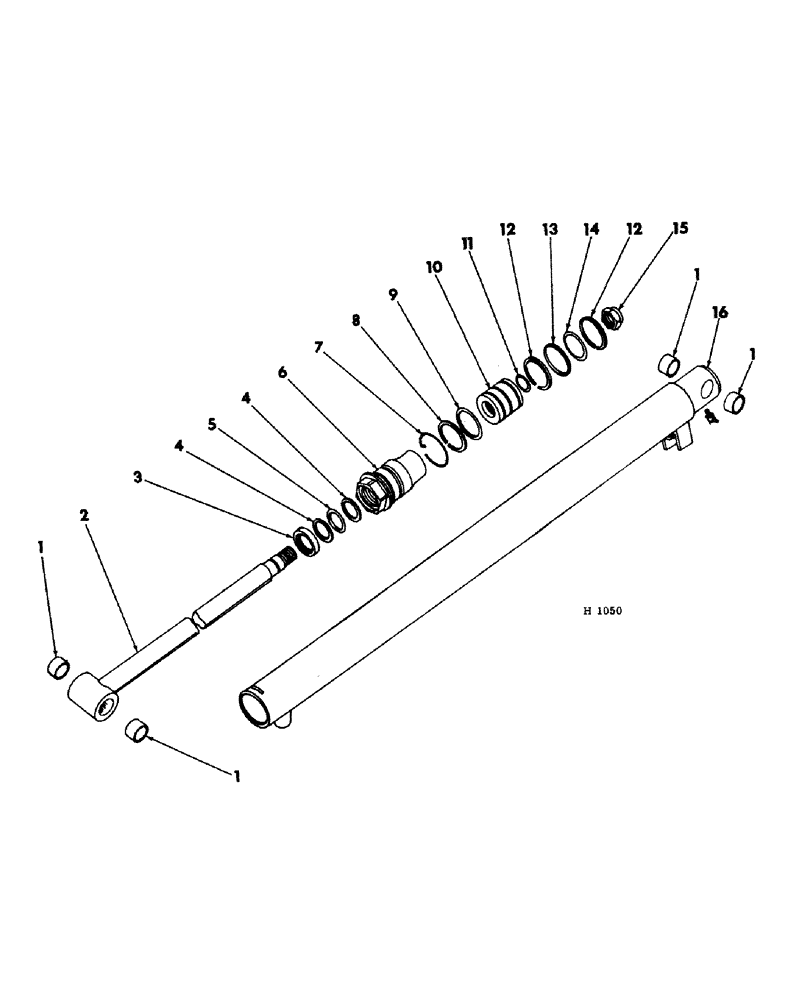

Схема запчастей Case IH 55 - (12-31) - WING LIFT HYDRAULIC CYLINDER

Артикул

Название

Примечание

Количество

384474R92

CYLINDER

wing lift hyd (Composed of all parts listed below)

2шт.

1

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

rod & pipe press

4шт.

2

384127R11

ROD

piston

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1/4" DRIVE-TYPE LUB-FITTING

1шт.

3

378736R91

SEAL

WIPER, rod

1шт.

4

378734R1

BACK-UP RING

WASHER, backup piston rod

2шт.

5

378735R1

O-RING,1.475" ID x 0.21" Width

"O" RING, front head

1шт.

6

378536R2

GUIDE

HEAD, front

1шт.

7

385133R1

RETAINING WIRE

KEY, front head retaining

1шт.

8

378733R1

BACK-UP RING

WASHER, backup

1шт.

9

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

piston

1шт.

10

384129R1

PISTON ASSY.

PISTON, hyd cyl

1шт.

11

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

"O"-RING, piston rod

1шт.

12

379960R1

SEALING RING

BEARING, piston

2шт.

13

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, piston oil

1шт.

14

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

"O" RING, piston

1шт.

15

272676

SPACER

NUT, piston rod lock

1шт.

16

384476R21

BODY

PIPE, hyd cyl

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1/4" DRIVE TYPE LUB-FITTING

1шт.

Выбрано товаров: 19
