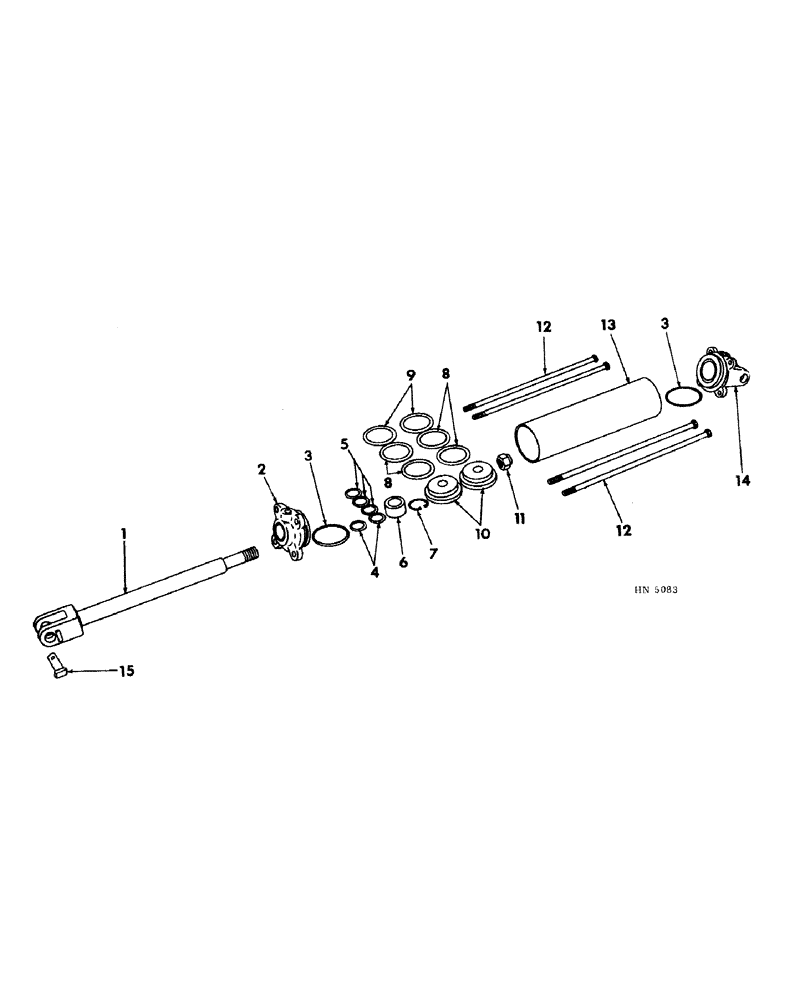

Запчасти Case IH 55 (12-30) - ROCKSHAFT HYDRAULIC CYLINDER (LOW PRESSURE) (25 & 31 FT

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

rockshaft lift 5 x 16" hyd (Composed of all parts listed below)

1шт.

1

959937R91

ROD

hyd cyl piston

1шт.

2

959939R1

HEAD

rod end cylinder

1шт.

3

296967R1

O-RING,-425, 70 Duro, 4.475" ID x .210" Thk

SEAL, "O" ring

2шт.

4

959926R1

SEAL

piston rod dirt & oil

2шт.

5

959927R1

OIL SEAL

piston rod oil

3шт.

6

959929R1

BEARING LINER,1.757" ID x 2.5" OD

piston rod

1шт.

7

959928R1

SNAP RING,2.50", Int, #250

Ring, Snap, , piston rod brg 2.50", Int, #250

1шт.

8

959924R1

SEAL

SEAL, piston

4шт.

9

959925R1

SEAL

flat bottom piston

2шт.

10

959933R1

HEAD

piston

2шт.

11

18489R1

LOCK NUT,1 1/4"-12, GB

NUT, 1/4" piston rod

1шт.

12

959930R2

BOLT,Hex, 5/8" - 11 x 24mm

5/8 x 24" heat treated

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

959934R1

CYLINDER

TUBE, cylinder

1шт.

14

959958R2

HEAD, cylinder anchor end-port, Serial Range: parallel-pin

1шт.

15

959945R93

PIN

cylinder

2шт.

955264R1

PIN

QA C-PIN

2шт.

964134R91

SEAL KIT

SEAL KIT, Composed of:

1шт.

296967R1

O-RING,-425, 70 Duro, 4.475" ID x .210" Thk

2шт.

959924R1

SEAL

SEAL

4шт.

959925R1

SEAL

2шт.

959926R1

SEAL

2шт.

959927R1

OIL SEAL

3шт.
