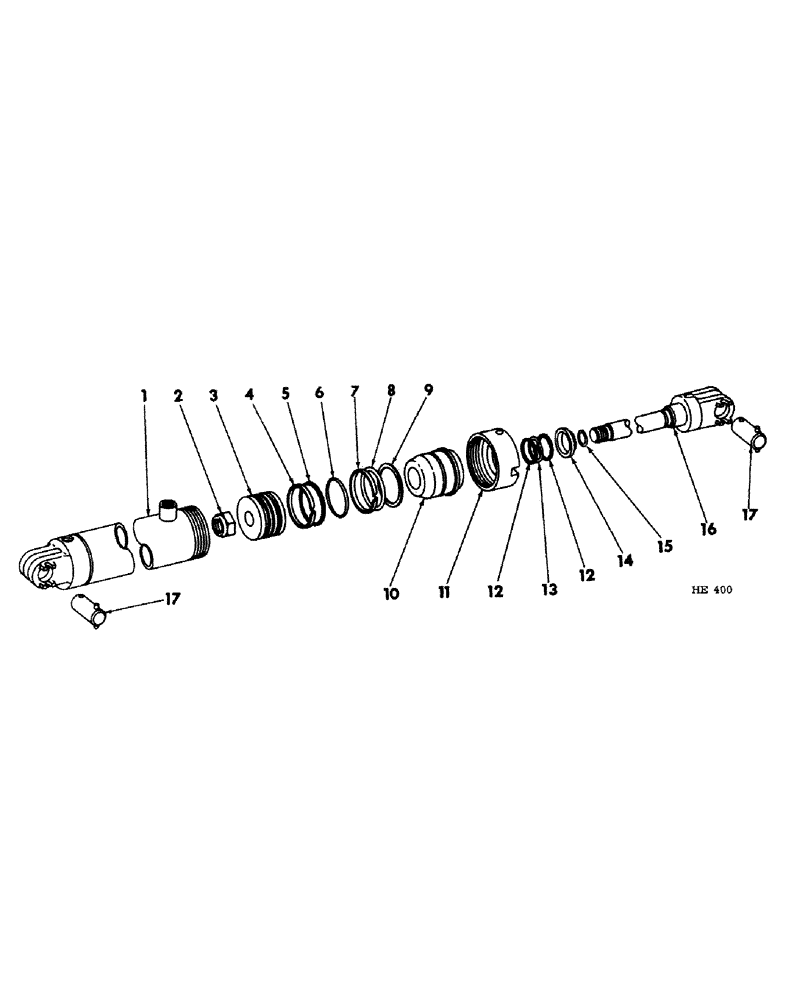

Запчасти Case IH 55 (12-29) - ROCKSHAFT HYDRAULIC CYLINDER (HIGH PRESSURE) (25 & 31 FT

387351R91

CONTROL

CYLINDER, rockshaft lift 3-1/2 x 16" hyd (Composed of all parts listed below)

1шт.

1

387359R11

PIPE, hyd cyl

1шт.

2

20251R1

NUT

piston rod

1шт.

3

387354R1

PISTON

hyd cyl

1шт.

4

383005R1

RING

piston rear brg

1шт.

5

381086R1

RING

SEAL, piston

1шт.

6

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

"O" RING, hyd cyl piston

1шт.

7

381085R1

OIL SEAL

RING, piston front brg

1шт.

8

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

"O" RING, hyd cyl head

1шт.

9

381088R1

BACK-UP RING

front head backup

1шт.

10

387353R1

END

HEAD, hyd cyl front

1шт.

10

1272149C92R

REMAN-HYD CYLINDER

55 MCCORMICK-INTERNATIONAL CHISEL PLOW, HEAD, hyd cyl front, Reman for New PN 387353R1

1шт.

10

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

11

381089R1

RING

retaining

1шт.

12

387362R1

BACK-UP RING

WASHER, piston rod backup

2шт.

13

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

"O" RING, front head

1шт.

14

324581R91

OIL SEAL

SEAL, hyd cyl piston rod

1шт.

15

350818R1

O-RING,0.984" ID x 0.139" Width

"O" RING, piston rod

1шт.

16

387361R11

ROD

hyd cyl piston

1шт.

17

387235R11

PIN

hyd cyl-pivot

2шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

2шт.
