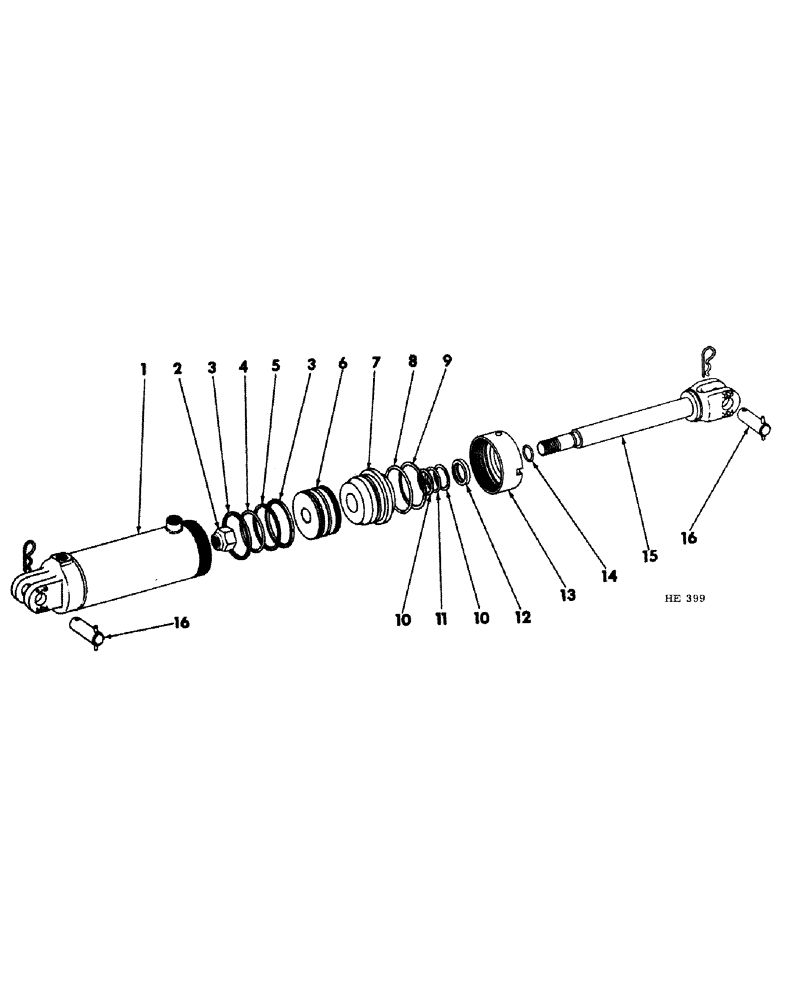

Запчасти Case IH 55 (12-28) - ROCKSHAFT HYDRAULIC CYLINDER (HIGH PRESSURE) (22 FT. MACHINE

388688R91

CYLINDER, rockshaft lift 4 x 8" hyd (Composed of all parts listed below)

1шт.

1

388689R11

BODY, hyd cyl

1шт.

2

20251R1

NUT

piston rod

1шт.

3

383006R1

RING

hyd cyl piston brg

2шт.

4

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

"O" RING, piston seal

1шт.

5

381110R1

RING

piston seal

1шт.

6

388694R1

PISTON ASSY.

PISTON, hyd cyl

1шт.

7

388693R1

END

HEAD, hyd cyl front

1шт.

8

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

"O" RING, front head

1шт.

9

381107R1

BACK-UP RING

WASHER, front head backup

1шт.

10

387362R1

BACK-UP RING

WASHER, piston rod backup

2шт.

11

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

"O" RING, piston rod

1шт.

12

324581R91

OIL SEAL

SEAL, piston rod oil

1шт.

13

381111R1

RING

retaining

1шт.

14

350818R1

O-RING,0.984" ID x 0.139" Width

"O" RING, piston rod static

1шт.

15

388691R11

ROD

hyd cyl piston

1шт.

16

388695R21

PIN, hyd cyl pivot

2шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

2шт.
