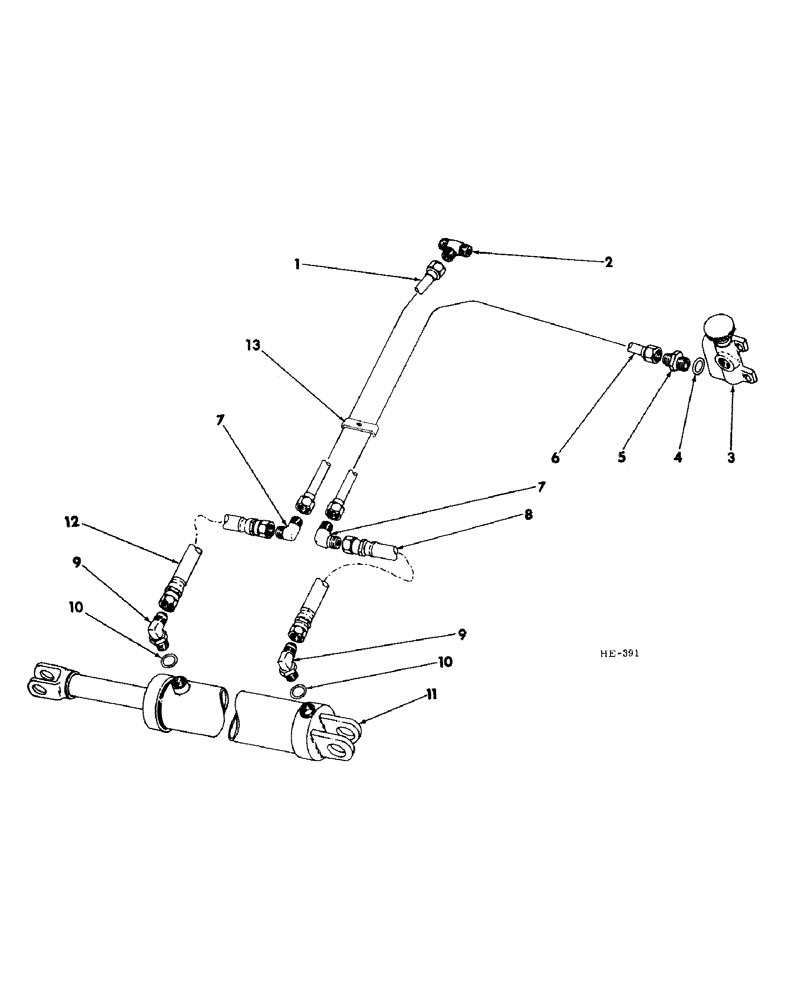

Запчасти Case IH 55 (12-26) - ROCKSHAFT LIFT HYDRAULICS (PRIOR TO 1968)

1

597421R1

TUBE, master cyl return (22 ft machine) 1" OD, 14, 5.5" Length

1шт.

1

597422R1

TUBE, master cyl return (25 ft machine)

1шт.

2

9402982

TEE,3/4"-16, 37 Degree

three way

1шт.

3

VALVE, hyd diverter (Order 1 - 598860R91 conversion package)

1шт.

180085

SPRING

5/16 X 1-3/4" TYPE 2 C-Z BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, reducer union

1шт.

5

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, high pressure tube reducer

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

1шт.

6

597419R1

TUBE, master cyl high pressure (22 ft machine) 1" OD, 20.5, 17.75" Length

1шт.

6

597420R1

TUBE, master cyl high pressure (25 ft machine)

1шт.

7

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 90 degree return & pressure hose elbow

2шт.

8

321321R91

HOSE, rockshaft lift cyl high pressure (22 ft machine)

1шт.

8

675846R91

HOSE ASSY.

HOSE, rockshaft lift cyl high pressure (25 ft machine)

1шт.

9

338768R1

ELBOW UNION,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ELBOW, 90 degree return & pressure hose (For use w/959947R91 cylinder only)

2шт.

9

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

90 degree return & pressure hose

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HOSE ELBOW "O" RING

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hose elbow (For high pressure cylinder)

2шт.

11

388688R91

CYLINDER, 4 x 8" hyd (22 ft machine) (For tractor w/high pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

11

387351R91

CONTROL

CYLINDER, 3-1/2 x 16" hyd (25 ft machine) (For tractors w/high pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

11

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16" hyd (25 ft machine) (For tractors w/low pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

12

675846R91

HOSE ASSY.

HOSE, rockshaft lift cyl return

1шт.

13

614323R2

CLAMP

hyd tube

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
