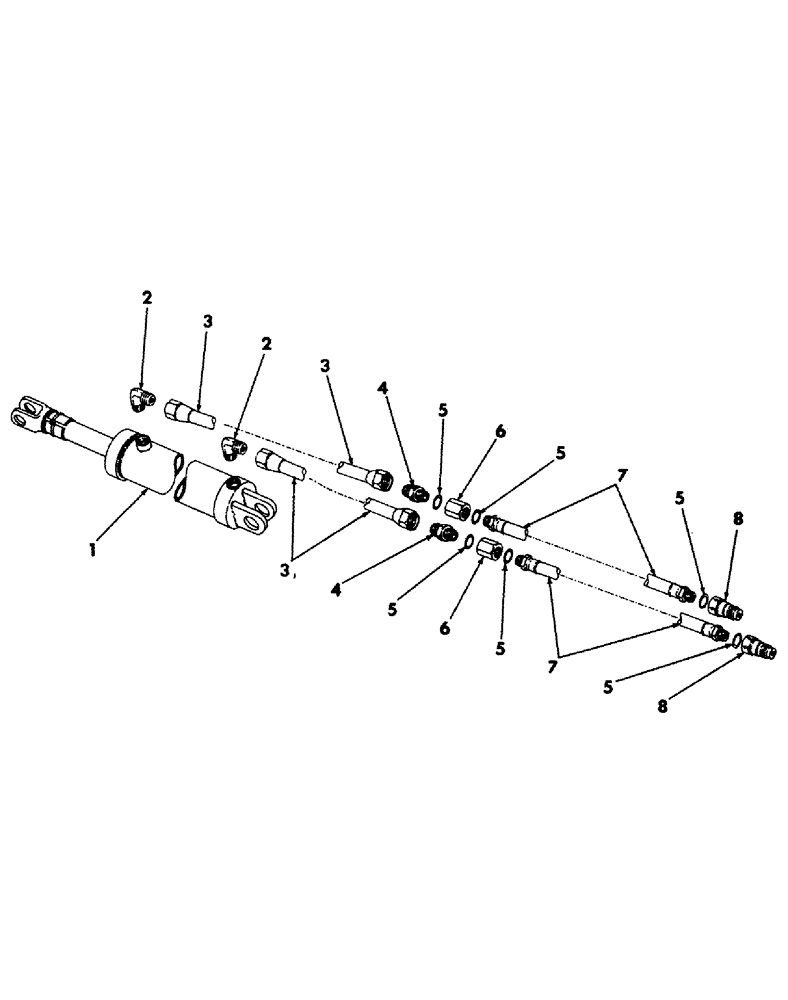

Запчасти Case IH 55 (12-25) - ROCKSHAFT LIFT HYDRAULICS (LOW PRESSURE)

1

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16" hyd (25 & 31 ft machine) (For tractor w/low pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

2

338768R1

ELBOW UNION,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ELBOW, 90 degree hyd hose

2шт.

3

324539R91

HOSE ASSY.

HOSE, hyd cyl rear 1/2 x 112" long

2шт.

4

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

CONNECTOR, hyd hose

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd connector

6шт.

6

584802R1

CONNECTOR, ELEC

UNION, hyd cyl adaptor

2шт.

7

372437R91

HOSE

hyd cyl front 1/2 x 112" long (25 & 31 ft machine)

2шт.

8

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.
