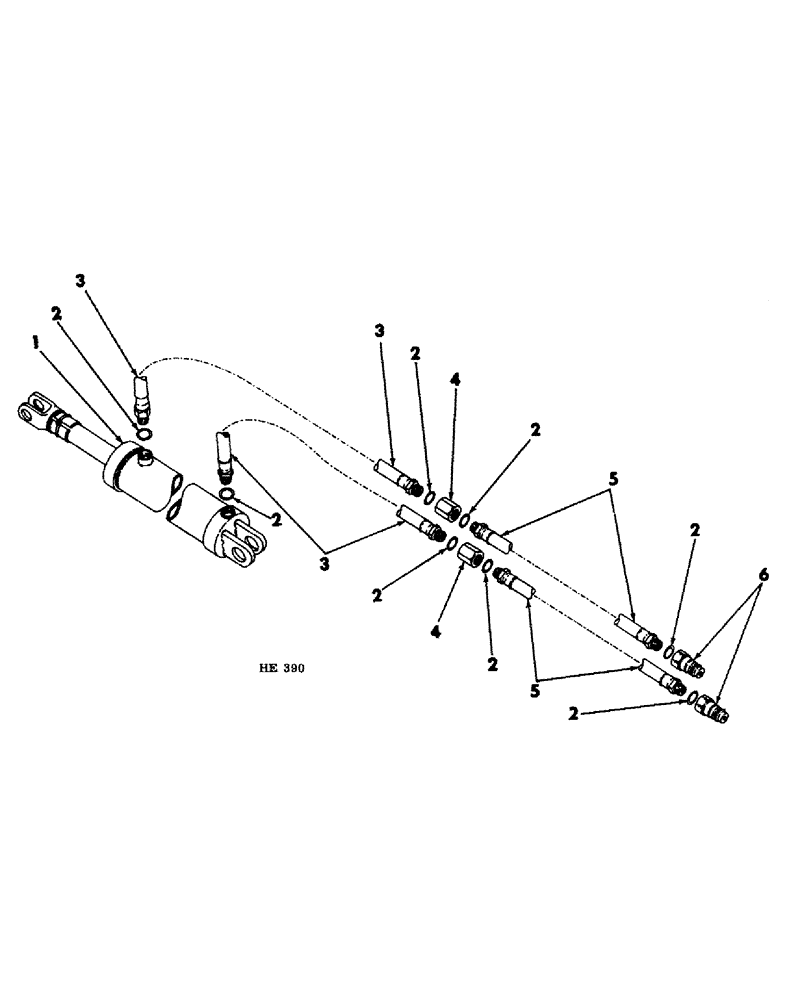

Запчасти Case IH 55 (12-24) - ROCKSHAFT LIFT HYDRAULICS (HIGH PRESSURE)

1

388688R91

CYLINDER, 4 x 8" hyd (22 ft machine) (For tractor w/high pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

1

387351R91

CONTROL

CYLINDER, 3-1/2 x 16" hyd (25 & 31 ft machine) (For tractor w/high pressure hydraulic system) (For component parts refer to "rockshaft hydraulic cylinder")

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd cyl hose

8шт.

3

372437R91

HOSE

hyd cyl rear 1/2 x 112" long (2)

1шт.

4

584802R1

CONNECTOR, ELEC

UNION, hyd cyl adapter

2шт.

5

407093R91

HOSE

hyd cyl front 1/2 x 72" long (22 ft machine)

2шт.

5

372437R91

HOSE

hyd cyl front 1/2 x 112" long (25 & 31 ft machine)

2шт.

6

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.
