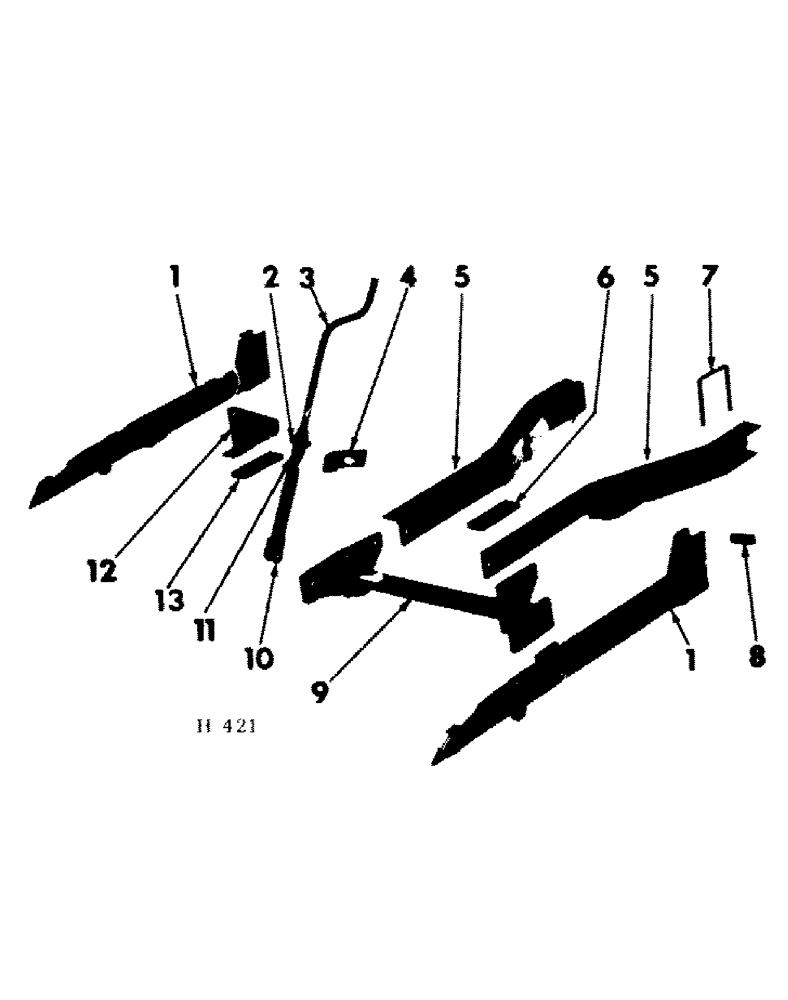

Запчасти Case IH 55 (07-06) - TWO POINT FAST HITCH (7 FT & 11 FT DIRECT MOUNTED MODELS)

1

609886R91

BEAM, coupling LH

1шт.

609891R1

HEADED PIN,1" x 3 1/4"

1 X 3-1/4" STD-HD-DLD PIN

1шт.

21789R1

WASHER

1-1/32 X 1-1/4 X 16 GA. WASHER

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

1

609887R91

BEAM, coupling RH

1шт.

609891R1

HEADED PIN,1" x 3 1/4"

1 X 3-1/4" STD-HD-DLD PIN

1шт.

21789R1

WASHER

1-1/32 X 1-1/4 X 16 GA. WASHER

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

2

9407

TYRE/TIRE

TRUNNION, adjusting crank

1шт.

3

591330R11

CRANK, adjusting

1шт.

112012

1/8 X 1" STRAIGHT PIN

1шт.

4

609892R1

STRAP, adjusting crank hammer

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

609874R91

SUPPORT, main frame LH

1шт.

5

609875R91

SUPPORT, main frame RH

1шт.

6

609878R1

BAR, main frame angle clamping

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

main frame angle

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

609997R1

BAR, coupling beam pivot

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

9

609880R91

ROCKSHAFT, hitch cross

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 X 2" BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

731135R1

NUT, adjusting crank

1шт.

H2808

HEADED PIN,5/8" x 2"

5/8 X 2" STD-HD-DLD PIN

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

11

9408

HYDRAULIC HOSE

COLLAR, adjusting crank stop

1шт.

3397N

5/16 X 1-9/16" STRAIGHT PIN

1шт.

12

609879R1

SUPPORT, adjusting screw

1шт.

21700R1

BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5

3/4 X 6-1/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

13

609878R1

BAR, adjusting screw support

1шт.

21700R1

BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5

3/4 X 6-1/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

608354R91

MOUNTING PARTS

MOUNTING, warning lamp (Composed of all parts listed below)

1шт.
